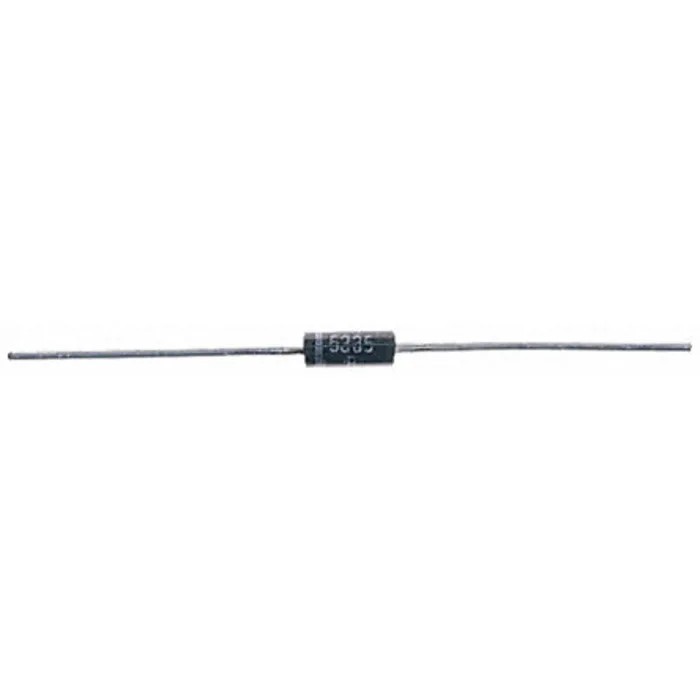

Vishay 200 V 1 A Switching Diode Through Hole DO-204AL Package 1N4942GP-E3/54

Vishay 1N4942GP-E3/54 switching diode is a high-performance semiconductor designed for switching and rectifying applications in electronics and electrical industries. This diode supports a maximum continuous forward current of 1 ampere and withstands a peak reverse repetitive voltage of 200 volts, suitable for various power management and switching requirements.

The device comes in a through-hole DO-204AL package, offering robust mechanical strength and easy mounting on printed circuit boards. It features a low maximum forward voltage of 1.3 volts, enhancing efficiency and reducing power loss during operation.

It exhibits a peak reverse current of only 1 microampere, ensuring minimal leakage and high reliability. The diode's fast recovery time of 150 nanoseconds facilitates rapid switching, making it ideal for use in power supplies, converters, and industrial control circuits.

Operating across a broad temperature spectrum from -65°C to 175°C, this component suits demanding environments including industrial, manufacturing, laboratory, and HVAC applications. The peak non-repetitive forward surge current rating of 25 amperes protects the diode from short transient surges, contributing to better durability.

Compact physical dimensions with a length of 5.2 mm and a diameter, width, and height of 2.7 mm allow versatile integration into electronic devices where space conservation is critical. The 2-pin configuration simplifies circuit design and assembly.

This diode features a low maximum forward voltage of 1.3 volts for efficient conduction. The package type is DO-204AL, providing durability and suitability for industry-standard mounting. It has a fast recovery time of 150 nanoseconds, optimizing switching performance in circuits.

Operating temperature ranges from -65°C to 175°C for reliable performance in diverse environments. Designed with a 2-pin configuration, the diode is suitable for compact electronic assemblies. Its peak non-repetitive forward surge current capability is 25A, protecting against surge currents.

Physical dimensions include a length of 5.2 mm and a diameter/width/height of 2.7 mm, supporting space-efficient installation.

This Vishay switching diode is ideal for use in industrial electronics, power conversion equipment, and high-frequency switching apparatus. For research, repair, or new designs, this reliable diode ensures stable performance and extended operational lifespan. Explore more semiconductor components and switching diodes in the EnvMart catalogue for your electronic and electrical applications.
