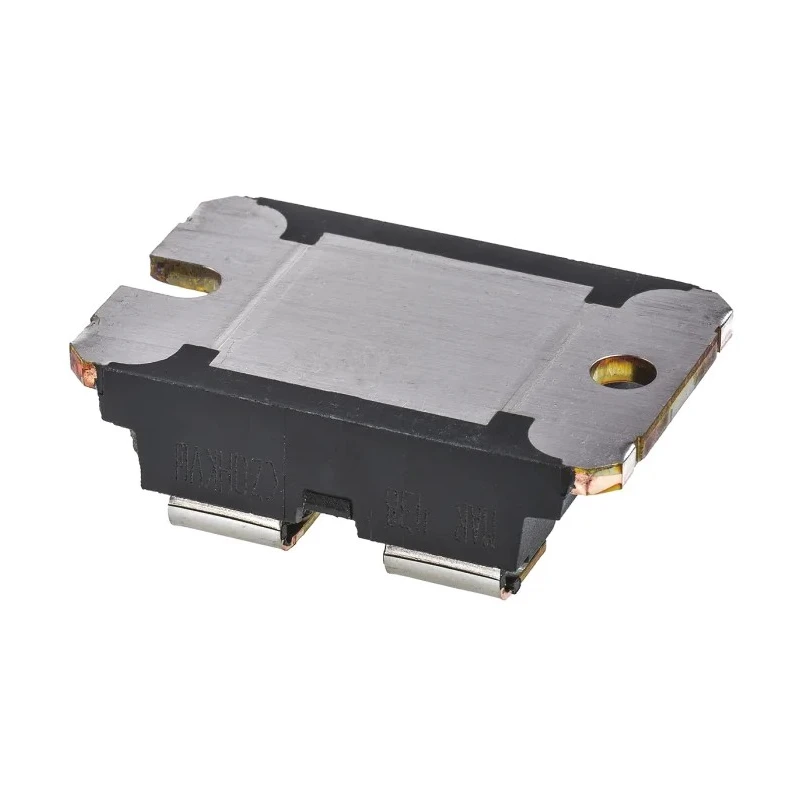

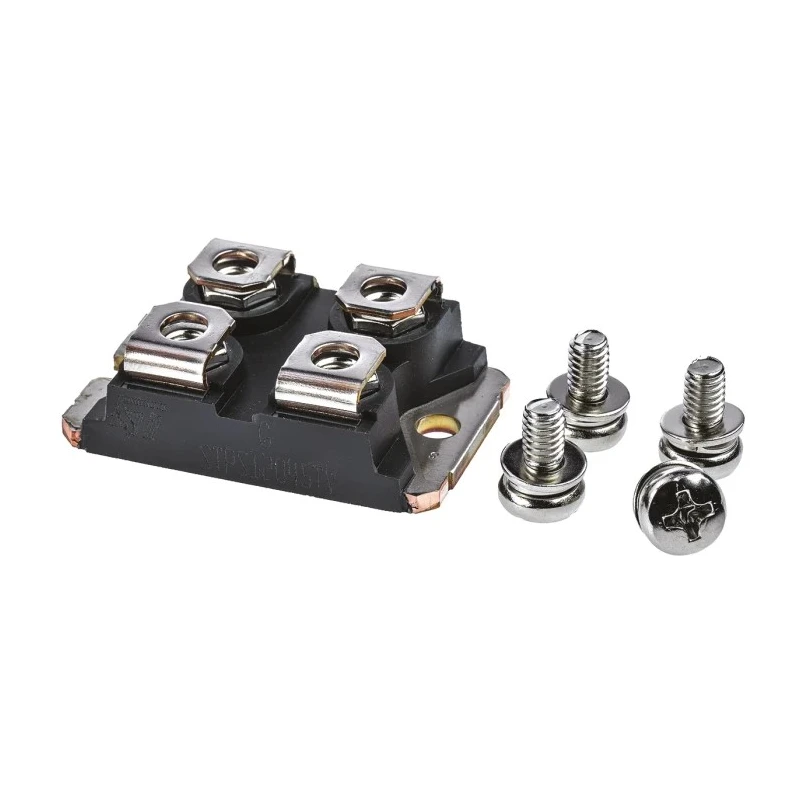

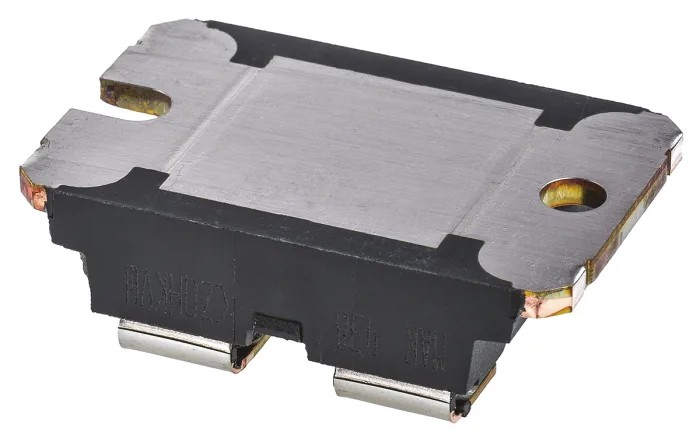

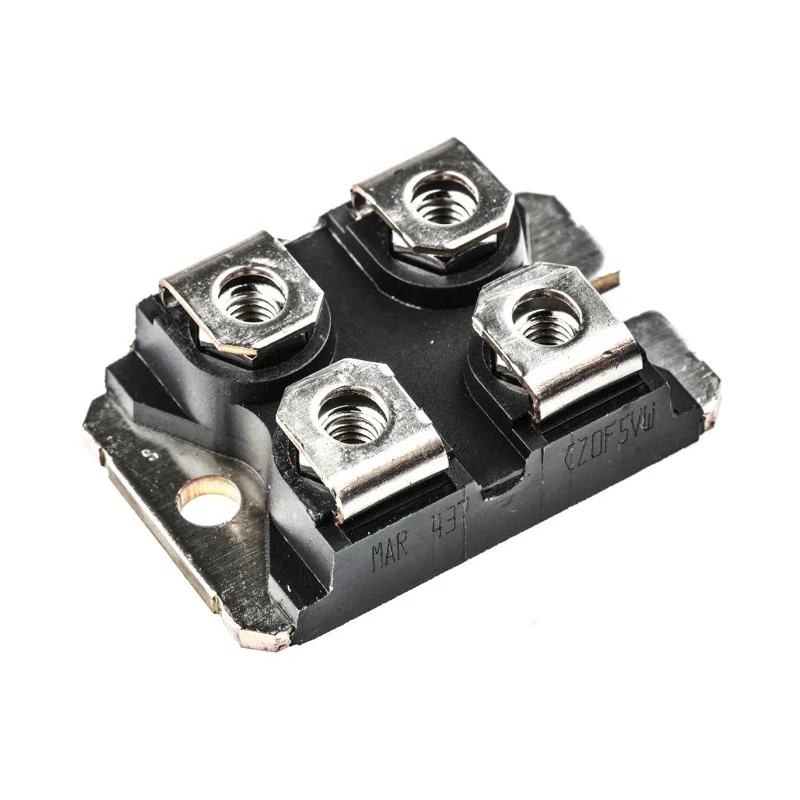

STMicroelectronics Schottky Diode 45 V 120 A Panel Mount ISOTOP Package 4-Pin STPS12045TV
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 9.1mm |
| Length | 38.2mm |
| Model | STPS12045TV |
| Width | 25.5mm |
| Mount Type | Panel |
| Series | STPS12045TV |
| Maximum Operating Temperature | 150°C |
| Package Type | ISOTOP |
| Minimum Operating Temperature | -55°C |
| Pin Count | 4 |
| Maximum Continuous Forward Current If | 120A |
| Peak Reverse Repetitive Voltage Vrrm | 45V |
| Diode Configuration | Isolated |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 900A |
| Maximum Forward Voltage Vf | 670mV |
| - Capacitance | 45 pF |
Key Features
- Panel mount diode in insulated ISOTOP package ensuring high voltage isolation.
- Maximum continuous forward current is 120 A for heavy current applications.
- Peak reverse repetitive voltage rating is 45 V, suited for high-voltage scenarios.
- Low forward voltage drop of 670 mV reduces power loss and increases efficiency.
- Capacitance of 45 pF supports high frequency operation with minimal switching losses.
- Wide operating temperature range from -55°C to 150°C for reliable performance.
- Peak non-repetitive forward surge current capability of 900 A handles transient events.
- 4-pin configuration suitable for isolated rectifier applications.
Product Description
STMicroelectronics STPS12045TV is a high-performance Schottky diode suitable for industrial and commercial use in electronic circuits, especially power supplies and secondary rectification applications. Its ISOTOP insulated package allows for high-voltage isolation of up to 2500 VRMS, making it ideal for panel mount configurations requiring safety and electrical isolation.
This diode offers a maximum continuous forward current rating of 120 A and a peak reverse repetitive voltage of 45 V, making it well-suited for high power and high frequency switching applications. Its low forward voltage drop of 670 mV contributes to improved energy efficiency with minimized conduction losses.
The device features a low leakage current and a peak non-repetitive forward surge current capability of 900 A, ensuring robustness against transient surges and spikes. The diode's capacitance rating of 45 pF enables excellent switching performance with minimal losses in high-frequency circuits.
Operating in a wide temperature range from -55 to 150°C, the STPS12045TV diode is reliable in demanding environmental conditions. Its compact dimensions (38.2 mm x 25.5 mm x 9.1 mm) and 4-pin design allow easy integration into power electronics systems where space and thermal considerations are critical.
Typical industrial applications include switch mode power supplies (SMPS), power rectification in electronic converters, and other semiconductor rectification uses within electrical and electronic manufacturing, automotive electronics, and renewable energy sectors.
Panel mount Schottky diode with insulated ISOTOP package. High forward current and voltage ratings for power supplies. Low leakage and forward voltage optimize efficiency. High surge capability enhances durability. Compact size for versatile electronic design.
Wide operating temperature for reliability. Suitable for industrial, automotive, and power electronics applications. Explore more STMicroelectronics semiconductor products in the Electronics & Electricals category on EnvMart for reliable power solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of the STMicroelectronics STPS12045TV is 120 A, making it suitable for heavy current applications.
This diode has a peak reverse repetitive voltage rating of 45 V, which is appropriate for high-voltage scenarios.
The forward voltage drop of this diode is 670 mV, which helps reduce power loss and increase efficiency in circuits.
The capacitance of the STPS12045TV is 45 pF, supporting high-frequency operation with minimal switching losses.
The operating temperature range for the STPS12045TV is from -55°C to 150°C, ensuring reliable performance in various conditions.
The STMicroelectronics STPS12045TV features a 4-pin isolated configuration, suitable for isolated rectifier applications.
This model can handle a peak non-repetitive forward surge current of up to 900 A, making it robust against transient events.
The dimensions of this diode are 38.2 mm in length, 25.5 mm in width, and 9.1 mm in height.
The STPS12045TV is packaged in an insulated ISOTOP package, which provides high voltage isolation.
This diode is suitable for applications such as switch mode power supplies (SMPS), power rectification in electronic converters, and automotive electronics.
The peak reverse current for the STPS12045TV is 1 mA, indicating low leakage current characteristics.
The STMicroelectronics STPS12045TV is manufactured in India.
