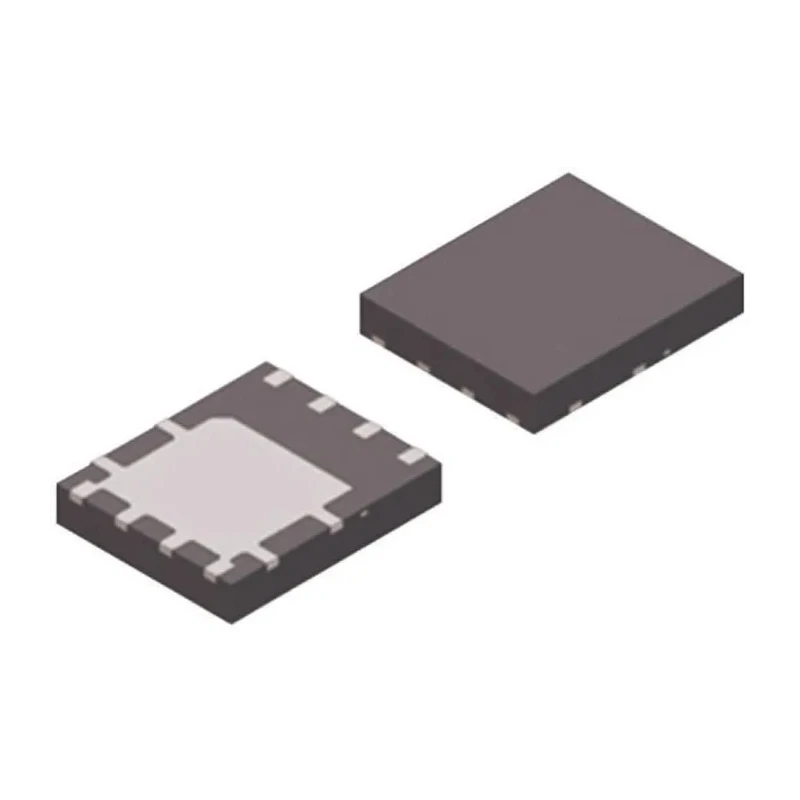

STMicroelectronics Schottky Diode PowerFLAT Surface Mount 100 V 30 A 8-Pin STPS30M100DJF-TR

STMicroelectronics STPS30M100DJF-TR Schottky Diode PowerFLAT Surface Mount is a high-performance discrete semiconductor designed for power rectification in industrial, automotive, and electronic manufacturing applications. This 8-pin diode supports a maximum continuous forward current of 30 A and peak reverse repetitive voltage up to 100 V, providing robust performance under varied electrical loads.

The PowerFLAT package offers a compact footprint with dimensions approximately 6.15 mm in length, 5.2 mm in width, and 0.95 mm in height, optimized for surface mount technology on modern printed circuit boards. The diode exhibits a low forward voltage drop of 960 mV, minimizing energy loss and heat dissipation, thus improving overall circuit efficiency.

With operating temperature range from -65°C to 150°C, this diode is suitable for harsh environments in industrial control systems, power supplies, and automotive electronics. Its peak non-repetitive forward surge current capacity of 200 A ensures resilience against transient surges, while the peak reverse current of 40 mA maintains low leakage currents.

This Schottky barrier diode is configured as a single rectifier, providing fast switching speeds and reduced forward voltage compared to standard diodes. Its surface mount PowerFLAT package simplifies assembly and improves thermal management.

Engineers can utilize this diode for power supply designs, voltage clamping, and protection circuits where fast response and energy efficiency are critical. The product is RoHS compliant, supporting environmentally conscious manufacturing requirements.

Provides a maximum continuous forward current of 30 A for reliable high-current operation. Features a peak reverse repetitive voltage of 100 V suited for demanding electronic circuits. Constructed in a compact PowerFLAT 8-pin surface mount package measuring 6.15 mm by 5.2 mm.

Operates effectively across a temperature range from -65°C to 150°C, ensuring durability and stability. Offers low forward voltage drop of 960 mV to improve energy efficiency. Supports peak non-repetitive forward surge current up to 200 A to handle transient loads.

Peak reverse current is limited to 40 mA to minimize leakage and ensure device reliability. Engineered as a single diode configuration with Schottky rectifier type for fast switching and low losses. Explore further semiconductor and diode solutions from STMicroelectronics on EnvMart for industrial, automotive, and electronic component applications.
