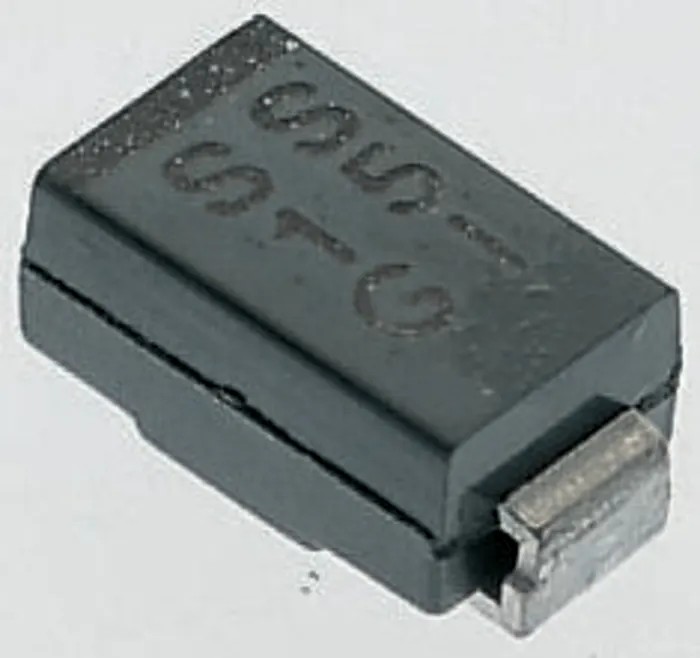

Vishay 60 V 1 A Schottky Diode Surface Mount DO-214AC Package SS16-E3/5AT
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 2.29mm |
| Length | 4.6mm |
| Model | SS16-E3/5AT |
| Width | 2.9mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AC |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 200μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 40A |
| Maximum Forward Voltage Vf | 0.75V |
Key Features
- This diode features a low forward voltage drop of 0.75 V which enhances energy efficiency.
- Designed to operate reliably within a wide temperature range from -65°C to +150°C.
- Peak reverse repetitive voltage of 60 V and peak non-repetitive forward surge current up to 40 A.
- Compact dimensions of 4.6 mm length, 2.9 mm width, and 2.29 mm height save PCB space.
- Ideal for low voltage, high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.
- Employs an over-voltage protection guard ring for circuit reliability.
- Low power losses reduce heat generation and enhance performance in power circuits.
Product Description
Vishay SS16-E3/5AT Schottky Diode is a high-performance semiconductor component designed for surface mount assembly in electronic circuits. This diode, housed in a compact DO-214AC (SMA) package, supports a maximum continuous forward current of 1 A and a peak reverse voltage of 60 V. Its single diode configuration and Schottky rectifier type make it suitable for fast switching applications.
Featuring a low forward voltage drop of 0.75 V, the SS16-E3/5AT reduces conduction losses, enabling higher efficiency in power management and conversion circuits. Its operating temperature range from -65°C to 150°C ensures dependable performance across industrial and commercial environments.
The device dimensions of 4.6 mm length, 2.9 mm width, and 2.29 mm height contribute to a compact footprint, ideal for space-constrained PCB layouts. The diode also includes an over-voltage protection guard ring that enhances circuit robustness.
This Schottky diode series is especially designed for low voltage, high frequency inverters, freewheeling diodes, DC/DC converters, and polarity protection circuits commonly found in automation, industrial manufacturing, and power supply systems.
Low forward voltage drop reduces power losses. High surge current tolerance up to 40 A enhances durability. Wide operating temperature range for industrial use. Compact surface mount package saves PCB space. Over-voltage protection guard ring improves reliability.
Suitable for DC/DC conversion and inverter circuits. Manufactured under Vishay brand assuring quality and standards.
This diode is supplied in a DO-214AC package, making it compatible with automated assembly lines, improving production efficiency. The product is made in China and is a new condition device, optimized for industrial, commercial, and laboratory electronic designs. Browsing more Schottky Diodes & Rectifiers at EnvMart allows you to find compatible components with matching performance parameters for your projects.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this diode is 1 A.
The peak reverse repetitive voltage rating is 60 V.
This diode has dimensions of 4.6 mm in length, 2.9 mm in width, and 2.29 mm in height.
The operating temperature range for the SS16-E3/5AT is from -65°C to +150°C.
The forward voltage drop is 0.75 V.
The peak non-repetitive forward surge current rating is up to 40 A.
This diode is housed in a DO-214AC package.
The rectifier type of the SS16-E3/5AT is Schottky.
This diode has a pin count of 2.
It is suitable for low voltage, high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.
The peak reverse current is rated at 200 μA.
The diode includes an over-voltage protection guard ring that enhances circuit reliability.
