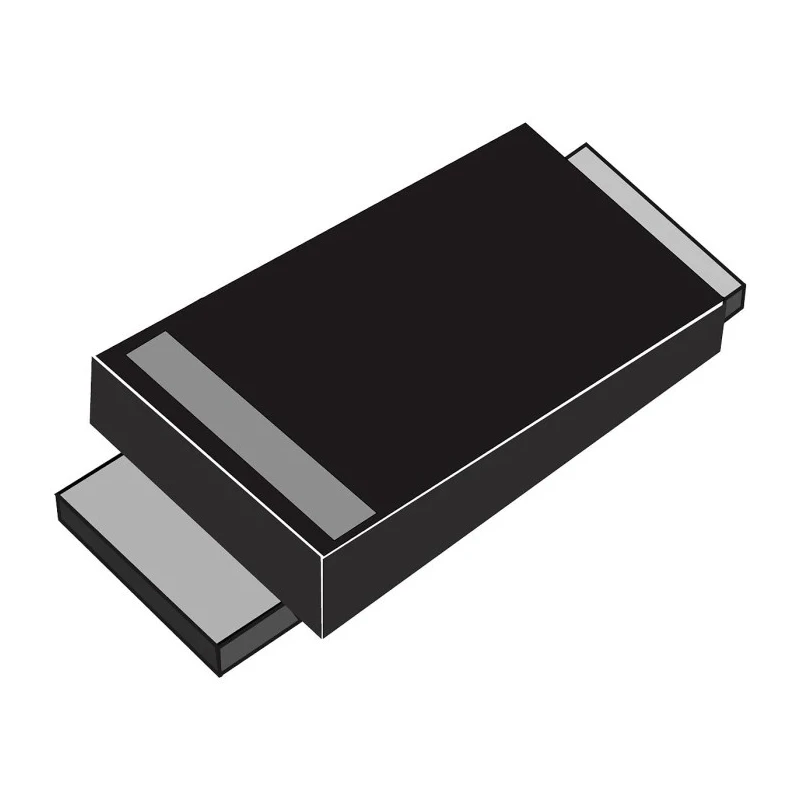

STMicroelectronics 200 V 2 A General Purpose Diode Single Rectifier Surface Mount 2-Pin SOD-128 STTH2R02AFY
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.03mm |
| Length | 3.9mm |
| Model | STTH2R02AFY |
| Width | 2.5mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | SOD-128 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 3μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 1.02V |
| Peak Reverse Recovery Time trr | 22ns |
Key Features
- Supports maximum continuous forward current of 2 amperes.
- Peak reverse repetitive voltage rating is 200 volts.
- Features low maximum forward voltage of 1.02 volts for efficient performance.
- Operates reliably at temperatures ranging from -40°C to 175°C.
- Has a peak reverse current of 3 microamperes and peak non-repetitive forward surge current of 50 amperes.
- Compact dimensions with length 3.9 mm, width 2.5 mm, and height 1.03 mm.
- Surface mount design suitable for automated PCB assembly.
- Meets automotive standard AEC-Q101 for high reliability.
Product Description
STMicroelectronics STTH2R02AFY is a high quality general purpose diode designed for surface mount applications with a 2-pin SOD-128 package. It features a maximum continuous forward current of 2 A and a peak reverse repetitive voltage rating of 200 V, making it suitable for a wide range of semiconductor electronic applications requiring dependable rectification performance.
This diode supports operating temperatures from -40°C to 175°C, ensuring reliability in demanding industrial and automotive environments. It complies with the automotive standard AEC-Q101, which guarantees enhanced robustness and quality for automotive electronics systems.
With a low maximum forward voltage of 1.02 V and a fast peak reverse recovery time of 22 ns, the STTH2R02AFY diode offers high efficiency and swift switching capabilities, ideal for power supply and signal rectification tasks in industrial, automotive, and electronic manufacturing sectors.
The compact SOD-128 surface mount package with dimensions of 3.9 mm length, 2.5 mm width, and 1.03 mm height is designed for easy integration into printed circuit boards, enabling efficient automated assembly processes.
Key technical advantages include a low peak reverse current of 3 μA and a peak non-repetitive forward surge current of 50 A, providing durability against transient surges and enhancing device longevity.
Supports maximum continuous forward current of 2 A. Rated for peak reverse repetitive voltage of 200 V. Low maximum forward voltage of 1.02 V. Wide operating temperature range from -40°C to 175°C. Meets automotive AEC-Q101 standard.
Fast reverse recovery time of 22 ns. Compact surface mount SOD-128 package. Peak reverse current of 3 μA. Peak surge current rating of 50 A.
This diode is suited for applications in industrial electronics, automotive systems, power supplies, and general semiconductor electronic devices. Its specifications make it a versatile and reliable choice for circuit designers seeking robust diode solutions for high efficiency and durability.
Explore our semiconductor selection at EnvMart for related electronic components including Schottky diodes, rectifiers, and discrete semiconductors suitable for your industrial and automotive projects.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 2 amperes.
This model has a peak reverse repetitive voltage rating of 200 volts.
The maximum forward voltage of this diode is 1.02 volts.
It operates reliably within a temperature range of -40°C to 175°C.
The peak reverse current for this diode is rated at 3 microamperes.
The peak non-repetitive forward surge current is 50 amperes.
The SOD-128 package dimensions are 3.9 mm in length, 2.5 mm in width, and 1.03 mm in height.
This diode meets the automotive standard AEC-Q101, ensuring high reliability for automotive applications.
The peak reverse recovery time is 22 nanoseconds.
It supports a surface mount design, suitable for automated PCB assembly.
This diode is suited for applications in industrial electronics, automotive systems, and power supplies.
The diode configuration is single, designed for general purpose rectification.
