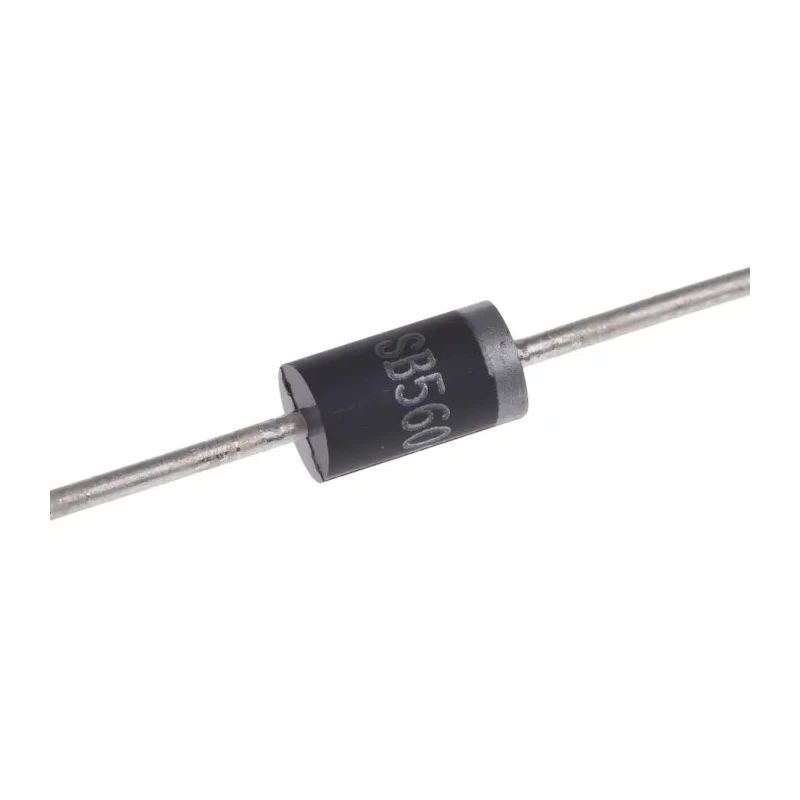

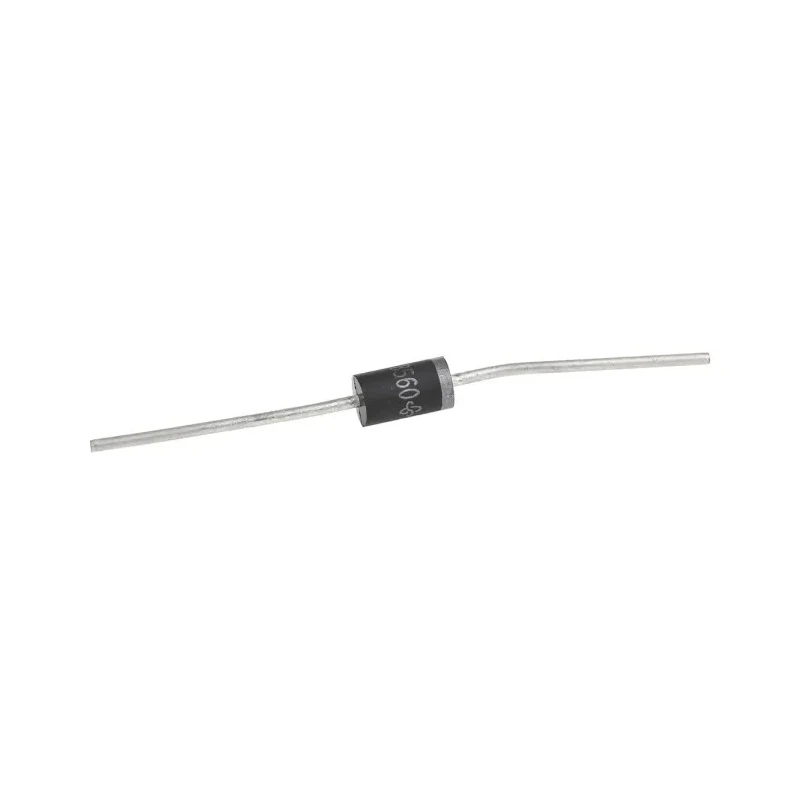

Vishay 60 V 5 A Schottky Diode Single 2-Pin DO-201AD Through Hole SB560-E3/54
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.3mm |
| Brand | Vishay |
| Height | 5.8mm |
| Length | 10mm |
| Model | SB560-E3/54 |
| Width | 5.8mm |
| Mount Type | Through Hole |
| Series | SB560 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-201AD |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 5A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 220A |
| Maximum Forward Voltage Vf | 0.7V |
| Lite-On 60V 5A, Schottky Diode, 2-Pin DO-201AD SB560Brand | Lite-On |
Key Features
- The diode features a maximum continuous forward current of 5 Amperes.
- It supports a peak reverse repetitive voltage of 60 Volts.
- The device has a fast switching action with low forward voltage drop of 0.7 V.
- The diode operates in an ambient temperature range from -65°C to 150°C.
- It has a peak non-repetitive forward surge current of 220 Amperes.
- The package dimensions include a length of 10 mm and a diameter of 5.3 mm.
- The diode is configured as a single polarity rectifier with 2 pins.
- It exhibits a peak reverse current of 500 microamperes.
Product Description
Vishay SB560-E3/54 is a high performance Schottky diode designed for power applications requiring fast switching and low power loss. This diode comes in a 2-pin DO-201AD through-hole package, rated for a maximum continuous forward current of 5 A and a peak reverse repetitive voltage of 60 V.
Schottky diodes such as this model exhibit very low forward voltage drop, measured at 0.7 V, which reduces power dissipation in switching circuits. With its peak non-repetitive forward surge current capability of 220 A, it can handle transient high-current conditions effectively.
The diode operates reliably over a wide temperature range from -65°C up to 150°C, making it suitable for harsh industrial and electronic environments. Its compact package size, with a length of 10 mm and diameter of 5.3 mm, supports easy PCB mounting and integration.
This single diode configuration with 2 pins is commonly used in power rectification, voltage clamping, and other semiconductor applications requiring high efficiency and fast response. Its characteristics make it ideal for use in power supplies, automotive electronics, and various industrial electronics systems.
The diode has a maximum forward current rating of 5 Amperes. Peak reverse repetitive voltage rating is 60 Volts. Forward voltage drop is low at 0.7 Volts for efficient performance. Operating temperature range spans from -65°C to 150°C ensuring durability.
Peak forward surge current rating of 220 Amperes supports transient loads. Compact 2-pin DO-201AD through-hole package measures 10 mm by 5.3 mm. The device features a peak reverse current of 500 microamperes.
This Vishay Schottky diode is suitable for applications in industrial manufacturing, laboratory electronics, power supply units, automotive systems, and other electronic device assemblies requiring reliable diode rectification components.
Explore more Schottky diodes and related semiconductor components on EnvMart for industrial and electronic engineering solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
