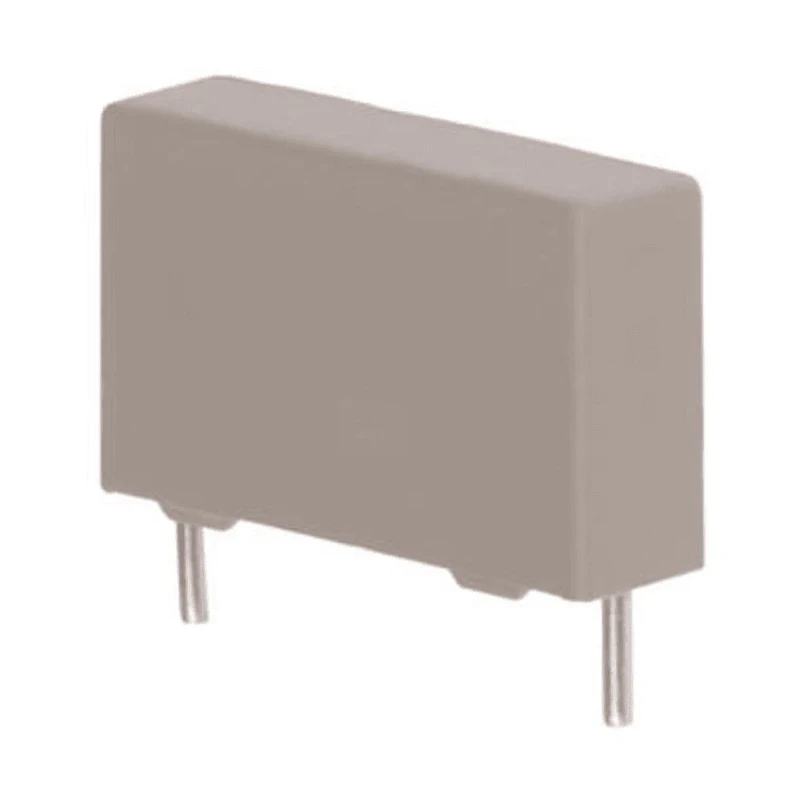

Vishay MKP 338 Film Capacitor X1, ±20 %, 1 nF, 300 V DC & 300 V AC, Through Hole BFC233860102

Vishay BFC233860102 MKP 338 Film Capacitor X1 is a high-quality film capacitor featuring a capacitance of 1 nanofarad with a tolerance of ±20 %. It is rated for 300 volts DC and 300 volts AC, making it suitable for demanding electronic circuits requiring stable capacitance performance under both AC and DC conditions. The capacitor utilizes polypropylene as the dielectric material, providing excellent electrical and thermal properties while being self-repairing and flame-retardant with an epoxy sealing resin ensuring enhanced safety.

The device is mounted through hole, with a lead pitch of 7.5 mm and lead diameter of 0.5 mm. Its compact dimensions of 10 mm in length, 4 mm in width, and 9 mm in height make it suitable for PCB assembly where space is constrained.

Operating temperature range spans from -55°C to 105°C, supporting a wide range of operating environments. The capacitor meets critical international standards including EN 60384-14:2013, UL 60384-14, IEC 60384-14:2013, and IEC 60065, and has CSA and UL recognitions, ensuring compliance and reliability in electronic designs.

The MKP 338 series capacitor is designed for suppression applications classified as X1, intended for direct connection across mains supply, but care should be taken to avoid capacitor failure that might expose users to electric shock risks.

These capacitors are ideal for use within industrial, laboratory, electronic manufacturing, HVAC, and other electrical equipment requiring reliable noise suppression and stable capacitance.

Constructed with polypropylene dielectric for stable capacitance. Flame-retardant epoxy resin sealing enhances operational safety. Certified to comply with multiple international standards and approvals. Designed for through hole mounting for robust mechanical connection.

Suitable for high voltage suppression class X1 applications. Operates safely across a broad temperature range from -55°C to 105°C. Compact size enables integration in tight PCB layouts. CSA and UL recognized quality and safety certification.

Self-repairing characteristics ensure longer capacitor life.

For professionals seeking film capacitors with reliable performance and safety certifications, Vishay MKP 338 Film Capacitor BFC233860102 serves as a dependable choice. Explore more electronic components within the Film Capacitors category on EnvMart to find compatible parts and tools.
