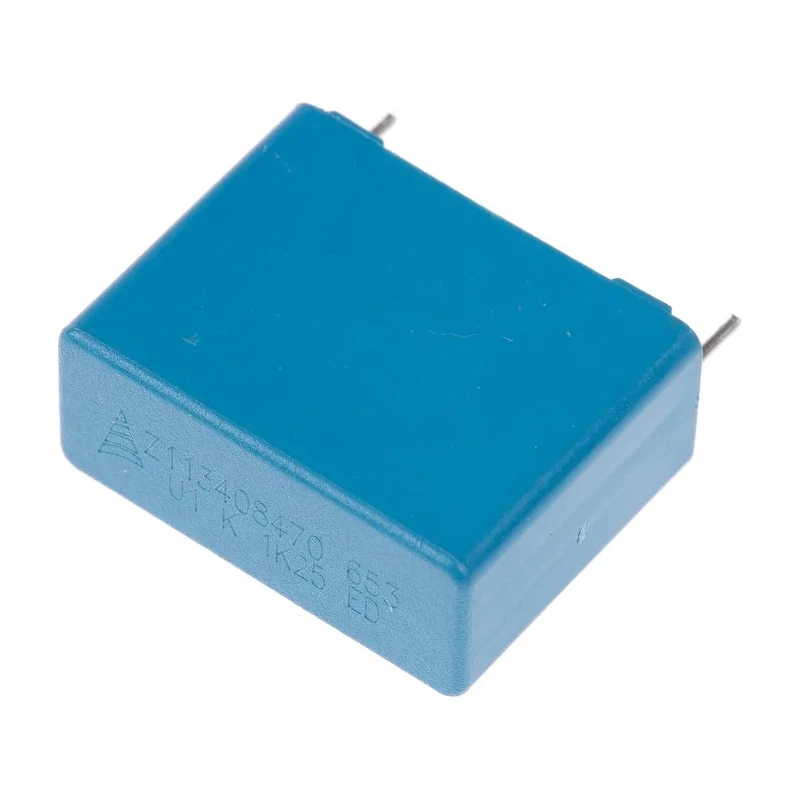

TDK Film Capacitor 100 nF 500V AC 1.25 kV DC Through Hole Rated 100°C B32653A7104K000

TDK B32653A7104K000 Film Capacitor 100 nF 500V AC 1.25 kV DC Through Hole is engineered for industrial and commercial electronics applications requiring high pulse strength and reliability. Its wound capacitor construction with an internal series connection supports DC voltages of at least 1250 V, making it suitable for demanding voltage environments.

The capacitor features a plastic encapsulation complying with UL 94 V-0 flame retardant standards and is sealed with epoxy resin to enhance durability and safety. Rated for operation at temperatures up to 100°C, it provides stable performance in harsh or high-temperature conditions.

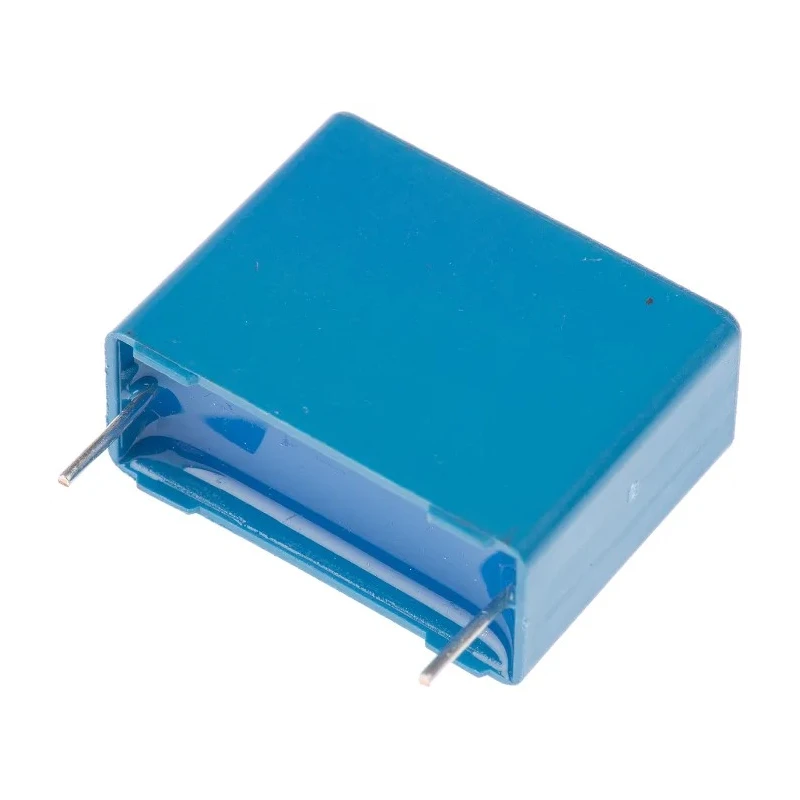

The device is designed for through-hole mounting with a lead pitch of 22.5 mm and lead diameter of 0.8 mm. Its compact size - 26.5 mm length, 20.5 mm height, and 11 mm width - allows integration in space-constrained circuit boards. The two-pin configuration simplifies installation and soldering tasks.

Typical uses include TV S-correction, TV flyback circuits, and electronic ballast circuitry, where high pulse strength and contact reliability are critical. It meets the AEC-Q200 Rev D automotive standard, making it applicable in automotive electronics requiring stringent quality and reliability.

Wound capacitor technology with internal series connection for VR ≥1250V DC enhances voltage handling. Flame retardant plastic casing with epoxy sealing ensures robust safety and longevity. Rated for maximum operating temperature of 100°C for reliable high-temp operation.

Select dimensions and pin spacing facilitate easy mounting and optimized PCB layout. Two-pin through-hole mount design for firm mechanical and electrical connection. Applications include TVs and electronic ballast circuits for efficient signal correction and power handling.

Conforms to automotive quality standards ensuring dependable operation in vehicles.

Set contains 1 Film Capacitor with specifications as detailed above. Ideal for industrial electronic component replacement or new designs requiring this capacitance and voltage rating.
