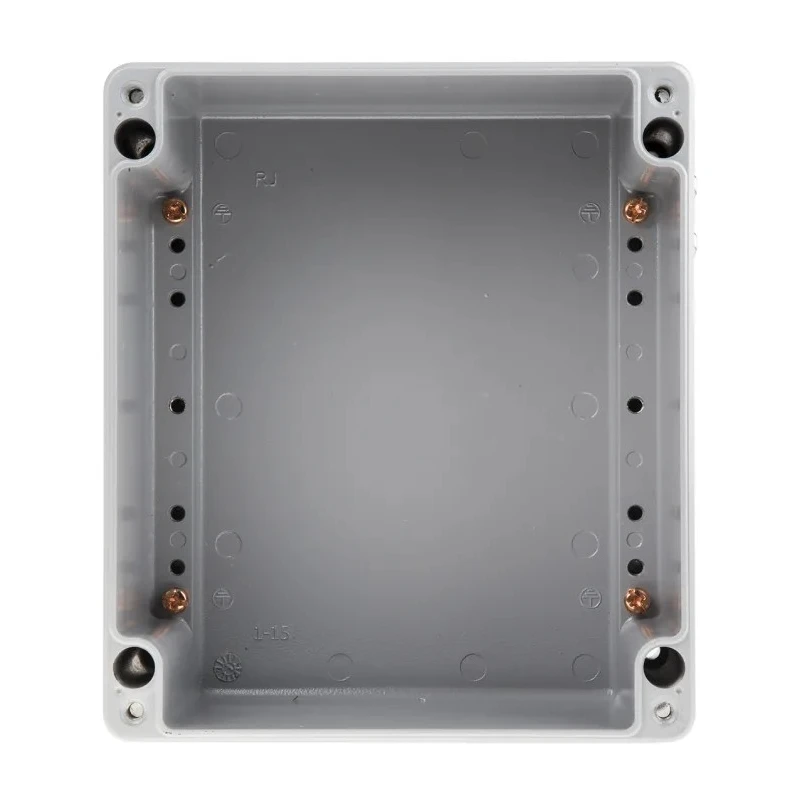

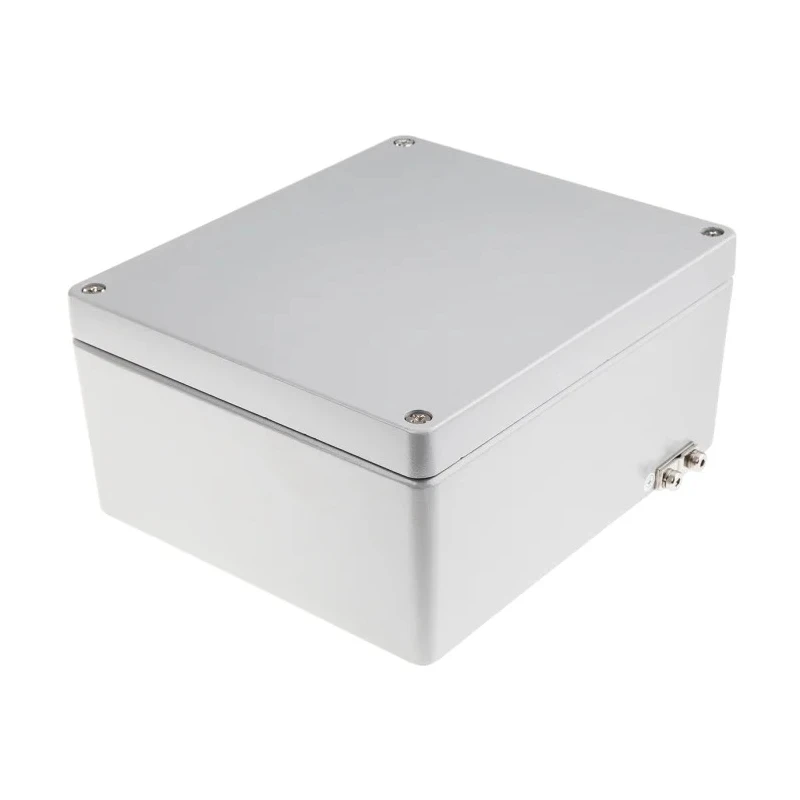

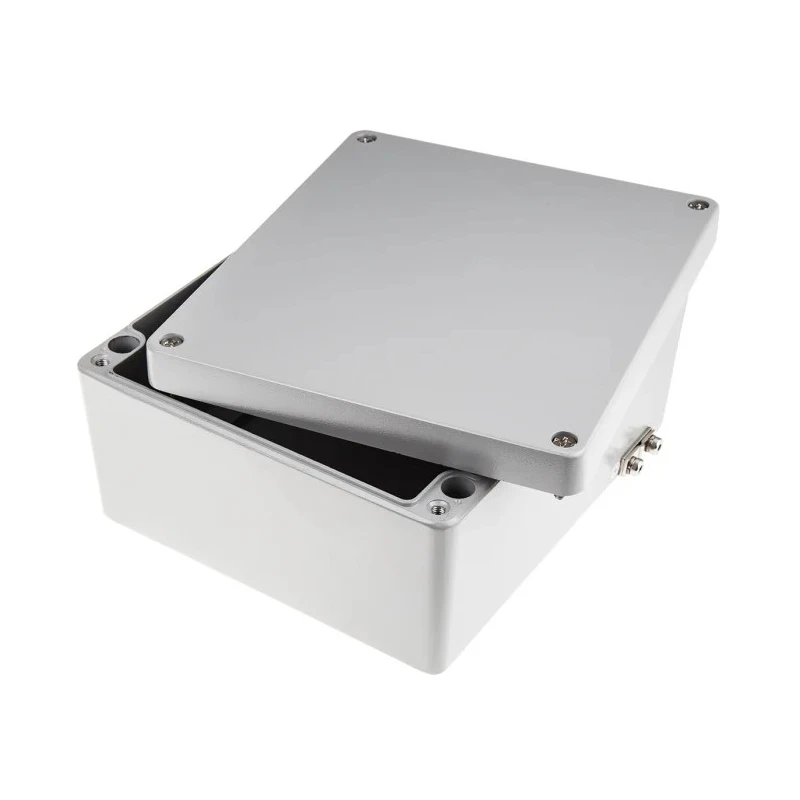

RS PRO Grey Lid Aluminium Enclosure, IP65, IP66, IP67, IP68, IK09, 113 mm x 230 mm x 230 mm IP65
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Body Material | Aluminium |
| Model | IP65 |
| IP Rating | IP65, IP66, IP67, IP68 |
| Service Temperature | -50°C to 135°C |
| Series | RS PRO |
| External Width | 230mm |
| External Height | 113mm |
| Shielding | Unshielded |
| Hazardous Area Certification | ATEX, IECEx |
| Standards/Approvals | RoHS Compliant |
| External Length | 230mm |
| Lid Colour | Grey |
| IK Rating | IK09 |
| Gasket Material | Silicon |
| Internal/external earthing | 4 mm2 to 120 mm2 internal and external |
| • Mechanical Strength | in accordance with 60079-0, impact energy 7 Nm |
| • Protection Class | EN60529, IP66 |
Key Features
- Constructed from AISi 12 aluminium alloy with a grey powder coated finish.
- Certified for hazardous areas with ATEX and IECEx approvals suitable for explosive atmospheres.
- Sealed with silicon gaskets ensuring protection against dust, water, and high impact.
- External dimensions of 113 mm height, 230 mm width, and 230 mm length provide versatile installation space.
- Equipped with stainless steel captive lid screws for secure and reliable closure.
- Operates safely within a service temperature range from -50°C to 135°C, suitable for extreme conditions.
- Unshielded enclosure body designed for process control, automation, mining, and other industrial applications.
- Includes 4 cover screws and both cover and enclosure body for complete assembly.
Product Description
RS PRO IP65 Grey Lid Aluminium Enclosure is a high-quality diecast aluminium enclosure designed for robust industrial and hazardous environment applications. Manufactured from AISi 12 aluminium and finished with a grey powder coating, it provides exceptional corrosion resistance.
The enclosure is certified with ATEX and IECEx approvals, making it suitable for use in explosive atmospheres encountered in process control, automation, and mining industries. With an IK09 impact rating and IP65 to IP68 ingress protection ratings, it offers superior protection against dust, water, and mechanical impact.
This enclosure features a silicon gasket material that ensures a watertight seal, maintaining the enclosure integrity even under harsh conditions. Equipped with stainless steel captive lid screws, the lid is securely fastened for enhanced durability and easy servicing.
The external dimensions of 113 mm height, 230 mm width, and 230 mm length provide ample internal space for electrical components, sensors, or instrumentation. The enclosure supports internal and external earthing from 4 mm² to 120 mm² sizes, enhancing safety in electrical installations.
Operating reliably in temperatures from -50°C to 135°C, this enclosure is ideal for applications on locomotives, crane hoists, solar panels, load cells, oil meters, and high torque braking systems.
Constructed from AISi 12 aluminium alloy with grey powder coated finish. ATEX and IECEx certified for use in explosive atmospheres. Protection standards EN60529 (IP66) and impact energy compliance to 60079-0. Includes enclosure body, cover, and 4 cover screws for assembly.
Suitable for heavy industrial environments including process control and mining. Silicon gasket and stainless steel screws ensure long-lasting sealed protection. Complies with various standards including ISO 9001:2008 and IEC 80079-34:2011.
This RS PRO enclosure is an excellent choice for professionals requiring a reliable, durable solution for protecting electrical and electronic components in demanding industrial and hazardous environments. Explore more in the Electrical Enclosures category at EnvMart for your automation and industrial equipment needs.
Explore more products in our General Purpose Enclosures category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The external dimensions of the enclosure are 113 mm in height, 230 mm in width, and 230 mm in length.
It operates reliably within a service temperature range from -50°C to 135°C.
This enclosure is certified with ATEX and IECEx approvals, making it suitable for use in explosive atmospheres.
It has IP65, IP66, IP67, and IP68 ingress protection ratings, ensuring protection against dust and water.
The enclosure is constructed from AISi 12 aluminium alloy and features a grey powder coated finish.
The enclosure has an IK09 impact rating, indicating its resistance to mechanical impacts.
It features a silicon gasket material that ensures a watertight seal against dust and water ingress.
It complies with mechanical strength standards in accordance with 60079-0, with an impact energy of 7 Nm.
It supports internal and external earthing sizes from 4 mm² to 120 mm².
The enclosure includes the body, cover, and 4 cover screws for complete assembly.
The enclosure is manufactured in India.
It is suitable for applications in process control, automation, mining, and other industrial environments.
