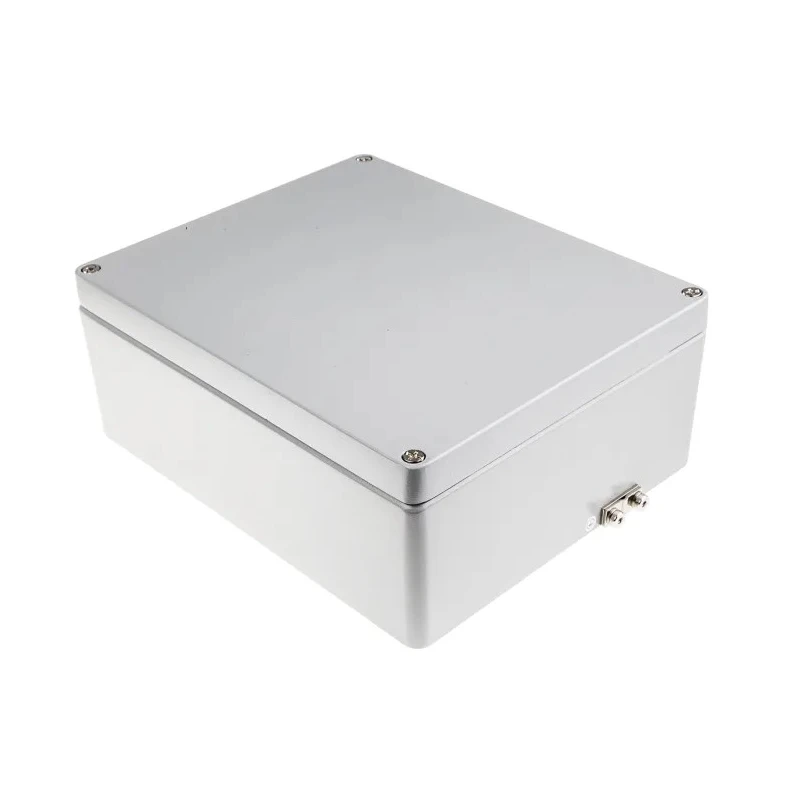

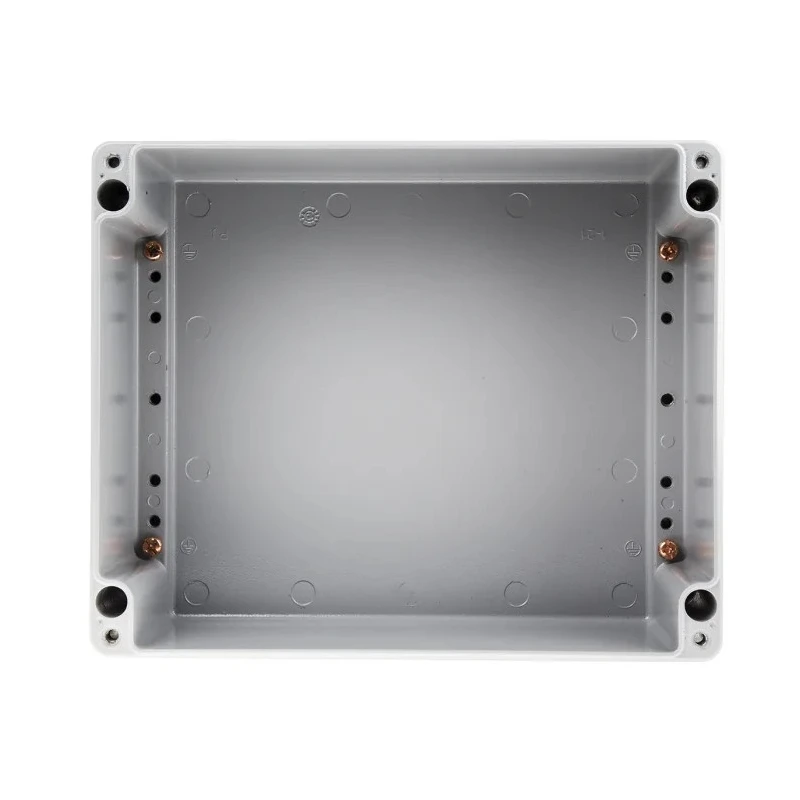

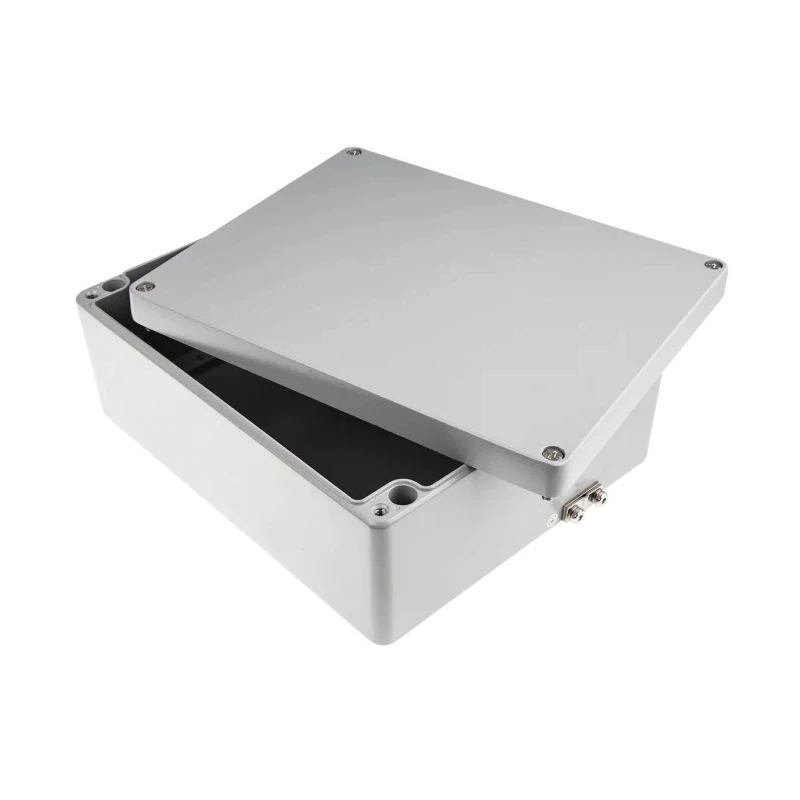

RS PRO Grey Lid Aluminium Enclosure, IP65, IP66, IP67, IP68, IK09, 110 mm x 280 mm x 280 mm IP65
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Body Material | Aluminium |
| Model | IP65 |
| IP Rating | IP65, IP66, IP67, IP68 |
| Service Temperature | -50°C to 135°C |
| Series | RS PRO |
| External Width | 280mm |
| External Height | 110mm |
| Shielding | Unshielded |
| Hazardous Area Certification | ATEX, IECEx |
| Standards/Approvals | RoHS Compliant |
| External Length | 280mm |
| Lid Colour | Grey |
| IK Rating | IK09 |
| Gasket Material | Silicon |
| Internal/external earthing | 4 mm2 to 120 mm2 internal and external |
| • Mechanical Strength | in accordance with 60079-0, impact energy 7 Nm |
| • Protection Class | EN60529, IP66 |
Key Features
- Constructed of AISi 12 diecast aluminium with a grey powder coated finish for corrosion resistance.
- Certified with ATEX and IECEx approvals for hazardous area safety compliance.
- Protected by IP65, IP66, IP67, and IP68 ingress ratings for water and dust resistance.
- Features an IK09 impact rating ensuring mechanical durability against impacts.
- Includes stainless steel captive lid screws for secure closure and easy maintenance.
- Suitable for electrical and automation applications including mining, process control, and outdoor installations.
- Service temperature range from -50°C to 135°C supports wide environmental conditions.
- Internal and external earthing connections accommodate conductors from 4 mm² to 120 mm².
Product Description
RS PRO IP65 Grey Lid Aluminium Enclosure, model IP65, measures 110 mm in height, 280 mm in width, and 280 mm in length. This enclosure is designed for industrial environments requiring protection against dust, water, and mechanical impact.
Constructed from diecast AISi 12 aluminium, it features a grey powder coated finish that ensures corrosion resistance and durability. The enclosure is ATEX and IECEx certified, making it compliant to use safely in explosive atmospheres encountered in process control, automation, and mining industries.
It has a combination of ingress protection ratings including IP65, IP66, IP67, and IP68, providing excellent defense against solids and liquids. Additionally, the enclosure carries an IK09 impact rating, guaranteeing resistance to mechanical shocks and impacts encountered on site.
The enclosure comes with stainless steel captive lid screws for fastening the cover securely, simplifying assembly and maintenance. The silicon gasket delivers reliable sealing performance across a wide service temperature range of -50°C to 135°C, suitable for extreme environmental conditions.
Internal and external earthing is supported for conductors between 4 mm² and 120 mm², assuring electrical safety and compliance. This enclosure is unshielded and flangeless, delivering flexibility for various installation requirements.
The enclosure is ideal for demanding applications such as on locomotives, crane hoists, solar panels, load cells, oil meters, and high torque brakes. It satisfies multiple safety and quality standards including RoHS compliance and ISO 9001:2008 process control system adherence.
Constructed from AISi 12 aluminium with grey powder coating for durability. ATEX and IECEx certified for explosive atmosphere suitability. IP65 to IP68 rated for superior ingress protection. IK09 mechanical impact resistance rating.
Includes stainless steel captive lid screws for secure fastening. Service temperature range from -50°C to 135°C. Internal/external earthing for 4 mm² to 120 mm² conductors. Silicon gasket material for reliable sealing. Dimensional footprint: 110 mm height x 280 mm width x 280 mm length.
Applicable in industrial automation, mining, solar panel protection, and heavy machinery. Discover the comprehensive RS PRO range at EnvMart to fulfill your electrical enclosure requirements with assurance of quality and safety.
Explore more products in our General Purpose Enclosures category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The service temperature range of this enclosure is from -50°C to 135°C, making it suitable for a wide variety of environmental conditions.
This model measures 110 mm in height, 280 mm in width, and 280 mm in length.
The enclosure is rated IP65, IP66, IP67, and IP68, providing excellent protection against dust and water ingress.
It is constructed from AISi 12 diecast aluminium with a grey powder coated finish for corrosion resistance.
This enclosure is certified with ATEX and IECEx approvals, ensuring it is suitable for use in explosive atmospheres.
The enclosure has an IK09 impact rating, which indicates it can withstand mechanical shocks and impacts.
The enclosure includes stainless steel captive lid screws that provide secure closure and facilitate easy maintenance.
It supports internal and external earthing connections for conductors ranging from 4 mm² to 120 mm², ensuring electrical safety.
Yes, it is suitable for outdoor installations due to its high ingress protection ratings and durable construction.
This unit is ideal for applications in industrial automation, mining, solar panel protection, and heavy machinery.
The enclosure complies with protection class EN60529, which relates to its ingress protection ratings.
The silicon gasket provides reliable sealing performance, enhancing the enclosure's protection against environmental factors.
