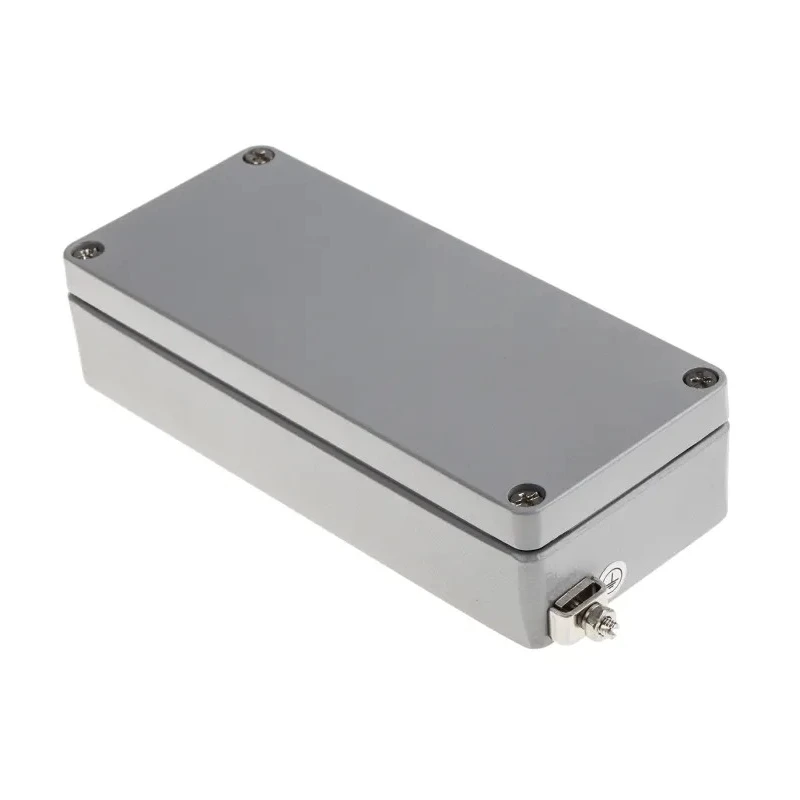

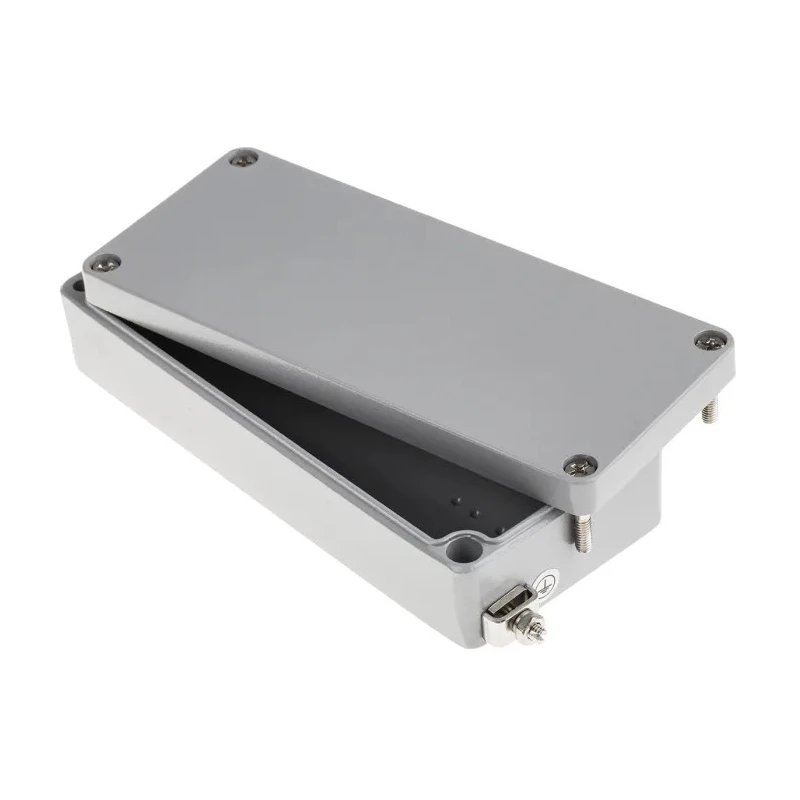

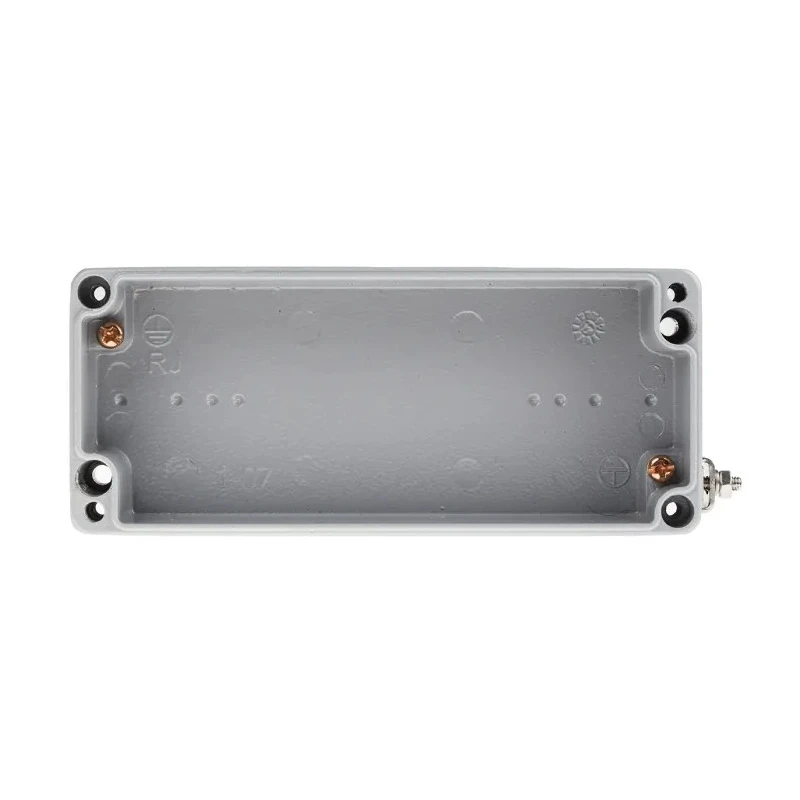

RS PRO Grey Lid Aluminium Enclosure IP68 IP67 IP66 IP65 IK09 Explosion Proof 34 mm x 150 mm x 150 mm 122-8922
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Body Material | Aluminium |
| Model | 122-8922 |
| IP Rating | IP68, IP67, IP66, IP65 |
| Service Temperature | -50°C to 135°C |
| Series | RS PRO |
| External Width | 150mm |
| External Height | 34mm |
| Shielding | Unshielded |
| Hazardous Area Certification | IECEx, ATEX |
| External Length | 150mm |
| Lid Colour | Grey |
| IK Rating | IK09 |
| Gasket Material | Silicon |
| Internal/external earthing | 4 mm2 to 120 mm2 internal and external |
| • Mechanical Strength | in accordance with 60079-0, impact energy 7 Nm |
| • Protection Class | EN60529, IP66 |
Key Features
- Constructed from durable AISi 12 diecast aluminium with grey powder coated finish.
- Certified for use in explosive atmospheres with ATEX and IECEx approvals.
- Equipped with silicon gasket material ensuring high ingress protection.
- Features stainless steel captive lid screws for secure sealing.
- Designed to withstand service temperatures from -50°C to 135°C.
- Internal and external earthing capability supports 4 mm² to 120 mm² cable sizes.
- Provides mechanical strength compliant with impact energy 7 Nm (60079-0 standard).
- Ideal for industrial, process control, automation, mining, and transportation applications.
Product Description
RS PRO 122-8922 Grey Lid Aluminium Enclosure offers robust protection for electrical components with a compact size of 34 mm height, 150 mm width, and 150 mm length. Manufactured from AISi 12 diecast aluminium with a grey powder coated finish, this enclosure is engineered for harsh industrial environments.
It boasts multiple ingress protection ratings including IP65, IP66, IP67, and IP68, ensuring reliable sealing against dust and water ingress. The enclosure is certified explosion proof with ATEX and IECEx standards making it suitable for use in hazardous atmospheres commonly found in mining, oil and gas, and chemical industries.
The robust construction includes an IK09 impact resistance rating, silicon gasket for superior sealing, and stainless steel captive lid screws that ensure secure closure. With a service temperature range from -50°C to 135°C, the enclosure withstands extreme temperature fluctuations.
Earthing provisions allow connection of cables from 4 mm² to 120 mm² internally and externally, enhancing safety and compliance. Mechanical strength meets the 60079-0 specification with impact energy resistance of 7 Nm, further certifying its capacity to handle demanding industrial conditions.
Constructed from AISi 12 aluminium with a robust powder coated finish. Certified ATEX and IECEx protection ensures suitability for explosive atmospheres. IP ratings from 65 to 68 provide excellent protection against environmental ingress.
Features IK09 impact resistance for durability against mechanical shocks. Equipped with silicon gasket and stainless steel captive lid screws for secure sealing. Supports internal and external earthing from 4 mm² to 120 mm² cable sizes.
Service temperature range from -50°C to 135°C supports diverse industrial environments. Applications include process control, automation, mining, locomotives, crane hoists, solar panels, and load cells.
This enclosure is aligned with ISO 9001:2008 and IEC 80079-34:2011 quality standards, ensuring reliable performance in critical applications. It complies with protection class EN60529 and mechanical strength standards, making it a trusted choice for industrial electrical enclosures.
Explore more RS PRO industrial enclosures in the Electronics & Electricals category at EnvMart for comprehensive solutions to your electrical protection needs.
Explore more products in our General Purpose Enclosures category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This enclosure has external dimensions of 150 mm in width, 150 mm in length, and 34 mm in height.
It operates effectively within a service temperature range of -50°C to 135°C.
The enclosure is rated IP65, IP66, IP67, and IP68, providing excellent sealing against dust and water ingress.
Yes, it is certified for use in explosive atmospheres with ATEX and IECEx approvals.
This model has an IK09 impact resistance rating, indicating its ability to withstand mechanical shocks.
It is constructed from AISi 12 diecast aluminium with a grey powder coated finish.
The enclosure is equipped with a silicon gasket for superior sealing capabilities.
It meets the mechanical strength requirements in accordance with the 60079-0 standard, with an impact energy resistance of 7 Nm.
It supports internal and external earthing for cable sizes ranging from 4 mm² to 120 mm².
It is suitable for various applications including industrial, process control, automation, mining, and transportation.
It complies with protection class EN60529, ensuring reliable performance against environmental factors.
The country of origin for this enclosure is India.
