Nexperia Digital Transistor 100 mA NPN 50 V 6-Pin UMT PUMH2,115

Nexperia PUMH2,115 digital transistor is a high-performance 6-pin NPN bipolar transistor designed for efficient digital switching and amplification applications. With a maximum DC collector current of 100 mA and a collector-emitter voltage of 50 V, this device is ideal for use in compact digital circuits where space and reliability are critical.

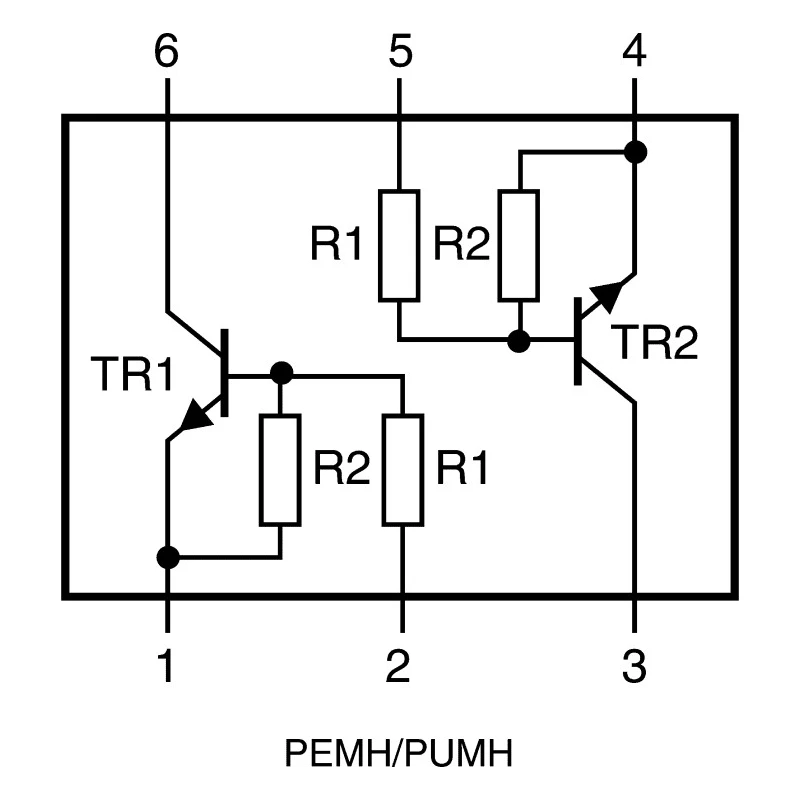

The transistor is housed in a UMT surface mount package measuring 2.2 mm by 2.2 mm in size with a height of 1.1 mm, allowing seamless integration onto printed circuit boards. It incorporates dual resistors that simplify circuit design by allowing the transistor to be driven directly from digital outputs without additional external resistors.

With a maximum power dissipation of 200 mW and an operating temperature range from -65°C to 150°C, the PUMH2,115 ensures robust performance in harsh environments, including automotive applications where compliance with AEC-Q101 standards is necessary. Its high transition frequency of 230 MHz supports fast switching operations required in modern electronics.

This product is RoHS compliant, confirming its adherence to environmental and safety standards. The isolated transistor configuration and the NPN polarity provide versatile use in a variety of circuits ranging from signal amplification to switching roles in consumer electronics, industrial controls, and automotive electronics.

Supports a maximum collector current of 100 mA. Maximum collector-emitter voltage rating is 50 V. Packaged in a small 6-pin UMT surface mount. NPN transistor polarity with isolated configuration. Maximum power dissipation of 200 mW ensuring reliability.

Operational temperature range from -65°C to 150°C. High transition frequency of up to 230 MHz for fast switching. Integrated dual resistors enable easy use in digital circuits. Compliant with RoHS and automotive AEC-Q101 standards.

Compact dimensions of 2.2 mm length, 2.2 mm width, and 1.1 mm height.

This Digital Transistor is suitable for use in industrial, automotive, and electronic manufacturing sectors requiring reliable bipolar transistors with integrated bias resistors. Browse additional bipolar transistors and semiconductor products available at EnvMart for your circuit design needs.
