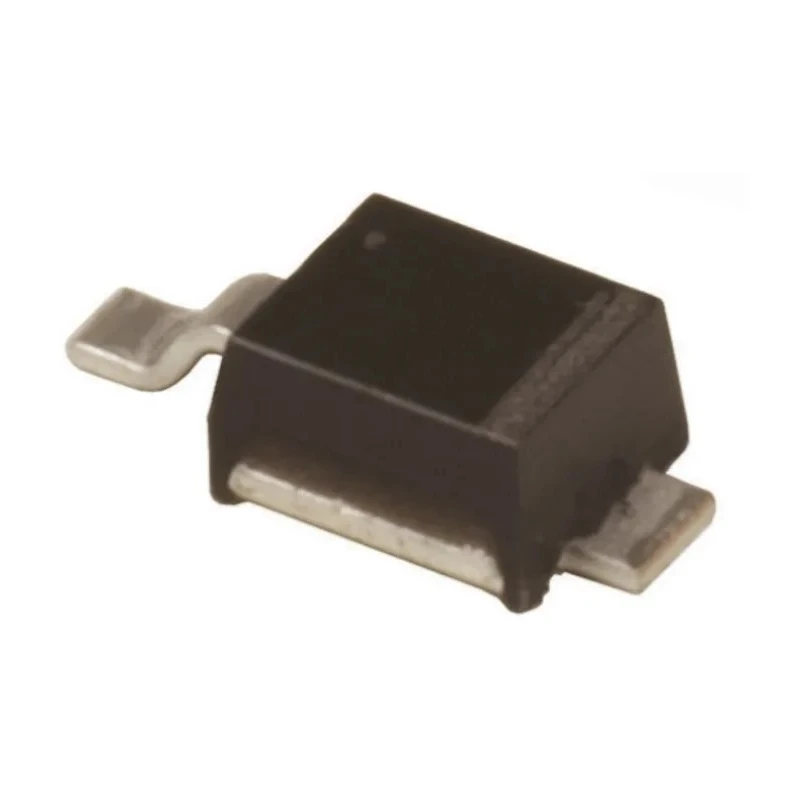

onsemi 40 V 1 A Surface Mount Schottky Diode POWERMITE 2-Pin MBRM140T1G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.15mm |
| Length | 2.18mm |
| Model | MBRM140T1G |
| Width | 2.05mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Package Type | POWERMITE |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 550mV |
Key Features
- The POWERMITE package ensures compact and lightweight surface mount design.
- This diode supports peak non-repetitive forward surge current up to 50 A.
- Operating temperature range is from -55°C up to 125°C.
- Maximum forward voltage drop is 550 mV, enhancing power efficiency.
- It features a 2-pin configuration suitable for automated assembly in compact electronics.
- Peak reverse current is low at 500 μA, suitable for low leakage applications.
- AEC-Q101 automotive qualified, ensuring reliable performance in automotive environments.
- Designed for high-frequency rectification, polarity protection, and freewheeling applications.
Product Description
onsemi MBRM140T1G is a 40 V, 1 A Schottky diode in a POWERMITE 2-pin surface mount package designed for efficient and compact power rectification applications. This diode employs the Schottky barrier principle, which provides an optimal forward voltage drop and low reverse current, making it ideal for high-frequency switching circuits.
The device supports a maximum continuous forward current of 1 A, with a peak non-repetitive forward surge capability of 50 A, enabling it to handle transient conditions and surge currents effectively. Operating within a temperature range of -55°C to 125°C, it is built to sustain harsh environments common in automotive and industrial applications.
Its low maximum forward voltage of 550 mV enhances power efficiency, and the minimal peak reverse current of 500 μA reduces leakage losses. The small form factor with dimensions length 2.18 mm, width 2.05 mm, and height 1.15 mm suits space-constrained designs requiring automated board assembly.
The MBRM140T1G diode is compliant with AEC-Q101 automotive standards, ensuring robustness and reliability for automotive electronics. It is suitable for use in rectification, polarity protection, freewheeling, and other switching applications where fast recovery and low forward voltage are critical.
This diode is epoxy moulded for stress protection and lightweight, weighing approximately 11.7 mg, contributing to overall device compactness and durability. The POWERMITE package ensures compact and lightweight surface mount design.
Support for peak non-repetitive forward surge current up to 50 A. Wide operating temperature range from -55°C to 125°C. Forward voltage drop of 550 mV for efficient power conversion. 2-pin configuration suitable for automated assembly.
Low peak reverse current minimizes leakage losses. Meets AEC-Q101 automotive quality standards. Ideal for high-frequency rectification and polarity protection. Epoxy moulded case for stress protection and durability.
This Schottky diode from onsemi is a reliable choice for electronic, automotive, and industrial applications requiring efficient surface mount rectification components. Explore more products in the Schottky Diodes & Rectifiers category at EnvMart for comprehensive electronic component solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this diode is 1 A.
The peak reverse repetitive voltage rating is 40 V.
It operates within a temperature range of -55°C to 125°C.
The maximum forward voltage drop is 550 mV.
This model supports a peak non-repetitive forward surge current of up to 50 A.
It features a single diode configuration with a 2-pin count.
The dimensions are 2.18 mm in length, 2.05 mm in width, and 1.15 mm in height.
The peak reverse current is low at 500 μA.
Yes, it is compliant with AEC-Q101 automotive standards.
It uses a POWERMITE package type for surface mounting.
This diode is suitable for high-frequency rectification, polarity protection, and freewheeling applications.
The country of origin is India.
