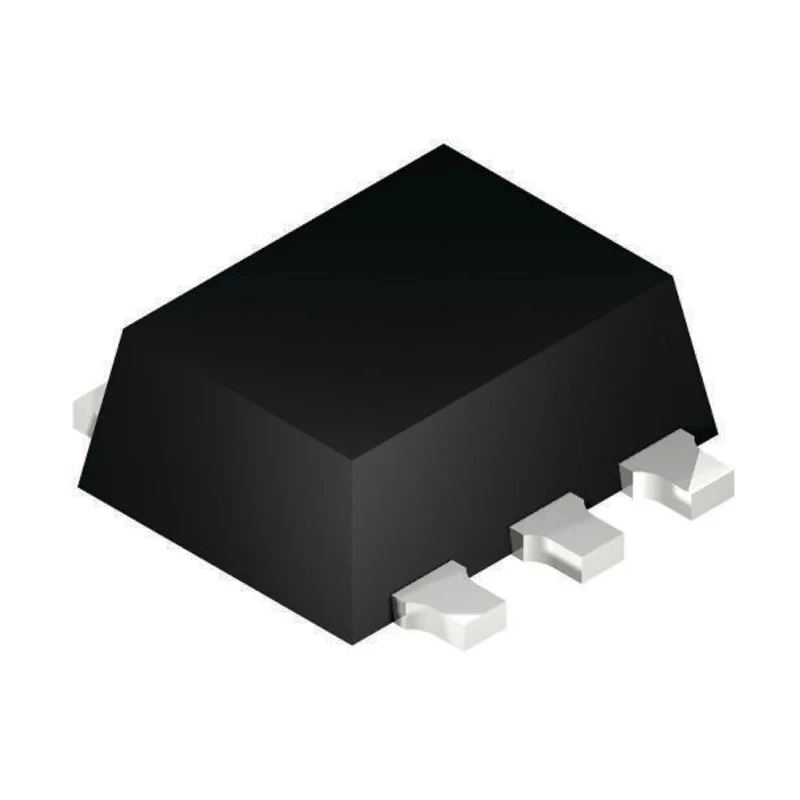

STMicroelectronics 5-Element Uni-Directional TVS Diode 150W 6-Pin SOT-666 ESDA6V1-5P6

STMicroelectronics ESDA6V1-5P6 is a 5-element uni-directional transient voltage suppression (TVS) diode designed for robust ESD and transient overvoltage protection in electronic circuits. This component features a common anode diode configuration optimized for uni-directional conduction to absorb voltage spikes effectively.

Delivering a peak pulse power dissipation of 150 watts in a compact 6-pin SOT-666 surface mount package, the diode supports protection in applications requiring small form factor and high reliability. The device operates over a wide temperature range from -40°C to 150°C, suitable for harsh industrial, consumer electronics, and automotive environments.

With a minimum breakdown voltage of 6.1 V and a maximum reverse stand-off voltage of 3 V, this TVS diode safeguards sensitive circuitry against damaging transient voltages. The low leakage current of 500 nA ensures minimal impact on circuit performance during normal operation.

The component’s chip contains five elements, enhancing its transient voltage suppression capability while maintaining small size at 1.7 mm length, 1.3 mm width, and 0.6 mm height. Surface mount technology compatibility allows integration on automated assembly lines improving production efficiency.

Key uses include protection of power lines, signal lines, and interfaces in industrial controllers, communication equipment, and automotive electronics where reliable ESD protection is critical for device longevity.

This diode features a common anode configuration for uni-directional transient voltage suppression. The device protects electronic circuits with a minimum breakdown voltage of 6.1 volts and maximum reverse stand-off voltage of 3 volts.

Designed for ESD protection with five elements per chip enhancing transient voltage absorption capacity. Suitable for operation from -40°C to 150°C ensuring reliable performance in industrial environments. Compact dimensions of 1.7 mm in length, 1.3 mm in width, and 0.6 mm in height allow integration in tight PCB layouts.

Low maximum reverse leakage current of 500 nA supports sensitive applications. Surface mount mount type allows efficient automated assembly processes. This diode is ideal for protection of sensitive electronics in consumer, industrial, and automotive systems.
