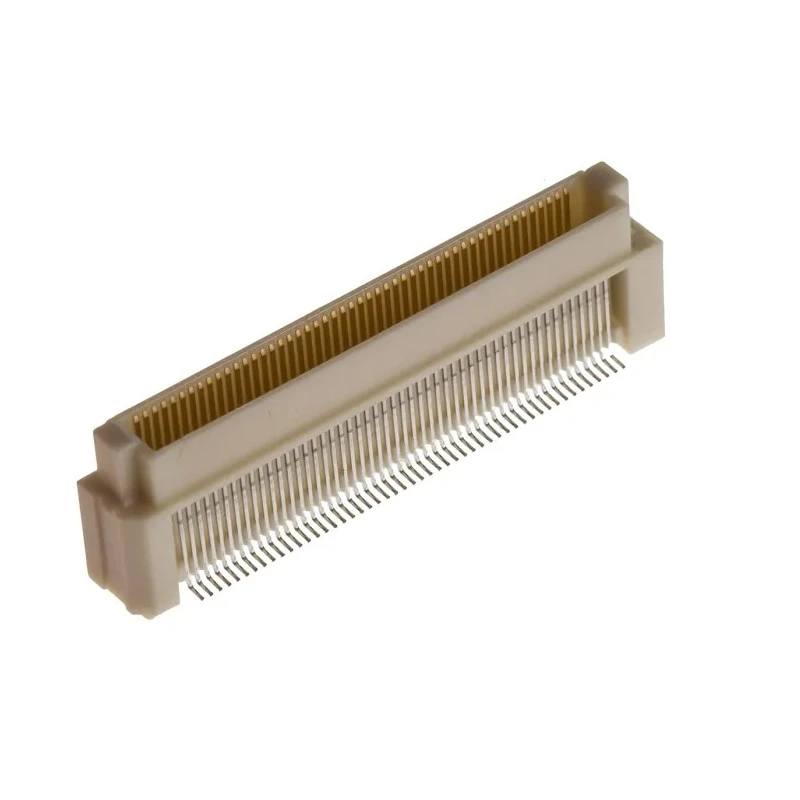

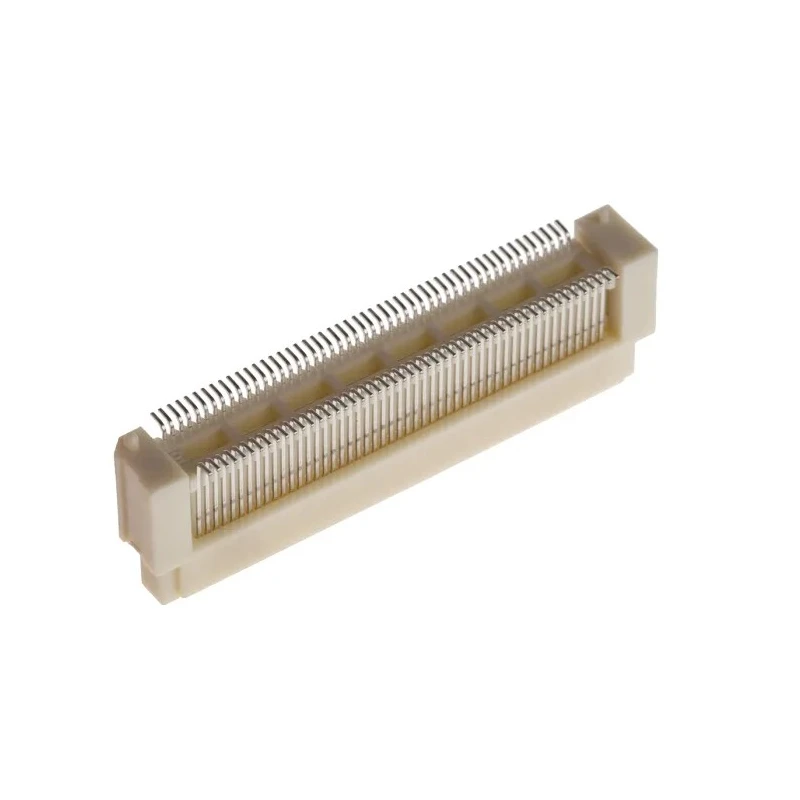

Hirose FunctionMAX FX8C Series Straight Surface PCB Header, 100 Contacts, 0.6 mm Pitch, 2 Row, Shrouded

Hirose FX8C-100P-SV6(91) FunctionMAX FX8C Series Straight Surface PCB Header is a 100 contact, 0.6 mm pitch, 2-row shrouded connector designed for high-speed board-to-board connections in industrial and commercial electronics.

This surface-mounted PCB header features a robust polyphenylene sulphide housing and phosphor bronze contacts with gold plating to ensure high reliability and signal integrity. It operates efficiently within a temperature range of -55°C to 85°C, supporting a current of up to 400 mA and a voltage rating of 100 V.

The functional design incorporates built-in mating guide ribs that allow a self-alignment tolerance of ±0.6 mm, facilitating easier mating and flexible design integration. The connectors’ spring deflection contact design contributes to increased reliability and durability over repeated insertions.

Additional design features include alignment bosses and uniquely positioned guide posts on the PCB to prevent misinsertion and enhance mounting accuracy. The FunctionMAX FX8C connectors provide a wide stacking height range, making them adaptable across various board configurations.

This PCB header supports high-speed data transmission up to 3.125 Gbit/s, making it suitable for demanding applications such as servers, broadcast equipment, industrial machinery, medical devices, and point-of-sale terminals.

The product is manufactured in Japan, assuring quality and compliance with industrial manufacturing standards. Supports a current rating of 400 mA for reliable electrical performance. Constructed with a polyphenylene sulphide housing for enhanced durability.

Phosphor bronze contacts plated with gold ensure excellent conductivity. Designed for board-to-board connection with straight orientation and surface mount type. Operates reliably between -55°C and 85°C temperature range.

Features built-in mating guide ribs allowing +/- 0.6 mm misalignment tolerance. Offers high-speed transmission capability up to 3.125 Gbit/s. Includes alignment bosses and guide posts to prevent misinsertion and aid PCB mounting.

Termination is solder type with male contact gender. Ideal for usage in industrial, medical, broadcast, and POS terminal equipment. Explore more Hirose connectors and PCB header solutions at EnvMart for industrial, commercial, and advanced technological applications.
