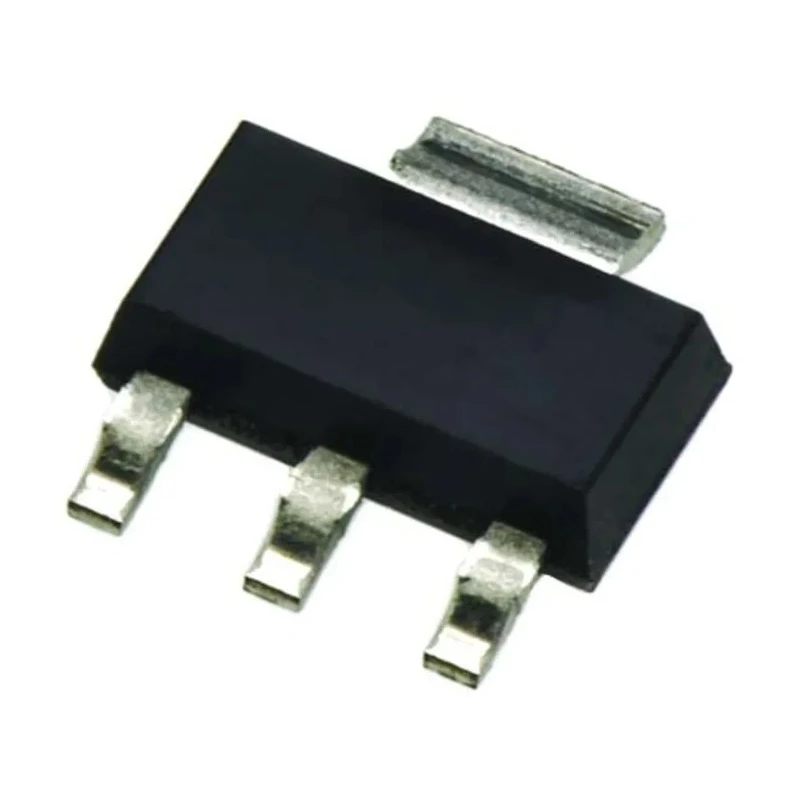

onsemi Bipolar Transistor PNP 1 A, Collector Emitter Voltage 20 V, 4-Pin SOT-223 Package BCP69T1G

onsemi BCP69T1G Bipolar Transistor is a high-performance PNP transistor designed for general-purpose applications requiring robust current handling up to 1 ampere and collector emitter voltage of 20 volts. Packaged in a compact 4-pin SOT-223 surface-mount package, this transistor offers excellent thermal dissipation with a maximum power rating of 1.5 watts.

This transistor features a single transistor configuration with a minimum DC current gain (hFE) of 50, making it reliable for switching and amplification circuits. Its rated maximum operating temperature of 150°C allows use in demanding industrial and automotive environments.

The physical dimensions of 6.7 mm length, 3.7 mm width, and 1.75 mm height enable dense PCB layouts while ensuring mechanical durability. Compliance with the AEC-Q101 automotive standard certifies suitability for automotive electronics requiring high reliability and quality.

This onsemi BCP69T1G transistor finds applications in electronic circuits such as power amplification, switching, and general semiconductor device use in industrial, automotive, and commercial environments. Its surface mount design supports advanced manufacturing processes.

Maximum DC collector current 1 A. Collector emitter voltage 20 V. PNP transistor polarity and single configuration. SOT-223 package with 4 pins. Minimum hFE of 50. Power dissipation up to 1.5 W. Operating temperature range up to 150°C.

Explore the onsemi range of Bipolar Transistors for diverse industrial and automotive electronic applications at EnvMart.
