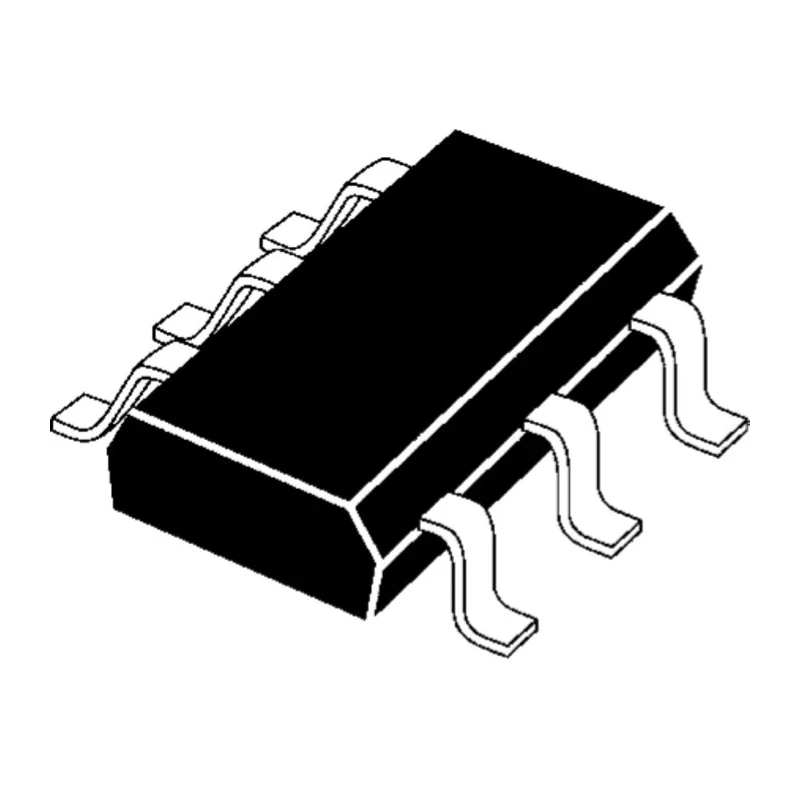

onsemi NPN Transistor, 600 mA, 40 V, 6-Pin SOT-363, Surface Mount MBT2222ADW1T1G

Free Delivery in India | Lowest Global Shipping Charges

onsemi NPN Transistor, 600 mA, 40 V, 6-Pin SOT-363, Surface Mount MBT2222ADW1T1G

Name: onsemi NPN Transistor, 600 mA, 40 V, 6-Pin SOT-363, Surface Mount MBT2222ADW1T1G
Brand: onsemi
SKU: 132602
Price: 0.05 USD
Availability: InStock



Category Bipolar Transistors Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	1.1mm
Length	2.2mm
Model	MBT2222ADW1T1G
Width	2.2mm
Mount Type	Surface
Maximum Operating Temperature	150°C
Package Type	SOT-363
Minimum Operating Temperature	-55°C
Pin Count	6
Maximum Collector Emitter Voltage Vceo	40V
Minimum DC Current Gain hFE	35
Transistor Polarity	NPN
Maximum Emitter Base Voltage VEBO	6V
Maximum Collector Base Voltage VCBO	75V
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	150mW
Maximum DC Collector Current Idc	600mA
Transistor Configuration	Isolated
Maximum Transition Frequency ft	100MHz
onsemi SBC847CDW1G Dual NPN Transistor, 100 mA, 45 V, 6-Pin SOT-363Brand	onsemi

Key Features

Maximum DC collector current of 600 mA for strong switching applications.
Collector-emitter voltage rating of 40 V ensuring reliable operation under moderate voltages.
Surface mount package type SOT-363 allows compact PCB layout.
High transition frequency of 100 MHz supports high-speed switching.
Automotive qualified to AEC-Q101 standard for enhanced reliability.
Operating temperature range from -55°C to 150°C ensuring wide environmental tolerance.
Minimum DC current gain (hFE) of 35 for effective amplification.
Six-pin isolated transistor configuration providing easy integration.

Product Description

onsemi MBT2222ADW1T1G is a general purpose NPN bipolar junction transistor designed for electronic switching and amplification applications in compact surface mount form factor. Rated to handle a maximum collector current of 600 mA and collector-emitter voltage of 40 V, it fits well in signal and low power digital circuits.

The transistor comes in a 6-pin SOT-363 package suitable for surface mounting, ensuring minimal footprint on printed circuit boards. Its isolated transistor configuration eases PCB layout and circuit design for various electronic products.

This device offers a transition frequency of 100 MHz, making it well-suited for medium-frequency switching and amplification tasks in automotive and industrial sectors. It meets the AEC-Q101 automotive standard, indicating its enhanced reliability and suitability for harsh automotive environments.

Operating temperature ranges from -55°C to 150°C allow deployment in diverse temperature conditions. Its minimum DC current gain of 35 supports effective signal amplification, while a maximum power dissipation of 150 mW ensures safe thermal operation.

Dimensionally, the transistor is compact with a length and width of 2.2 mm each and a height of 1.1 mm, enabling space-efficient electronic assemblies. Maximum DC collector current: 600 mA. Maximum collector-emitter voltage: 40 V.

Surface mount SOT-363 package with 6 pins. High transition frequency of 100 MHz. Automotive qualified to AEC-Q101 standard. Operating temperature range: -55°C to 150°C. Minimum DC current gain: 35. Maximum power dissipation: 150 mW.

Compact dimensions: 2.2 mm x 2.2 mm x 1.1 mm.

This transistor is ideal for use in industrial electronics, automotive electronics, telecommunications, and consumer electronic equipment requiring reliable switching and amplification performance in a compact surface mount package.
