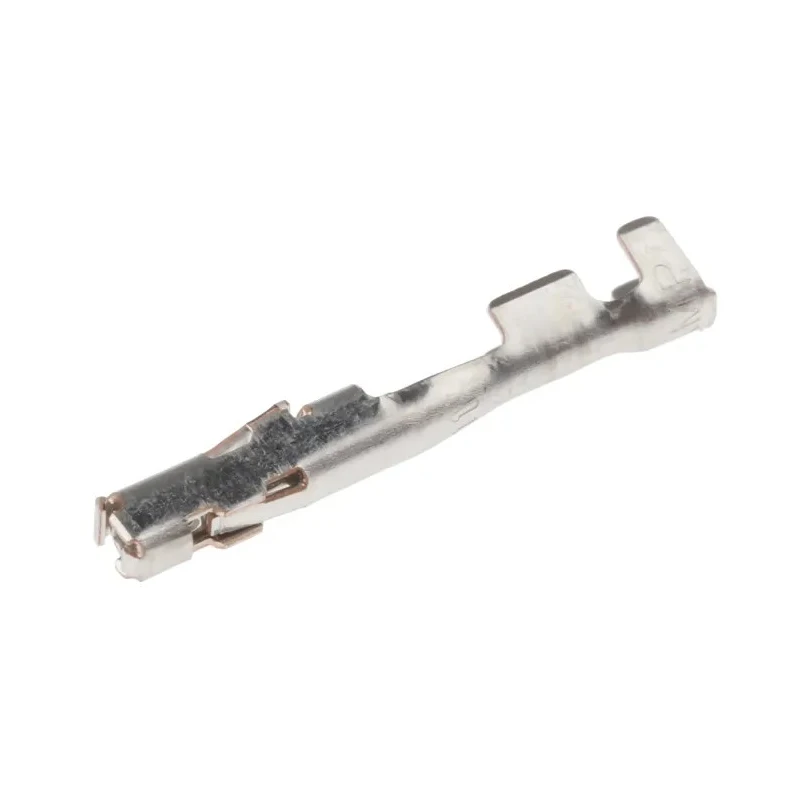

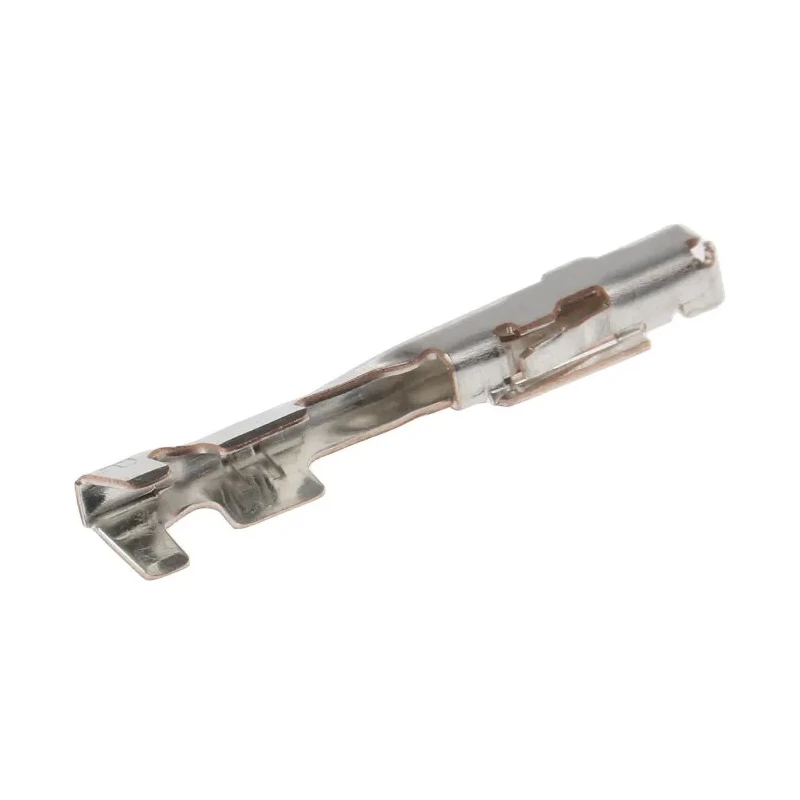

TE Connectivity MULTILOCK 025 Series Female Crimp Terminal 24 AWG Min, 20 AWG Max 1318143-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -30 - 105 °C |
| Current | 15A |
| Gender | Female |
| Contact Material | Copper Alloy |
| Series | MULTILOCK 025 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| For Use With | MULTILOCK 025 Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.5mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 20AWG |
| Low level resistance | 10 mΩ max (initial) |
| Overall resistance | 20 mΩ max (final) |
Key Features
- Compatible with MULTILOCK 025 Connector Housing for reliable connections.
- Rated for a current capacity of 15A, suitable for diverse electrical applications.
- Constructed with copper alloy contact material and tin plating ensuring durability.
- Supports crimp termination type for secure wire fixing.
- Operates reliably within a temperature range of -30°C to 105°C.
- Engineered for snap-in fixing in connector cavities, enhancing connector stability.
- Low initial contact resistance of 10 mΩ max and overall resistance of 20 mΩ max.
- Ideal for applications requiring robust and high-density connector solutions.
Product Description
TE Connectivity 1318143-1 MULTILOCK 025 Series Female Crimp Terminal is engineered to provide a solid mechanical connection for wires ranging from 24 AWG to 20 AWG. This female crimp terminal is designed to fit MULTILOCK 025 Connector Housings, offering a reliable and durable connection solution especially suited for automation and industrial usage.
Constructed from a copper alloy contact material and plated with tin, this terminal assures long-lasting conductivity and corrosion resistance. The crimp termination method ensures secure wire retention. It supports a current rating of 15A and operates efficiently within temperatures from -30°C to 105°C, offering stability under demanding environmental conditions.
The terminal’s snap-in fixing design allows for easy assembly within connector cavities, enhancing mechanical robustness. Low contact resistance characteristics optimize electrical performance, making it suitable for high-density wiring tasks and signal transfer applications, such as automotive and industrial automation industries.
This product is part of TE Connectivity’s MULTILOCK connector series, known for wire-to-wire and wire-to-board solutions with 2.5mm contact centers. The connector system includes both female and male socket type contacts, supporting versatile configurations required in complex electrical assemblies.
The MULTILOCK 025 Series Female Crimp Terminal facilitates efficient electrical connections, improving device reliability and system longevity in demanding industrial and electronic component applications.
Compatible with MULTILOCK 025 Connector Housing for reliable connections. Rated for a current capacity of 15A, suitable for diverse electrical applications. Constructed with copper alloy contact material and tin plating ensuring durability.
Supports crimp termination type for secure wire fixing. Operates reliably within a temperature range of -30°C to 105°C. Engineered for snap-in fixing in connector cavities, enhancing connector stability. Low initial contact resistance of 10 mΩ max and overall resistance of 20 mΩ max.
Ideal for applications requiring robust and high-density connector solutions. Explore more industrial electronic components and connectors on EnvMart for advanced wiring and assembly solutions.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current capacity of 15A, making it suitable for various electrical applications.
It is designed to accommodate wire sizes ranging from 24 AWG to 20 AWG.
The terminal operates reliably within a temperature range of -30°C to 105°C.
The contacts are constructed from copper alloy and are plated with tin for enhanced conductivity and corrosion resistance.
The crimp termination method ensures secure wire retention, providing a solid mechanical connection for the wires.
It features a low initial contact resistance of 10 mΩ max, optimizing electrical performance.
Yes, it is engineered to fit MULTILOCK 025 Connector Housings, ensuring reliable connections.
The overall resistance is 20 mΩ max, ensuring efficient electrical connections.
It is ideal for applications requiring robust and high-density connector solutions, particularly in automation and industrial settings.
The terminal features a snap-in fixing design that enhances mechanical robustness during assembly within connector cavities.
This model is a female crimp terminal, designed to work with corresponding male contacts.
The terminal is manufactured in India.
