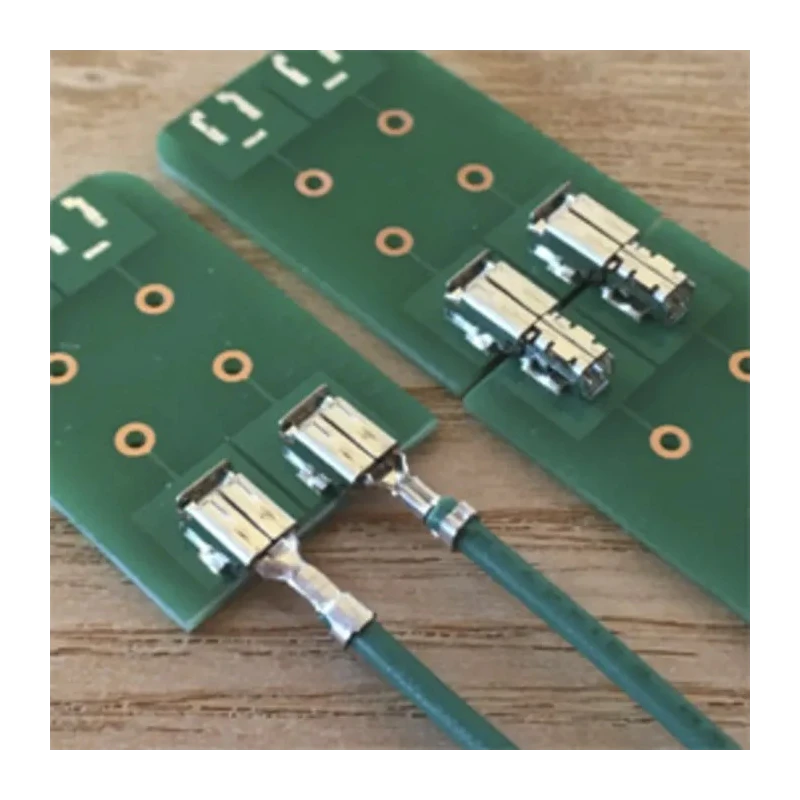

JST LEK Series Straight PCB Socket 1-Contact 1.25 mm Pitch Solder LEK-01RS-2RPT-TL
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | JST |
| Orientation | Straight |
| Current | 3A |
| Model | LEK-01RS-2RPT-TL |
| Mount Type | PCB |
| Housing Material | Phosphor Bronze |
| Contact Material | Bronze |
| Series | LEK |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | Receptacle |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Number of Contacts | 1 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Stacking Height | 4.25mm |
Key Features
- Features a secure locking structure that absorbs misalignment during mating.
- Constructed with phosphor bronze housing material for durability.
- Supports a current rating of 3A with tin-plated bronze contacts.
- Designed for PCB mounting with a stacking height of 4.25 mm.
- Operating temperature range from -55°C to 85°C ensures reliable performance.
- Complies with RoHS standards ensuring environmental compliance.
- Female contact gender suitable for receptacle use in electronic applications.
Product Description
JST LEK-01RS-2RPT-TL PCB Socket is a high-precision electronic component specifically designed for board-to-board connections with a 1.25 mm pitch. Featuring a straight orientation and a single contact in one row, this socket offers reliable solder termination for PCB mounting applications.
The phosphor bronze housing and bronze contacts with tin plating provide excellent conductivity and long-lasting durability, ideal for demanding industrial and electronic environments. This connector supports a current of 3 amperes and maintains performance across a wide temperature range from -55°C to 85°C, making it suitable for diverse operating conditions.
The secure locking structure incorporated in the LEK series absorbs misalignment during connector mating to ensure stable and secure connections. Its compact stacking height of 4.25 mm allows efficient space utilization on PCBs. The LEK series socket is RoHS compliant, meeting environmental and safety standards.
This component is commonly used in industrial electronics, manufacturing equipment, control systems, and other applications requiring compact and reliable board-to-board connectivity solutions.
Features a secure locking structure that absorbs misalignment during mating. Phosphor bronze housing ensures durability and conductivity. Supports 3A current rating with tin-plated bronze contacts. PCB mount type with straight orientation for easy integration.
Operating temperature range of -55°C to 85°C for versatile use. Complies with RoHS for environmental safety. Compact stacking height of 4.25 mm optimizes PCB design space. Explore JST components and related PCB Sockets in the Electronics & Electricals category at EnvMart for reliable connector solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 3A, making it suitable for various electronic applications.
The pitch size of the JST LEK-01RS-2RPT-TL is 1.25 mm, designed for board-to-board connections.
It operates effectively within a temperature range of -55°C to 85°C, ensuring reliable performance in diverse conditions.
The housing is made of phosphor bronze, while the contacts are bronze with tin plating, providing good conductivity and durability.
The stacking height of the JST LEK-01RS-2RPT-TL is 4.25 mm, allowing for efficient space utilization on PCBs.
This socket features a solder termination type, which is standard for PCB mounting applications.
Yes, the JST LEK-01RS-2RPT-TL complies with RoHS standards, ensuring it meets environmental safety requirements.
The orientation of this model is straight, designed for easy integration into PCB layouts.
This model has a female contact gender, suitable for receptacle use in electronic applications.
The JST LEK-01RS-2RPT-TL features a single contact in one row, designed for specific board-to-board connections.
It utilizes a board-to-board connector system, making it ideal for applications requiring secure connections between PCBs.
This connector is manufactured in Japan, ensuring adherence to high manufacturing standards.
