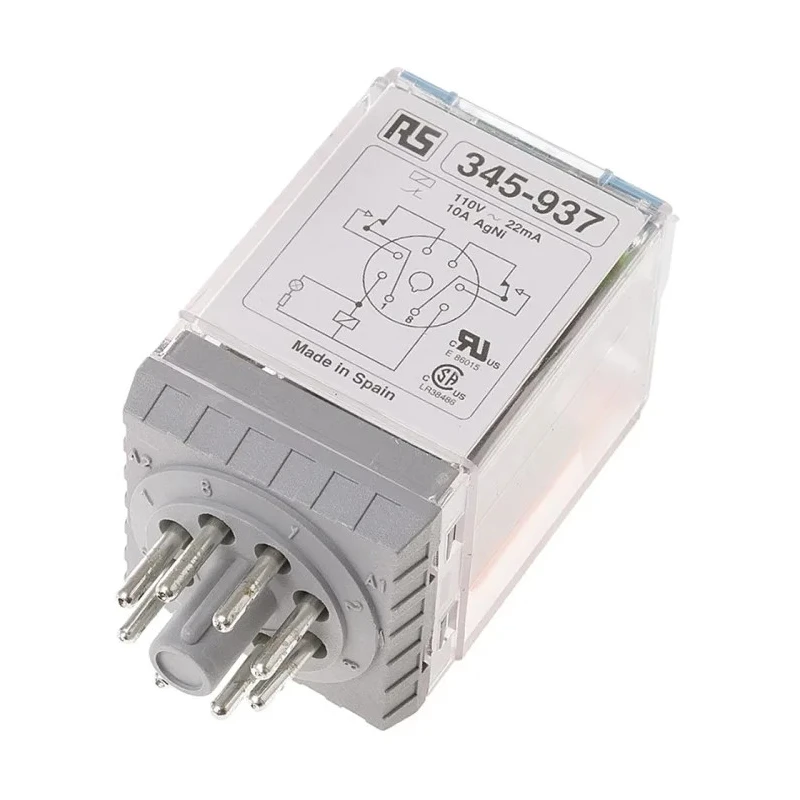

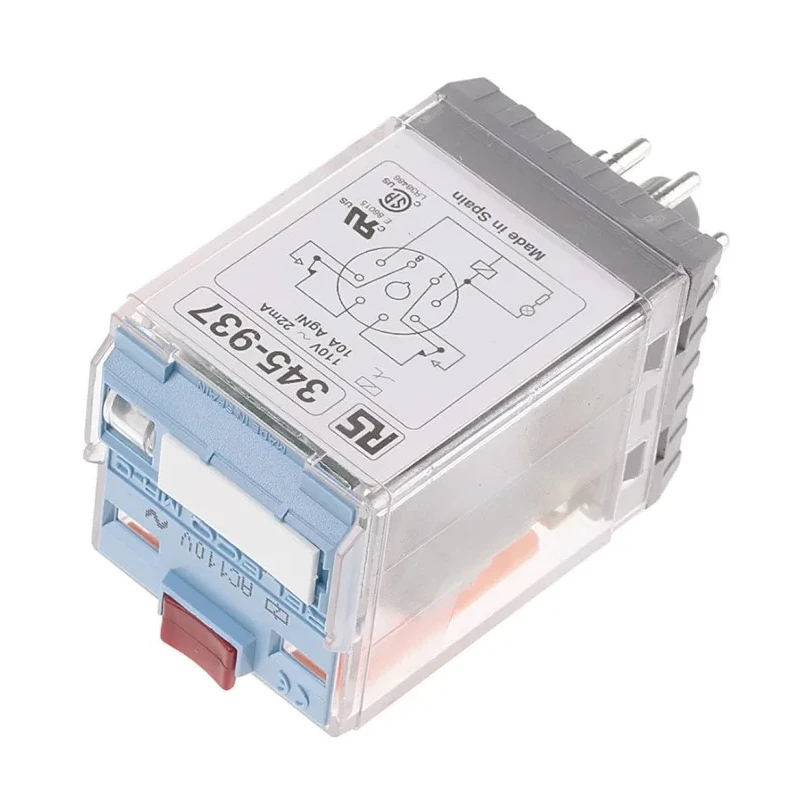

Releco Power Relay with 115V AC Coil, 10A Switching Current, DPDT Contact Configuration C2-A20X / AC 115V

Releco C2-A20X / AC 115V Power Relay is designed for precise and reliable switching in electrical and automation systems, featuring a 115V AC coil and DPDT contact configuration. It supports a switching current of up to 10A and is suitable for industrial, commercial, HVAC, and manufacturing control applications.

This power relay includes a plug-in terminal type for straightforward installation and replacement. It operates efficiently with coil resistance of 1 kΩ and coil power of 2.2W, with a maximum switching AC voltage rating of 250V and switching DC voltage up to 30V. The contact material is made of silver alloy, offering low contact resistance of 50mΩ and excellent durability for extended operational lifetime.

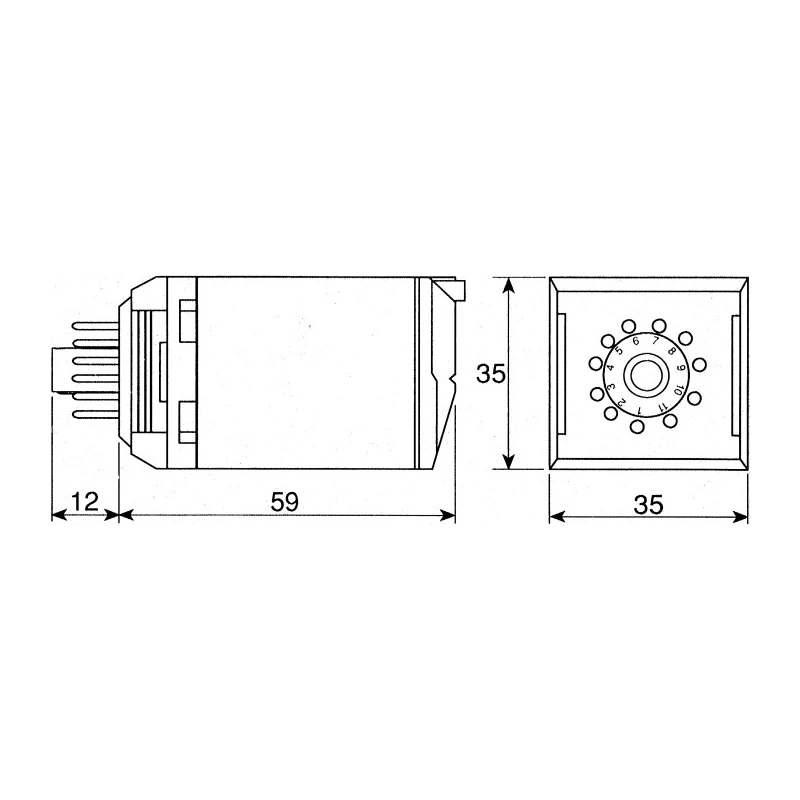

The relay is built to operate in harsh environments with minimum operating temperature of -40°C and maximum of 60°C, covering most industrial ambient conditions. Its compact form factor measures 66mm in height, and 35mm in both width and length, suiting tight installations on control panels or devices.

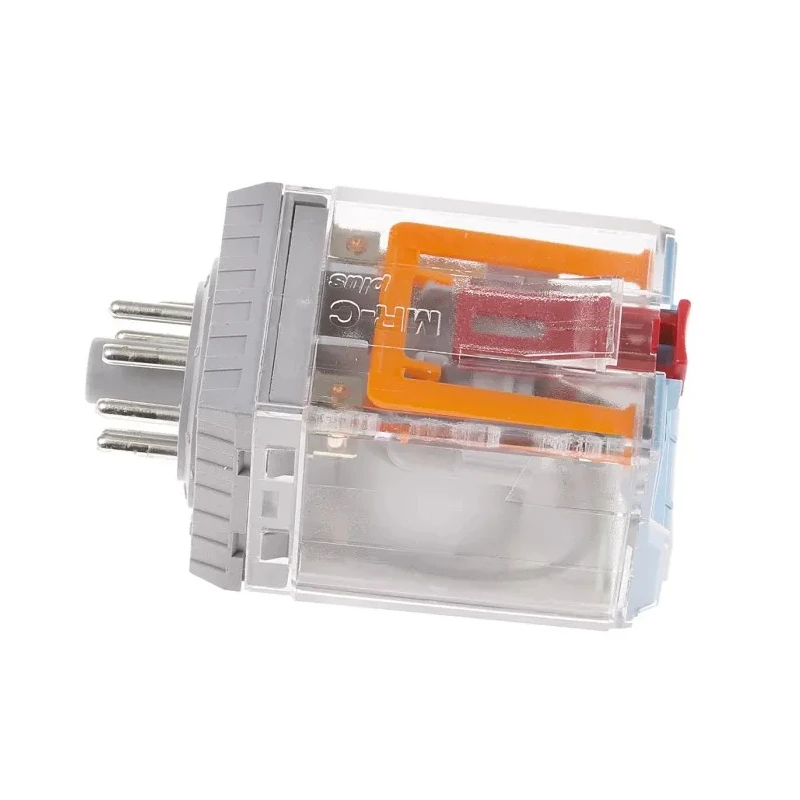

Additional features include a dual-function color-coded push button to test or latch the relay, mechanical flag indicator, and a coil LED that provides clear operational status signals. Compliance with RoHS standards ensures the relay is environmentally friendly and safe for use.

This product is ideal for industrial control circuits, power management systems, and automation equipment requiring reliable, high-performance switching devices that combine durability with user-friendly features.

Designed for a switching current capacity of 10A. Plug-In terminal type for easy installation and replacement. Operates reliably in temperature ranges from -40°C to 60°C. Contact material uses high-quality silver alloy ensuring excellent conductivity.

Features dual function test button with mechanical flag indicator and coil LED for status indication. Compact dimensions of 66mm height, 35mm width, and 35mm length enable integration into tight spaces. Compliance with RoHS environmental standards guarantees safe usage.

Coil resistance is 1 kΩ and coil power consumption is 2.2W providing efficient operation. Explore more Power Relays and electrical components at EnvMart for your automation and control needs.
