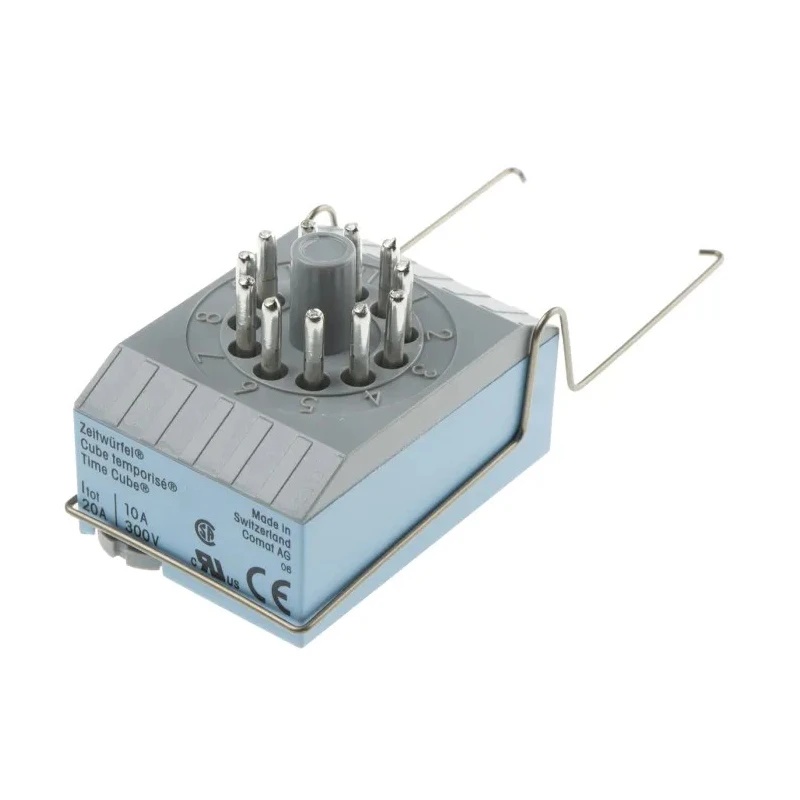

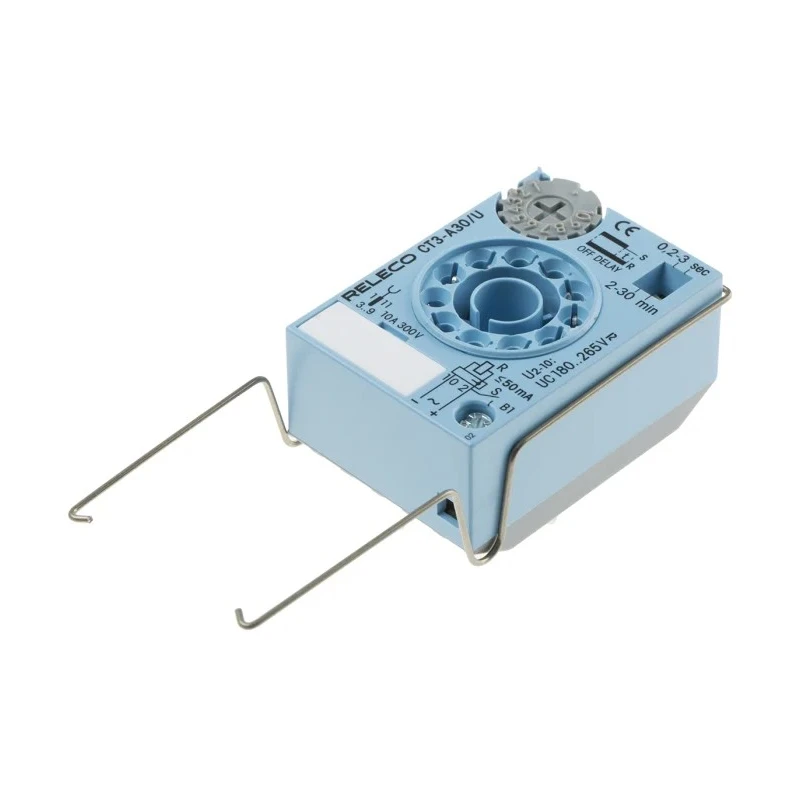

Releco CT3-A Series Timer Relay 3-Contact 220 V dc 0.2 to 30 min, 0.2 to 30 s OFF Delay CT3-A

Free Delivery in India | Lowest Global Shipping Charges

Releco CT3-A Series Timer Relay 3-Contact 220 V dc 0.2 to 30 min, 0.2 to 30 s OFF Delay CT3-A

Name: Releco CT3-A Series Timer Relay 3-Contact 220 V dc 0.2 to 30 min, 0.2 to 30 s OFF Delay CT3-A
Brand: Releco
SKU: 187679
Price: 211.79 USD
Availability: InStock



Category Timer Relay Brand Releco Condition New

Specifications

Country of Origin	Sri Lanka
Brand	Releco
Height	37mm
Length	50mm
Model	CT3-A
IP Rating	IP40
Mode	OFF Delay
Width	35mm
Series	CT3-A
Maximum Operating Temperature	60°C
Contact Configuration	3 CO
Minimum Operating Temperature	-25°C
Time Range	0.2 to 30 min, 0.2 to 30 s
Terminal type	11-Pin
Standards/Approvals	EN 60204-1, EN 292-2
Number of Contacts	3
Number of Timer Functions	1
Switching Voltage	400V
Contact Current	10A
Supply DC Voltage	220 V dc
Timing Adjustment	Dial
Supply AC Voltage	180, 265V ac
TIMER 11 PIN OFF 265V ADCBrand	Releco

Key Features

The relay supports a switching voltage up to 400 V.
It is configured with 3 change-over (CO) contacts.
Supply voltage compatibility includes 220 V dc and 180 to 265 V ac.
IP40 rated for protection and designed for industrial applications.
Operating temperature ranges from -25°C to 60°C for durable performance.
Timing adjustment is performed via a dial for fine tuning.
Equipped with an 11-pin terminal for plug-in installation.
Meets standards EN 60204-1 and EN 292-2, with UL and CSA approvals.

Product Description

Releco CT3-A Series Timer Relay model CT3-A is a reliable time relay designed for automation and electrical control applications operating at 220 V dc and supplying 180 to 265 V ac. This timer relay features an OFF Delay function with dual timing ranges from 0.2 to 30 minutes and 0.2 to 30 seconds, providing versatile timing control for industrial environments.

The device includes 3 change-over contacts (3 CO) supporting a switching voltage up to 400 V and contact current of 10 A. It is housed in a compact enclosure measuring 50mm in length, 35mm in width, and 37mm in height, and plugs in via an 11-pin terminal type for easy installation. The timing adjustments are precisely made through a dial and fine tuning is possible with a thumb wheel potentiometer integrated into the relay.

Rated IP40 for protection, the relay is built to operate reliably within the temperature range of -25°C to 60°C, ensuring durable performance in demanding industrial and automation systems. Its design complies with EN 60204-1 and EN 292-2 standards, and it holds UL and CSA certifications.

Manufactured in Sri Lanka, the CT3-A Series Timer Relay is suitable for use in industrial automation, electrical control panels, manufacturing machinery, HVAC systems, and other commercial applications requiring precise time-delay relay functions.

The relay supports a switching voltage up to 400 V. It is configured with 3 change-over (CO) contacts. Supply voltage compatibility includes 220 V dc and 180 to 265 V ac. IP40 rated for protection and designed for industrial applications.

Operating temperature ranges from -25°C to 60°C for durable performance. Timing adjustment is performed via a dial for fine tuning. Equipped with an 11-pin terminal for plug-in installation. Compact dimensions: 50 mm length, 35 mm width, and 37 mm height.

Meets standards EN 60204-1 and EN 292-2, with UL and CSA approvals. Manufactured in Sri Lanka ensuring quality construction. Explore a wide range of industrial relays and timer solutions on EnvMart for quality automation components.
