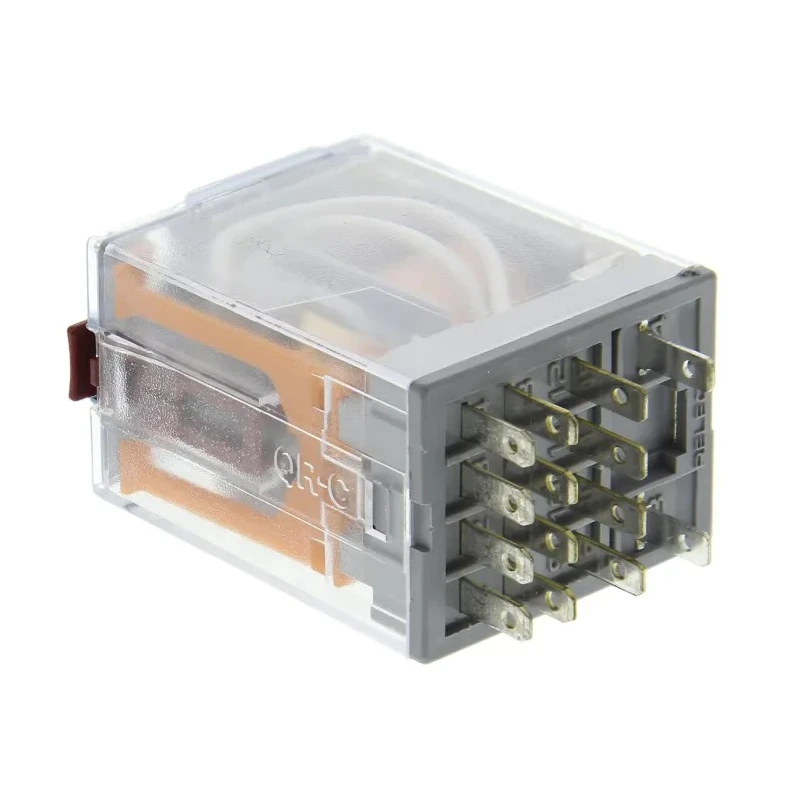

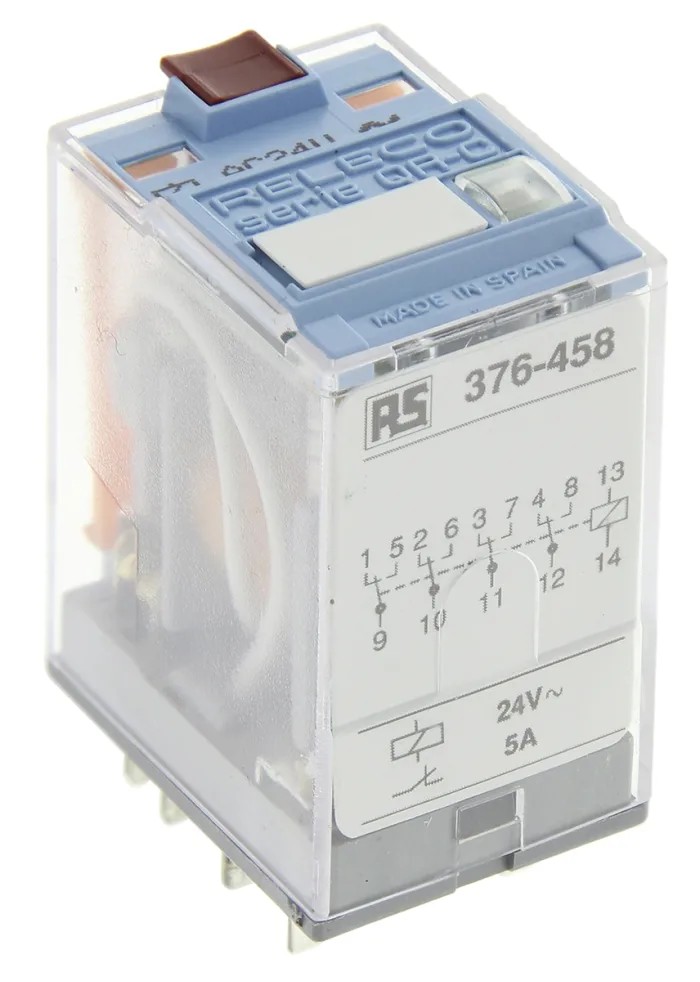

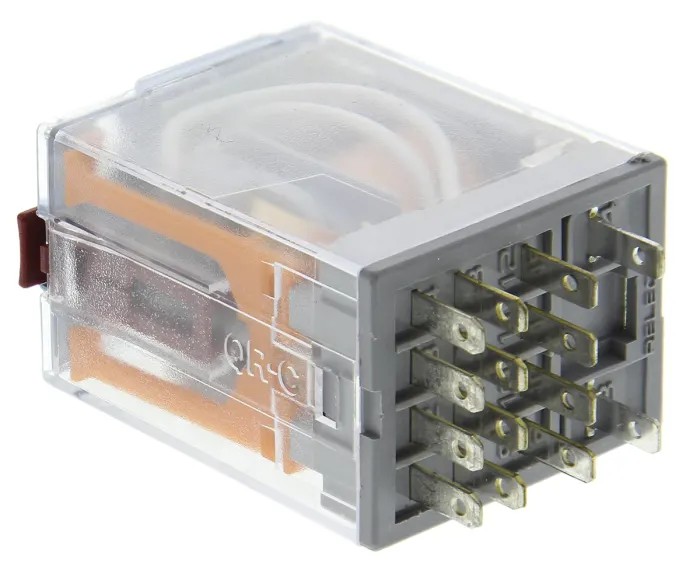

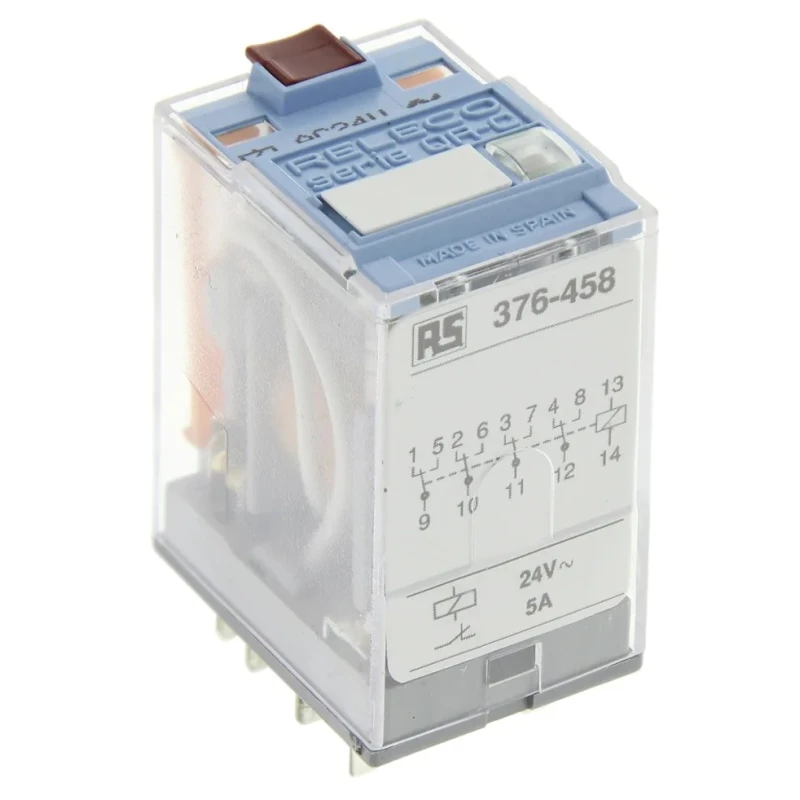

Releco DIN Rail Power Relay, 24V AC Coil, 5A Switching Current, 4PDT C9-A41X / AC 24 V

Releco C9-A41X / AC 24 V DIN Rail Power Relay is engineered for industrial and electrical automation applications where reliable switching is essential. This power relay features a 24V AC coil designed for efficient electromagnetic operation and a robust 4PDT (four-pole double-throw) contact configuration enabling multiple circuit switching in a compact form factor.

Designed for DIN rail mounting, this relay facilitates easy integration into control panels and automation systems. The relay's maximum switching current is 5 amperes with a switching power capacity of up to 1.25 kVA at 240V AC, supporting various power control tasks. Its gold plated contacts ensure optimal conductivity and reduce contact wear, thus enhancing longevity and performance.

The relay operates reliably within an ambient temperature range of -40°C to +60°C, making it suitable for a broad range of operating environments. A coil resistance of 174 ohms and coil power rating of 2.5 kW indicate controlled coil consumption. Additionally, it features a dual-function test button that provides a manual push-to-test and lift-to-latch operation, complemented by an LED indicator and mechanical flag indicator for clear operational status feedback.

Compact dimensions of 37.5 mm in height and 28 mm in length make it space-efficient for panel mounting. The relay complies with international safety and quality standards including UL, RoHS, IEC, EN, and CSA, ensuring compliance for industrial and commercial applications. Manufactured in Spain, the product delivers consistent high-quality performance suitable for electrical, automation, and industrial control environments.

Equipped with a 24V AC coil voltage for efficient operation. 4PDT contact configuration ensures versatile switching capabilities. Mountable on DIN rail for easy installation. Supports a switching current of 5 amperes and switching power of 1.25 kVA.

Gold plated contacts provide reliable electrical conductivity. Operates in temperature range from -40°C to 60°C. Includes a test button, LED indication, and mechanical flag indicator for status monitoring. Coil resistance of 174 ohms and coil power rated at 2.5 kW.

Compact dimensions: 37.5 mm height and 28 mm length. Certified to UL, RoHS, IEC, EN, and CSA standards.

This power relay is ideal for industrial automation, electrical control panels, signal conditioning, and manufacturing equipment requiring reliable switching solutions. Explore the extensive selection of Power Relays and DIN rail mounting accessories on EnvMart for your application needs.
