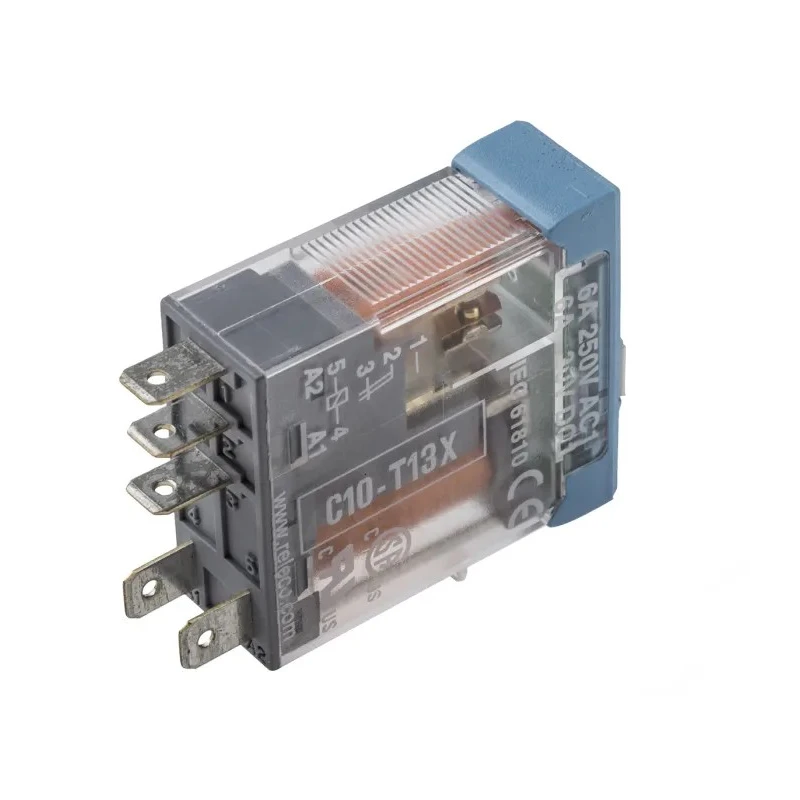

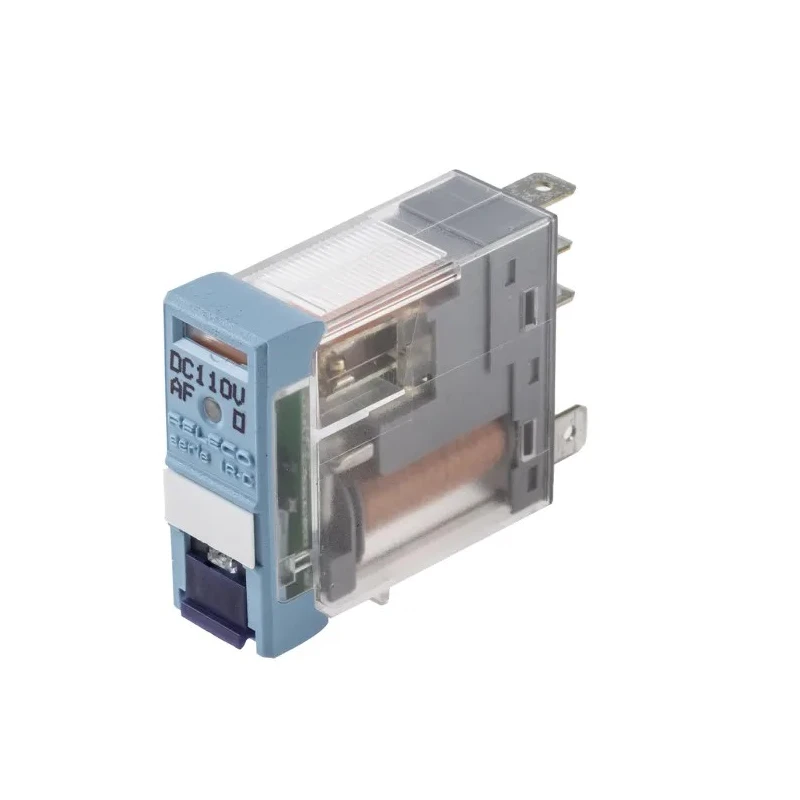

Releco PCB Power Relay 110V DC Coil 6A Switching Current SPDT C10-T13X / DC 110 V

Free Delivery in India | Lowest Global Shipping Charges

Releco PCB Power Relay 110V DC Coil 6A Switching Current SPDT C10-T13X / DC 110 V

Name: Releco PCB Power Relay 110V DC Coil 6A Switching Current SPDT C10-T13X / DC 110 V
Brand: Releco
SKU: 153648
Price: 68.19 USD
Availability: InStock



Category Power Relay Brand Releco Condition New

Specifications

Country of Origin	Spain
Brand	Releco
Height	35.4mm
Length	28.8mm
Model	C10-T13X / DC 110 V
Width	12.5mm
Mount Type	PCB
Contact Material	Gold Plated
Series	C10
Maximum Operating Temperature	60°C
Contact Configuration	SPDT
Minimum Operating Temperature	-40°C
Switching Current	6A
Terminal type	Quick Connect
Standards/Approvals	EN, CSA, IEC, RoHS, UL
Coil Resistance	19.9kΩ
Coil Voltage	110V dc
Switching AC Voltage	240V ac
Coil Power	650mW

Key Features

Equipped with a gold-plated contact material for enhanced conductivity and durability.
Designed for PCB mount with quick connect terminal type for easy installation.
Supports switching AC voltage up to 240V AC and switching power of 1.5kVA.
Operates reliably within -40°C to 60°C temperature range.
Coil resistance is 19.9kΩ with a coil power consumption of 650mW.
Compliant with EN, CSA, IEC, RoHS, and UL standards ensuring industrial safety and quality.

Product Description

Releco C10-T13X / DC 110 V PCB Power Relay is engineered for industrial and automation applications requiring precise control and reliable switching. Featuring a 110V DC coil and a single-pole double-throw (SPDT) contact configuration, this relay provides robust switching capabilities with a maximum switching current of 6A and switching power of 1.5kVA.

The relay’s gold-plated contacts ensure minimal contact resistance and long-lasting performance. It is designed for printed circuit board mounting with quick connect terminal types facilitating secure and straightforward wiring integration. The unit measures 35.4mm in height, 28.8mm in length, and 12.5mm in width, providing a compact profile suitable for dense PCB layouts.

Operating efficiently within a temperature range of -40°C to 60°C, the relay delivers consistent performance even in challenging industrial environments. The coil exhibits a resistance of 19.9kΩ consuming only 650mW of power, offering energy-efficient operation.

Approved by major standards including EN, CSA, IEC, RoHS, and UL, this relay guarantees compliance with rigorous safety and environmental regulations. It includes features such as a test button, LED indication, and mechanical flag indicator for convenient status monitoring and manual testing.

Typical applications include industrial automation, electrical control panels, signaling systems, HVAC equipment, and manufacturing machinery where reliable power switching and control are critical.

Gold-plated contact material ensures reliable conductivity and durability. PCB mount type with quick connect terminals enables easy installation. Supports 6A switching current and 240V AC switching voltage for versatile use.

Wide operating temperature range from -40°C to 60°C suits industrial environments. Energy-efficient coil with 19.9kΩ resistance and 650mW power consumption. Compact size fits tightly in control panels and PCBs. Certified to EN, CSA, IEC, RoHS, and UL standards for quality assurance.

This product is made in Spain, specifically suited for demanding industrial, laboratory, manufacturing, and HVAC applications. Browse the full range of Power Relays at EnvMart for complete control solutions.
