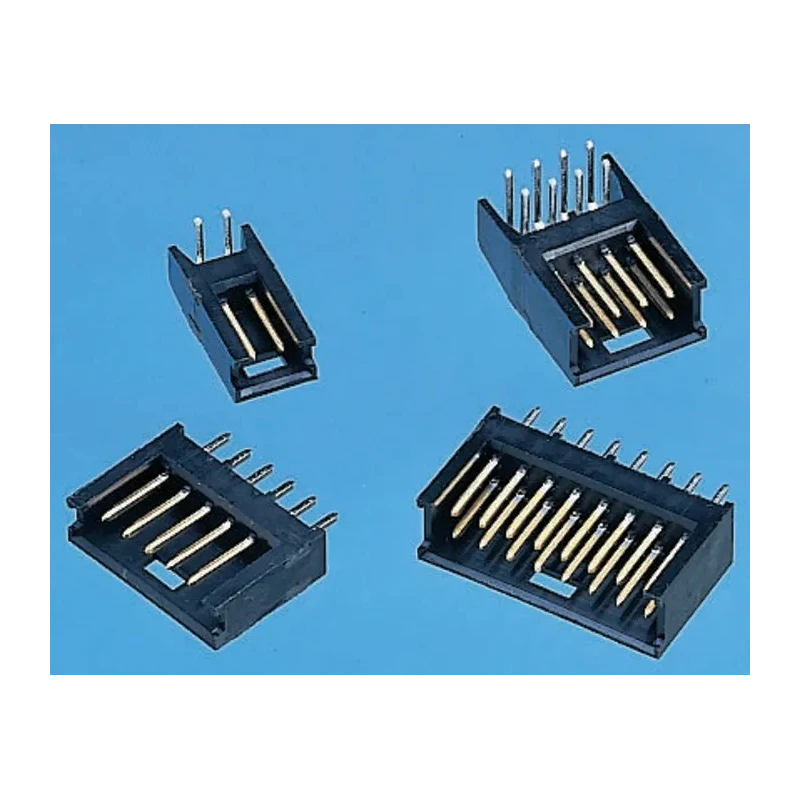

TE Connectivity AMPMODU MOD II Series Straight Through Hole PCB Header, 12 Contacts, 2.54 mm Pitch, 1 Row, Shrouded 280520-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Model | 280520-2 |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.5mm |
Key Features
- Features a shrouded housing for enhanced pin protection.
- Polarized design prevents mismating during assembly.
- Detent window in housing ensures secure positive locking connection.
- Suitable for board-to-board and wire-to-board connector systems.
- Constructed from thermoplastic housing material and brass contacts with gold plating.
- Designed for through-hole mounting with a straight orientation.
- Tail pin length of 3.5 mm for secure solder termination.
- Operates reliably within temperature range of -65°C to 105°C.
Product Description
TE Connectivity 280520-2 AMPMODU MOD II Series Straight Through Hole PCB Header features a shrouded design on 3 sides with a 2.54 mm pitch and 12 male contacts arranged in a single row.
The thermoplastic housing material provides durability and polarization to prevent mismating, while the brass contacts with gold plating ensure excellent conductivity and corrosion resistance. This connector has a tail pin length of 3.5 mm for solder termination and is designed for through-hole mounting with a straight orientation.
The header operates safely within a temperature range of -65°C to 105°C and is rated for voltages up to 750V, making it ideal for demanding industrial and automotive environments.
The design includes a detent positive locking mechanism providing secure board-to-board or wire-to-board connections. These connectors are extensively used in industrial control systems, telecommunications equipment, medical devices, computers, and storage systems.
The AMPMODU Interconnect system is recognized for its compact size, reliability, and cost-effectiveness for automation and control signal applications. This part supports a wide variety of industrial and commercial uses requiring dependable PCB interconnections.
Shrouded housing protects contacts from damage and debris. Polarized design prevents incorrect mating connections. Detent lock mechanism enhances connection security. Thermoplastic housing combined with brass, gold-plated contacts ensures durability.
Supports through-hole mounting with straight orientation. 12 contacts in a single row with 2.54 mm pitch spacing. Rated for 750V and operates from -65°C up to 105°C. Widely employed in automotive, industrial, telecommunications, medical, and computing applications.
Compact and reliable solution ideal for automation and control systems. Explore the full TE Connectivity range and related PCB Header solutions on EnvMart for industrial electronics applications.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for voltages up to 750V, making it suitable for various industrial and automotive applications.
The contacts are arranged with a pitch of 2.54 mm, which is standard for many PCB applications.
It features 12 male contacts arranged in a single row, facilitating effective connections.
This unit is designed for through-hole mounting, ensuring a secure fit on the PCB.
The housing is made from thermoplastic material, while the contacts are brass with gold plating for enhanced conductivity and corrosion resistance.
The tail pin length is 3.5 mm, which is suitable for secure solder termination.
It operates reliably within a temperature range of -65°C to 105°C, accommodating various environmental conditions.
Yes, it includes a detent positive locking mechanism that ensures a secure connection for board-to-board or wire-to-board applications.
Yes, the design is polarized, which helps prevent incorrect mating during assembly.
It is widely used in industrial control systems, telecommunications equipment, medical devices, computers, and storage systems.
The shrouded housing protects the contacts from damage and debris, enhancing the reliability of the connection.
It supports both board-to-board and wire-to-board connector systems, making it versatile for various applications.
