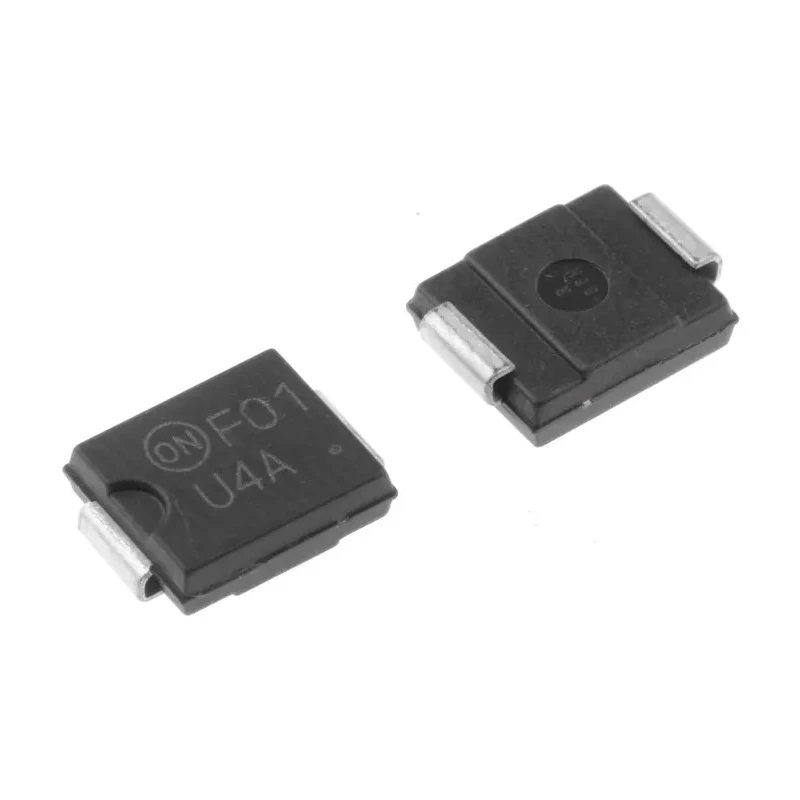

onsemi 800 V 4 A General Purpose Single Diode Surface Mount DO-214AB Package MURS480ET3G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.13mm |
| Length | 6.86mm |
| Model | MURS480ET3G |
| Width | 5.84mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-214AB (SMC) |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 4A |
| Peak Reverse Repetitive Voltage Vrrm | 800V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 25μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 70A |
| Maximum Forward Voltage Vf | 1.85V |
| Peak Reverse Recovery Time trr | 75ns |
Key Features
- This diode features a peak forward surge current of 70 A for handling transient conditions.
- Its maximum forward voltage drop is 1.85 V, ensuring efficient conduction.
- The device operates over a wide temperature range from -65°C to 175°C.
- It provides fast switching with a peak reverse recovery time of 75 ns.
- The package dimensions are compact with length 6.86 mm, width 5.84 mm, and height 2.13 mm.
- The diode has a single diode configuration with 2 pins for easy PCB mounting.
- It complies with RoHS standards and is not automotive qualified.
Product Description
onsemi MURS480ET3G is a General Purpose Rectifier Diode designed for surface mount applications, housed in a compact DO-214AB (SMC) package. Rated for 800 V peak reverse repetitive voltage and a continuous forward current of 4 A, this diode is suitable for electronic manufacturing and power supply applications where reliable rectification is required.
The diode exhibits a low forward voltage of 1.85 V, minimizing power losses and enhancing efficiency in circuits. It supports high transient surge currents up to 70 A, allowing temporary overload tolerance and robust operation in switching power supplies and rectifier circuits.
Operating in harsh industrial environments, it withstands temperatures from -65°C to 175°C, enabling use in demanding HVAC, manufacturing, and industrial controls. The fast reverse recovery time of 75 ns facilitates high-frequency switching performance, ideal for power conversion and switching regulator designs.
The small form factor with dimensions 6.86 mm length, 5.84 mm width, and 2.13 mm height allows dense PCB layouts with surface mount assembly benefits. This device features a single, 2-pin diode configuration optimized for efficient circuit integration.
This diode features a peak forward surge current of 70 A for handling transient conditions. Its maximum forward voltage drop is 1.85 V, ensuring efficient conduction. The device operates over a wide temperature range from -65°C to 175°C.
It provides fast switching with a peak reverse recovery time of 75 ns. The package dimensions are compact with length 6.86 mm, width 5.84 mm, and height 2.13 mm. The diode has a single diode configuration with 2 pins for easy PCB mounting.
It complies with RoHS standards and is not automotive qualified. This diode is widely used in industrial, electronic manufacturing, HVAC systems, power supplies, and general electronics requiring robust rectification components.
Explore more high-quality semiconductor components and electronic parts in the Semiconductors category at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse voltage rating for this diode is 800 V peak reverse repetitive voltage.
The diode is rated for a continuous forward current of 4 A.
It can handle a peak forward surge current of 70 A.
The package dimensions are 6.86 mm in length, 5.84 mm in width, and 2.13 mm in height.
The maximum forward voltage drop is 1.85 V, ensuring efficient conduction.
It operates over a wide temperature range from -65°C to 175°C.
The peak reverse recovery time is 75 ns, facilitating high-frequency switching performance.
This model supports surface mounting with a single 2-pin configuration for easy PCB integration.
Yes, it complies with RoHS standards.
It is suitable for electronic manufacturing, power supplies, HVAC systems, and general electronics requiring reliable rectification.
The peak reverse current is specified at 25 μA.
It features a single diode configuration with 2 pins.
