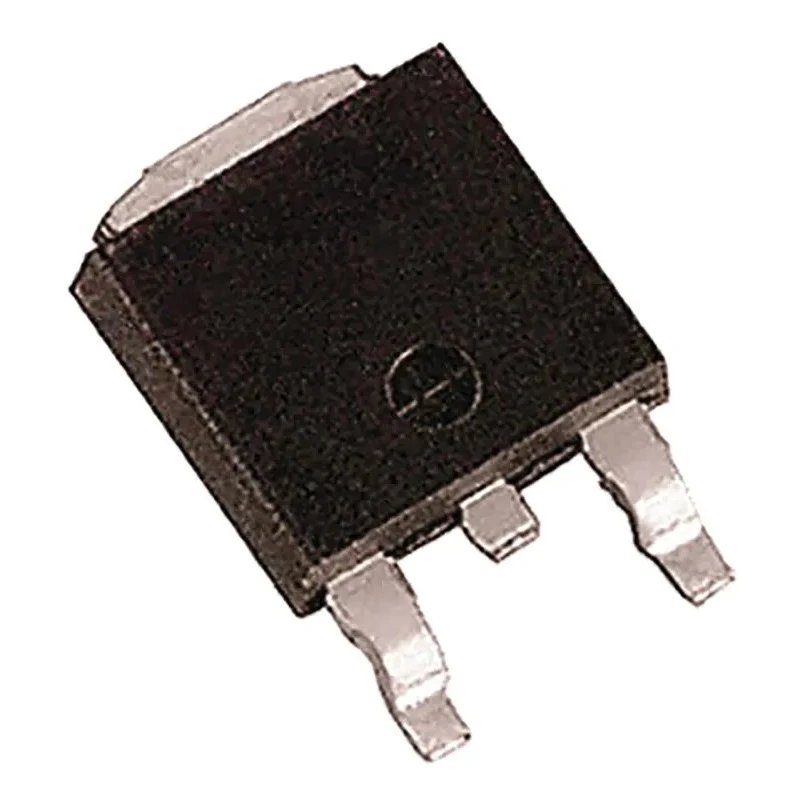

STMicroelectronics 100 V 30 A General Purpose Diode 3-Pin DPAK Surface Mount FERD30H100SB-TR
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 6.22mm |
| Brand | STMicroelectronics |
| Height | 2.4mm |
| Length | 6.73mm |
| Model | FERD30H100SB-TR |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | FERD30H100S |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-252 |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 30A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 16mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Maximum Forward Voltage Vf | 745mV |
Key Features
- The diode features a maximum continuous forward current of 30 amperes.
- Offers a peak reverse repetitive voltage of 100 volts.
- Low forward voltage drop of 745 millivolts contributes to energy efficiency.
- Maximum operating temperature is rated at 175 degrees Celsius.
- Designed as a single diode configuration in a compact TO-252 package.
- Peak non-repetitive forward surge current rating is 150 amperes.
- Equipped with three pins for surface mount installation.
- Typical applications include battery chargers, compact adapters, and switched-mode power supplies.
Product Description
The STMicroelectronics FERD30H100SB-TR is a general purpose diode designed to handle 100 volts and 30 amperes of current with a low forward voltage drop of 745 millivolts. Packaged in a 3-pin DPAK (TO-252) form factor for surface mounting, this diode provides a compact and efficient solution for power rectification in industrial and electronic applications.
This diode demonstrates excellent high frequency operation and stable leakage current over the full reverse voltage range, making it ideal for power management circuits that require energy efficiency. The maximum operating temperature rating of 175°C ensures reliable performance under demanding thermal conditions.
Its 150 ampere peak non-repetitive forward surge current capability and 16 mA peak reverse current allows for robust transient handling without performance degradation.
Typical applications include use in smartphone and tablet battery chargers, compact adapters, and switched-mode power supplies where power efficiency and component durability are critical factors.
The diode offers a maximum continuous forward current of 30 A. Peak reverse repetitive voltage rating is 100 V. Low forward voltage drop of 745 mV enhances energy efficiency. The device operates safely at temperatures up to 175°C.
Compact TO-252 package facilitates surface mounting. 3-pin configuration enables straightforward PCB integration. 150 A peak non-repetitive surge current. Suitable for industrial, commercial, and consumer electronic power supply applications.
Stable leakage current ensures consistent performance.
This diode is a reliable choice for engineers designing power supply circuits requiring robust and efficient rectification components. Explore a wide selection of semiconductor diodes and rectifiers in the Electronics & Electricals category at EnvMart for all your industrial and commercial needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 30 amperes.
The peak reverse repetitive voltage rating is 100 volts.
The forward voltage drop is 745 millivolts.
The maximum operating temperature is rated at 175 degrees Celsius.
It is packaged in a compact TO-252 (DPAK) form factor for surface mounting.
This diode has three pins for surface mount installation.
The peak non-repetitive forward surge current rating is 150 amperes.
Typical applications include battery chargers, compact adapters, and switched-mode power supplies.
The peak reverse current is rated at 16 milliamperes.
The height of the diode is 2.4 mm and the width is 6.22 mm.
The length of this diode is 6.73 mm.
This diode is classified as a general purpose rectifier.
