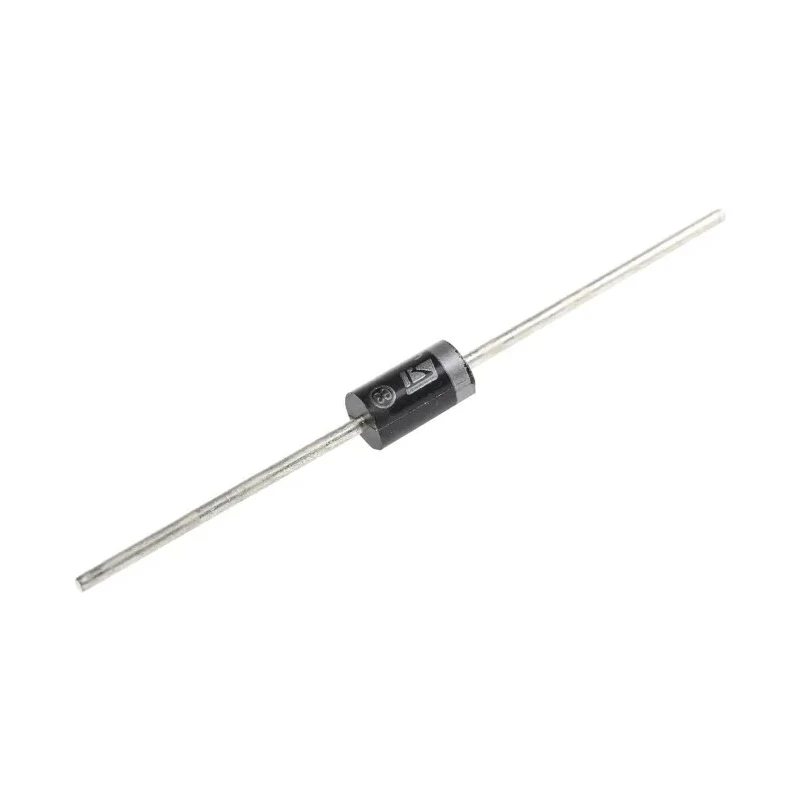

STMicroelectronics 150 V 3 A Schottky Diode 2-Pin DO-201AD STPS3150RL
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.3mm |
| Brand | STMicroelectronics |
| Height | 1.1mm |
| Length | 9.5mm |
| Model | STPS3150RL |
| Width | 2.9mm |
| Mount Type | Through Hole |
| Series | STPS3150 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-201AD |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 150V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 2mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 670mV |
Key Features
- The diode is mounted through-hole in a DO-201AD package for easy PCB integration.
- It features a maximum forward voltage of 670 mV, ensuring low conduction losses.
- Peak non-repetitive forward surge current is rated at 100 A for transient conditions.
- This diode operates reliably between -65°C to 175°C, suitable for various industrial environments.
- The device has a single diode configuration with 2 pins, ideal for rectifier applications.
- Peak reverse current is as low as 2 mA, enhancing efficiency in circuits.
- Compact physical dimensions include a length of 9.5 mm, diameter of 5.3 mm, width of 2.9 mm, and height of 1.1 mm.
Product Description
STMicroelectronics STPS3150RL is a 150 V, 3 A Schottky diode housed in a 2-pin DO-201AD through-hole package. This diode is designed for high efficiency power rectification in industrial, automotive, and electronic applications that demand low forward voltage and fast switching.
The device supports a maximum continuous forward current of 3 A and can withstand a peak surge current of 100 A, ensuring durability under transient overload conditions. With a peak reverse repetitive voltage rating of 150 V, it can protect circuits effectively from voltage spikes.
Operating temperature range from -65°C to 175°C makes it suitable for harsh environments encountered in industrial machinery, power supplies, and automotive electronics. Its 2-pin single diode configuration and DO-201AD package facilitate easy mounting and integration for through-hole printed circuit boards.
The diode offers a maximum forward voltage of 670 mV, minimizing power dissipation and improving system efficiency. Additionally, its low peak reverse current of 2 mA enhances the overall reliability and reduces leakage in sensitive circuits.
Physically compact, the diode dimensions are optimized for limited space design with a length of 9.5 mm, diameter of 5.3 mm, width of 2.9 mm, and height of 1.1 mm. The device complies with no specific automotive or other approvals but is engineered for robust industrial performance.
The diode is mounted through-hole in a DO-201AD package for easy PCB integration. It features a maximum forward voltage of 670 mV, ensuring low conduction losses. Peak non-repetitive forward surge current is rated at 100 A for transient conditions.
This diode operates reliably between -65°C to 175°C, suitable for various industrial environments. The device has a single diode configuration with 2 pins, ideal for rectifier applications. Peak reverse current is as low as 2 mA, enhancing efficiency in circuits.
Compact physical dimensions include a length of 9.5 mm, diameter of 5.3 mm, width of 2.9 mm, and height of 1.1 mm.
This diode is ideal for use in power rectification systems within industrial controls, power supplies, automotive electronics, and other demanding environments requiring efficient, durable Schottky diode solutions.
Explore the wide range of STMicroelectronics semiconductor components in the Electronics & Electricals category on EnvMart to enhance your projects with quality parts.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this diode is 3 A.
The peak reverse repetitive voltage rating for this model is 150 V.
The maximum forward voltage of this diode is 670 mV.
This diode operates reliably between -65°C and 175°C.
The peak non-repetitive forward surge current rating is 100 A.
The diode is housed in a DO-201AD package, which is a through-hole mount type.
The dimensions of this diode are 9.5 mm in length, 5.3 mm in diameter, 2.9 mm in width, and 1.1 mm in height.
The peak reverse current for this model is as low as 2 mA.
This model features a single diode configuration with 2 pins.
This diode is suitable for power rectification systems in industrial controls, power supplies, and automotive electronics.
The country of origin for this diode is India.
The rectifier type of this diode is Schottky.
