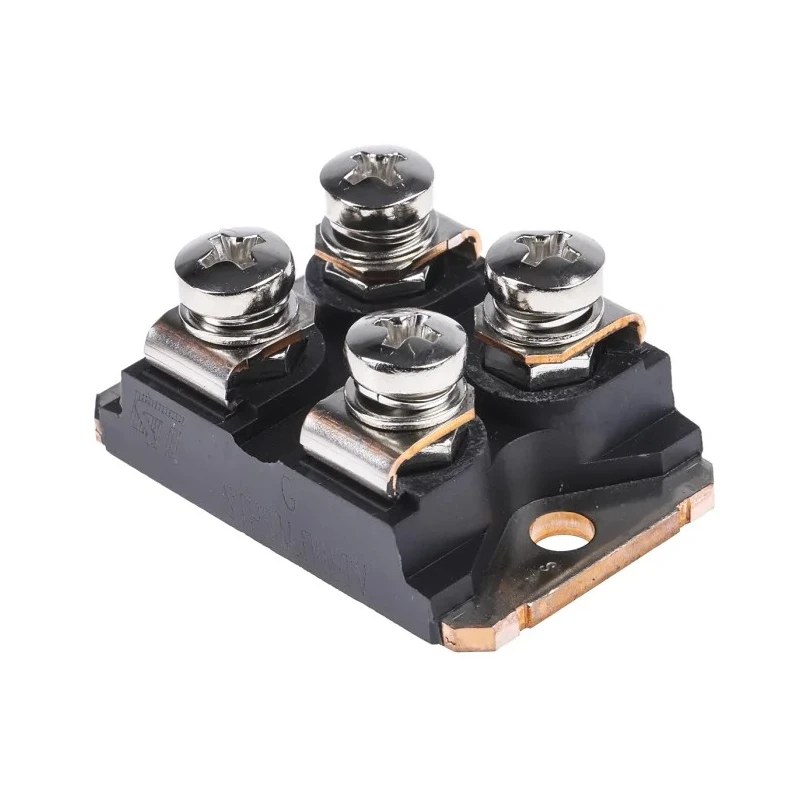

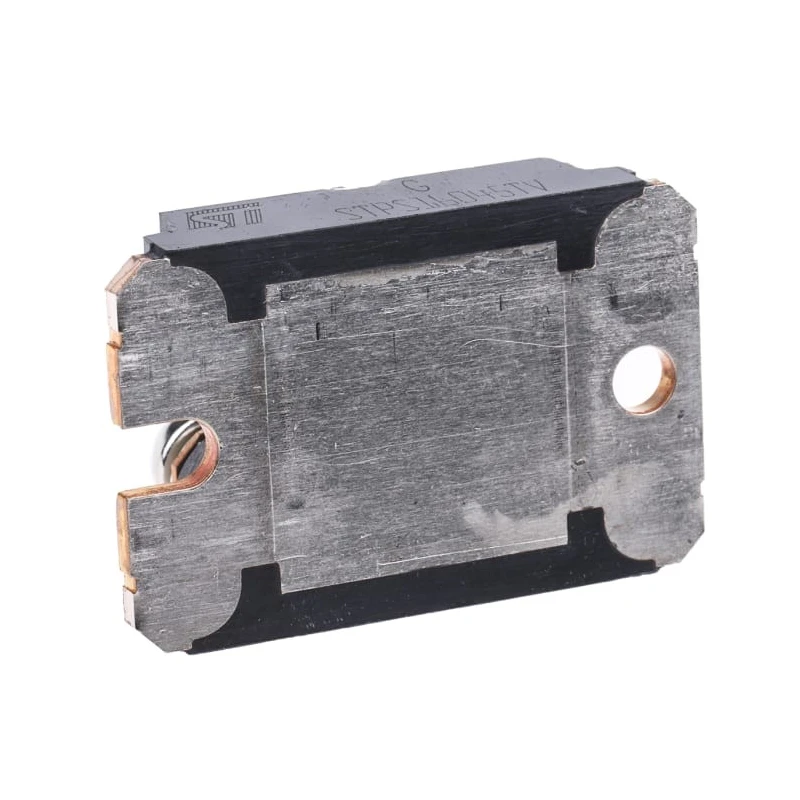

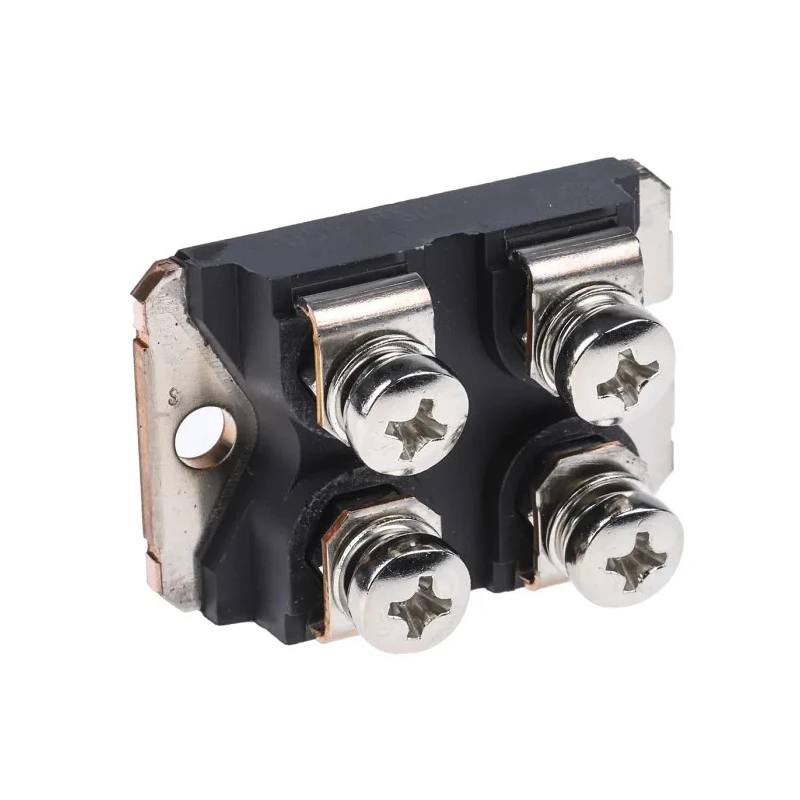

STMicroelectronics Schottky Diode 45 V 80 A 4-Pin ISOTOP Package STPS16045TV
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 9.1mm |
| Length | 38.2mm |
| Model | STPS16045TV |
| Width | 25.5mm |
| Mount Type | Panel |
| Maximum Operating Temperature | 150°C |
| Package Type | ISOTOP |
| Minimum Operating Temperature | -55°C |
| Pin Count | 4 |
| Maximum Continuous Forward Current If | 80A |
| Peak Reverse Repetitive Voltage Vrrm | 45V |
| Diode Configuration | Isolated |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 900A |
| Maximum Forward Voltage Vf | 690mV |
| - Capacitance | 45 pF |
| onsemi 45V 80A, Schottky Diode, 4-Pin ISOTOP STPS16045TVBrand | ON Semiconductor |
Key Features
- Maximum continuous forward current is 80 A for robust power handling.
- Peak reverse repetitive voltage is rated at 45 V ensuring suitable voltage withstand.
- Features 4-pin isolated diode configuration in insulated ISOTOP packaging.
- Operates efficiently with a maximum forward voltage of 690 mV.
- Capable of withstanding peak non-repetitive forward surge current of up to 900 A.
- Wide operating temperature range from -55°C to 150°C supports various industrial environments.
- Low leakage current and negligible switching losses improve efficiency.
- Insulated package has 2500 VRMS voltage isolation and 45 pF capacitance.
Product Description
STMicroelectronics STPS16045TV is a high voltage Schottky barrier diode packaged in a 4-pin ISOTOP insulated package designed for secondary rectification in high frequency switch mode power supplies. It provides a continuous forward current rating of 80 A and a peak reverse voltage of 45 V, making it suitable for demanding industrial and electronic applications.
This diode features an isolated configuration with excellent avalanche capability, minimal switching losses, and low leakage current, which contribute to improved efficiency in power electronic circuits. The insulated ISOTOP package offers 2500 VRMS insulation voltage and a low capacitance of 45 pF, ensuring reliability and stability in sensitive equipment.
The diode supports a wide temperature range from -55°C to 150°C, enabling operation in harsh industrial and commercial environments. Its dimensions are 38.2 mm length, 25.5 mm width, and 9.1 mm height, offering a compact form factor.
Applications include industrial power supplies, motor drives, battery chargers, and other high frequency rectification roles where efficiency and durability are critical. Maximum continuous forward current: 80 A. Peak reverse repetitive voltage: 45 V.
Insulated 4-pin ISOTOP package with high voltage isolation. Maximum forward voltage: 690 mV. Peak non-repetitive forward surge current: 900 A. Operating temperature range: -55°C to 150°C. Low leakage and negligible switching losses improve performance.
Package capacitance: 45 pF. Compact dimensions: 38.2 mm × 25.5 mm × 9.1 mm.
This STMicroelectronics diode represents reliable and efficient high current diode technology suitable for industrial, electronic, switching power supplies, and automotive automotive-standard applications where robust, high-frequency rectifiers are necessary.
Explore more Schottky diodes and power components from EnvMart’s semiconductor category to find the perfect match for your project requirements.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 80 A, suitable for robust power handling in various applications.
This diode has a peak reverse repetitive voltage rating of 45 V, ensuring it can withstand suitable voltage levels in operation.
The maximum forward voltage for this diode is 690 mV, contributing to its efficiency in power electronic circuits.
It can withstand a peak non-repetitive forward surge current of up to 900 A, making it capable of handling brief high-current situations.
The dimensions of this model are 38.2 mm in length, 25.5 mm in width, and 9.1 mm in height, providing a compact form factor.
This diode operates efficiently within a wide temperature range from -55°C to 150°C, suitable for harsh industrial environments.
It comes in a 4-pin ISOTOP package, which is insulated and provides high voltage isolation.
The package capacitance of this model is 45 pF, which helps in maintaining stability in sensitive electronic applications.
This diode has a low leakage current rating of 1 mA, which improves its efficiency in power applications.
It is classified as a Schottky rectifier, known for its efficiency and low switching losses in high-frequency applications.
This model is designed for panel mounting, which is common in industrial applications.
It is suitable for applications such as industrial power supplies, motor drives, and battery chargers, where high-frequency rectification is critical.
