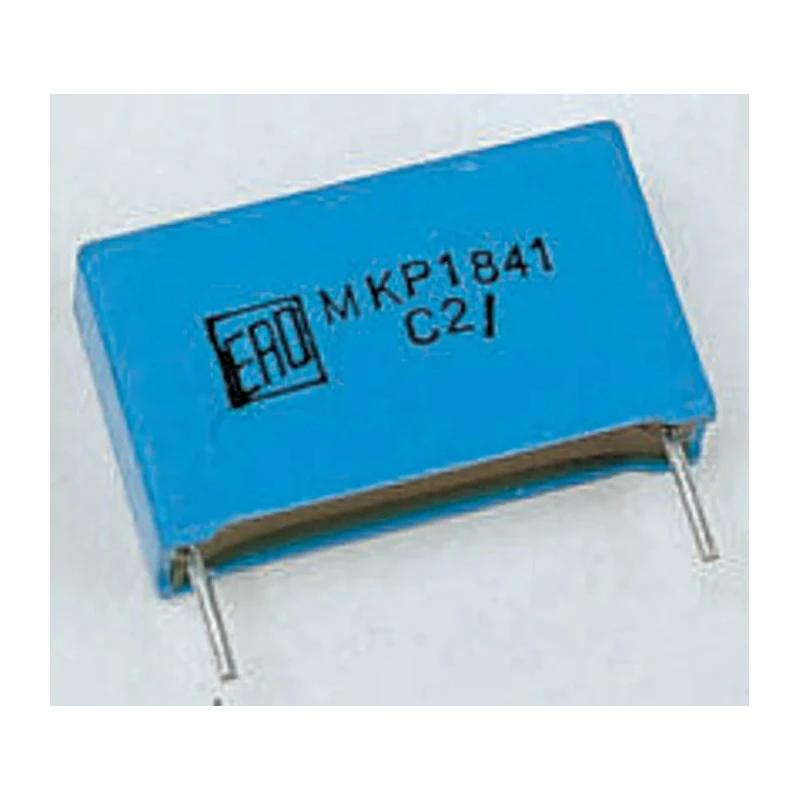

Vishay MKP1841 Film Capacitor 4.7 nF 2 kV DC 700 V AC Through Hole Mount MKP1841
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 14.5mm |
| Length | 26.5mm |
| Model | MKP1841 |
| Packaging | Bulk |
| Width | 6.5mm |
| Mount Type | Through Hole |
| Series | MKP1841 |
| Maximum Operating Temperature | 100°C |
| Tolerance | ±5 % |
| Capacitance | 4.7nF |
| Minimum Operating Temperature | -55°C |
| Terminal type | Solder |
| Lead Length | 6mm |
| Standards/Approvals | IEC 60384-16 |
| Package/Case | Plastic |
| Pin Count | 2 |
| Rated AC Voltage | 700V ac |
| Rated DC Voltage | 2kV dc |
| Lead Pitch | 22.5mm |
| Lead Diameter | 0.8mm |
| Applications include | high voltage, high current, or for applications requiring large pulses for deflection circuits (TV) etc |
Key Features
- Capacitance of 4.7 nanofarads with a tolerance of ±5 percent.
- Rated for 2000 volts direct current and 700 volts alternating current.
- Through hole mounting with a lead pitch of 22.5 mm and 6 mm lead length.
- Operates reliably between -55°C and 100°C temperature range.
- Plastic encapsulated case meeting UL 94V-0 flame retardant standards.
- Compliant with IEC 60384-16 specification for film capacitors.
- Designed for electronic ballast circuits and high current or large pulse applications.
- Offers stable performance for protection and snubber circuits and deflection circuits in TVs.
Product Description
Vishay MKP1841 Film Capacitor model MKP1841 is a through hole mount capacitor rated at 4.7 nF capacitance with a tolerance of ±5 percent. It supports a high DC voltage rating of 2 kV and an AC voltage rating of 700 V, making it ideal for high voltage, high current, and high pulse applications.
This capacitor features a plastic case encapsulated to UL 94V-0 standards with epoxy resin sealing ensuring flame retardant protection. Its dimensions are 26.5 mm length, 14.5 mm height, and 6.5 mm width with a lead pitch of 22.5 mm and lead length of 6 mm, facilitating through hole mounting on printed circuit boards.
The MKP1841 series is compliant with IEC 60384-16 standards and designed for robust electronic applications including electronic ballast circuits, high voltage protection circuits, and snubber circuits. It is particularly suitable for use in deflection circuits of television sets requiring large pulse capability.
Operating from -55°C to 100°C, this capacitor offers reliable performance across a wide temperature range with solder terminal type leads and a pin count of two, ensuring ease of installation and durability.
Capacitance 4.7 nF with ±5% tolerance. Rated DC voltage of 2 kV and AC voltage of 700 V. Through hole mounting with 22.5 mm lead pitch and 6 mm lead length. Plastic encapsulated flame retardant housing. Compliance with IEC 60384-16 standard.
Operating temperature from -55°C to 100°C. Applications for electronic ballast, high current and pulse circuits, protection and snubber circuits. Lead diameter of 0.8 mm and pin count of 2 for solder terminal type connection.
This Vishay film capacitor is widely used in industrial electronics, manufacturing equipment, HVAC systems, and other commercial electronic devices requiring high voltage and pulse handling capabilities. It is an essential component for engineers and technicians designing durable and safe electronic circuits.
Explore the full range of high-quality Film Capacitors and other electronic components on EnvMart for your circuit design and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this model is 4.7 nanofarads with a tolerance of ±5 percent.
It has a rated DC voltage of 2 kV and a rated AC voltage of 700 V.
This capacitor operates reliably within a temperature range of -55°C to 100°C.
The dimensions are 26.5 mm in length, 14.5 mm in height, and 6.5 mm in width.
It features through hole mounting with a lead pitch of 22.5 mm and a lead length of 6 mm.
The lead diameter of this capacitor is 0.8 mm.
It is compliant with the IEC 60384-16 standard for film capacitors.
It is designed for electronic ballast circuits, high current or large pulse applications, and deflection circuits in TVs.
This capacitor is packaged in bulk.
It has a pin count of 2 for solder terminal type connections.
It features a plastic encapsulated case that meets UL 94V-0 flame retardant standards.
The country of origin for this capacitor is India.
