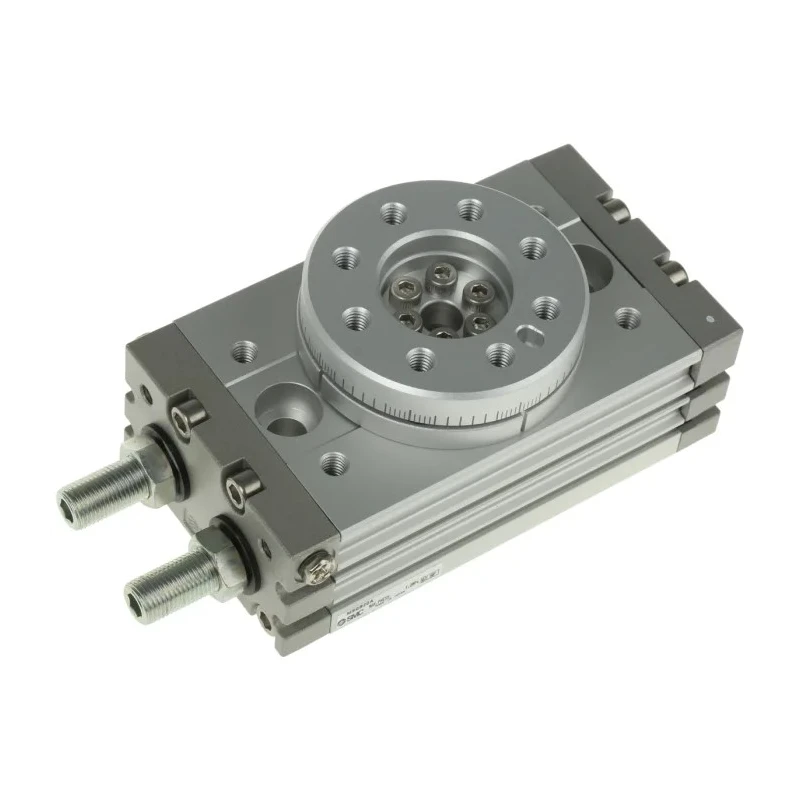

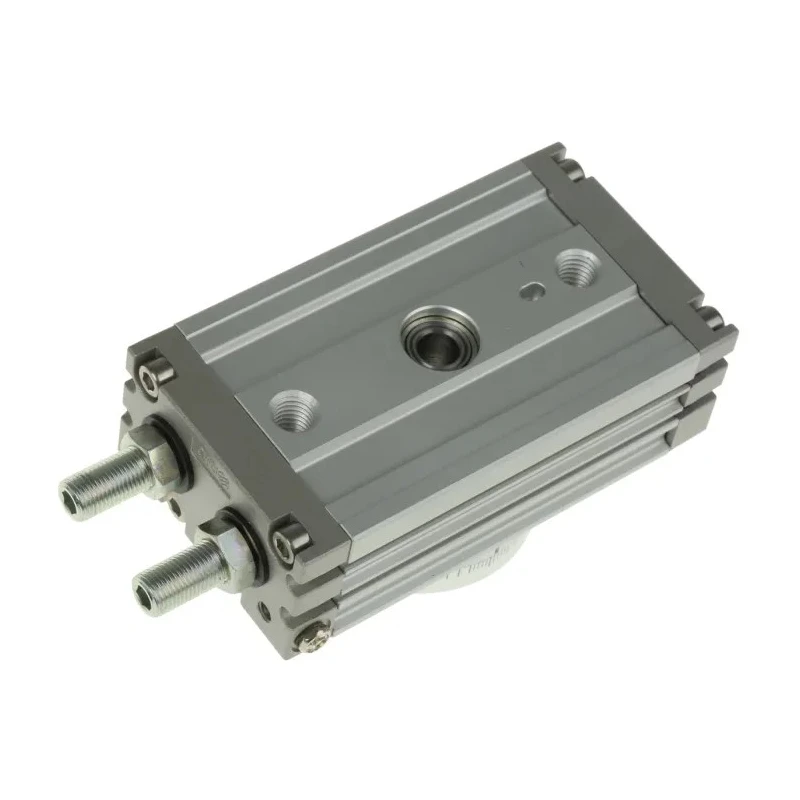

SMC Pneumatic Rotary Actuator 18mm Bore 1 Mpa Operating Pressure 190° Angle of Rotation MSQB20A
Specifications
| Country of Origin | India |
|---|---|
| Brand | SMC |
| Maximum Operating Pressure | 1 Mpa |
| Height | 54mm |
| Length | 142mm |
| Model | MSQB20A |
| Gross Weight | 990g |
| Width | 70.8mm |
| Series | MSQ |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | 0°C |
| Bore Diameter | 18mm |
| Cushioning Type | Rubber |
| Port Thread Size | M5 x 0.8 |
| Maximum Torque Rating | 3.14Nm |
| Angle of Rotation | 190° |
Key Features
- Operates up to a maximum pressure of 1 Mpa for reliable pneumatics performance.
- Maximum torque rating of 3.14 Nm enables efficient mechanical output.
- Features rubber cushioning for smooth operation and reduced wear.
- Compact dimensions with length 142mm, width 70.8mm, and height 54mm.
- Designed for industrial applications requiring precise rotary actuation up to 60°C operating temperature.
- Equipped with M5 x 0.8 port thread size for easy integration into pneumatic systems.
- Lightweight design weighing 990 grams for ease of installation and handling.
Product Description
The SMC MSQB20A Pneumatic Rotary Actuator is engineered for precise rotary motion applications in industrial pneumatic systems. Featuring an 18mm bore diameter and operating at a maximum pressure of 1 Mpa, this actuator delivers a smooth and backlash-free rotary action with a 190° angle of rotation. It is equipped with durable rubber cushioning that enhances operational longevity by absorbing impact during motion.
Constructed with double rack and single pinion mechanism, the MSQB20A actuator ensures efficient torque transmission with a maximum torque rating of 3.14 Nm, supporting applications requiring reliable power output within temperature ranges from 0°C to 60°C.

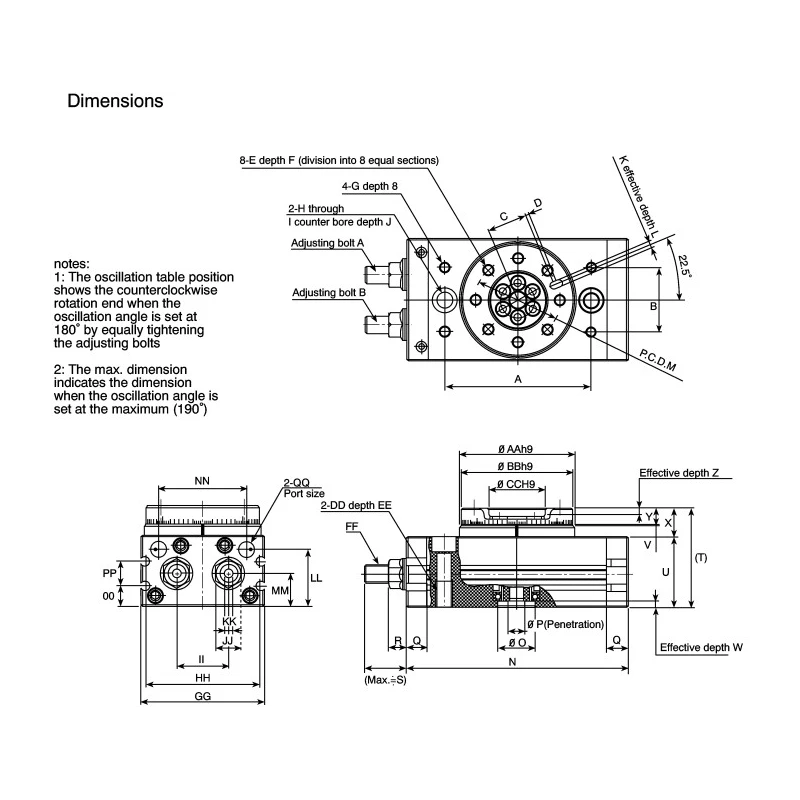

The compact mechanical design measures 142mm in length, 70.8mm in width, and 54mm in height, ensuring easy mounting and integration in pneumatic automation setups. The M5 x 0.8 port thread size facilitates seamless connection within existing pneumatic circuits. The unit weighs 990 grams, balancing robustness with portability.
This series is widely applied in material transfer, assembly automation, and manufacturing industries where controlled rotary motion and load bearing mounting faces are essential. The auto switch compatibility feature provides optional sensing capabilities, expanding usability in automated systems.
Operates at 1 Mpa maximum pressure ensuring stable pneumatic control. 18mm bore piston for effective actuation force delivery. Rubber cushioning smooths motion and extends actuator life. Compact dimensions fit diverse industrial pneumatic assemblies.
Maximum torque of 3.14 Nm suits a range of mechanical load requirements. Port thread size M5 x 0.8 compatible with standard pneumatic fittings. 190° adjustable rotation angle for versatile rotational positioning. Supports operating temperatures from 0°C to 60°C for varied environments.
Lightweight 990g design improves ease of installation and handling. Suitable for industrial, manufacturing, and laboratory automation applications requiring precise rotary control. Explore the extensive pneumatic actuator selection at EnvMart for advanced pneumatic solutions tailored to your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this actuator is 1 Mpa.
This model has an angle of rotation of 190°.
The bore diameter of this actuator is 18mm.
It has a maximum torque rating of 3.14 Nm.
The actuator measures 142mm in length, 70.8mm in width, and 54mm in height.
This unit weighs 990 grams.
It operates within a temperature range of 0°C to 60°C.
It features rubber cushioning for smooth operation and reduced wear.
The port thread size is M5 x 0.8, allowing for easy integration into pneumatic systems.
This actuator is commonly used in material transfer, assembly automation, and manufacturing industries.
It uses a double rack and single pinion mechanism for efficient torque transmission.
This actuator belongs to the MSQ series.
