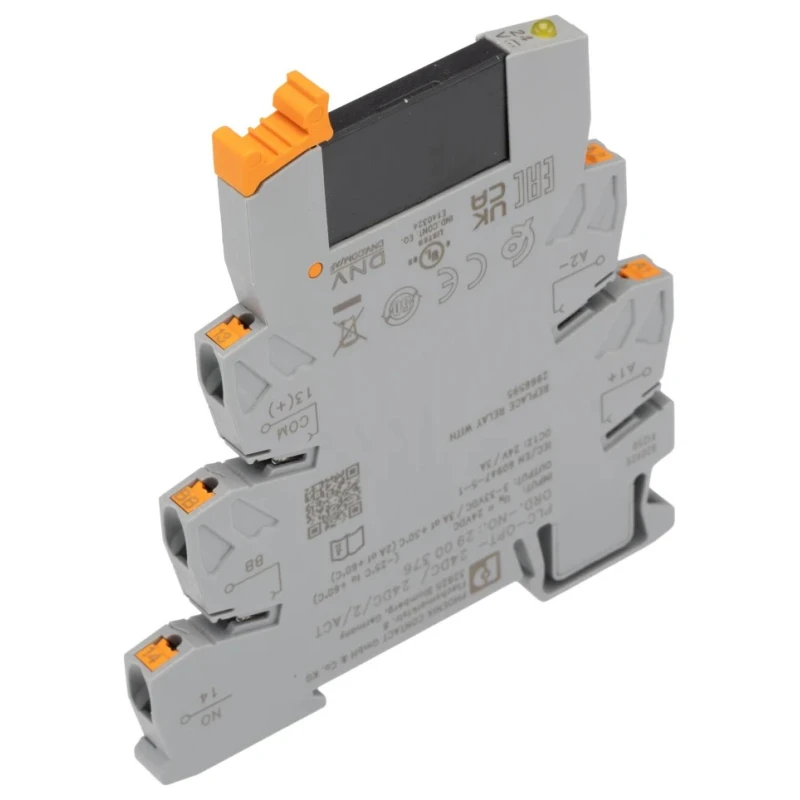

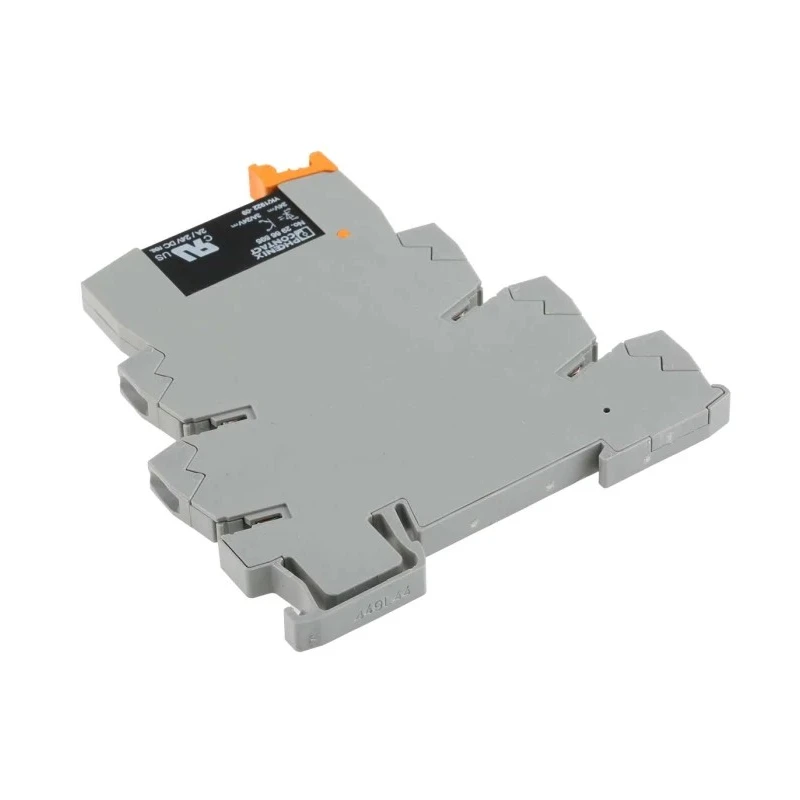

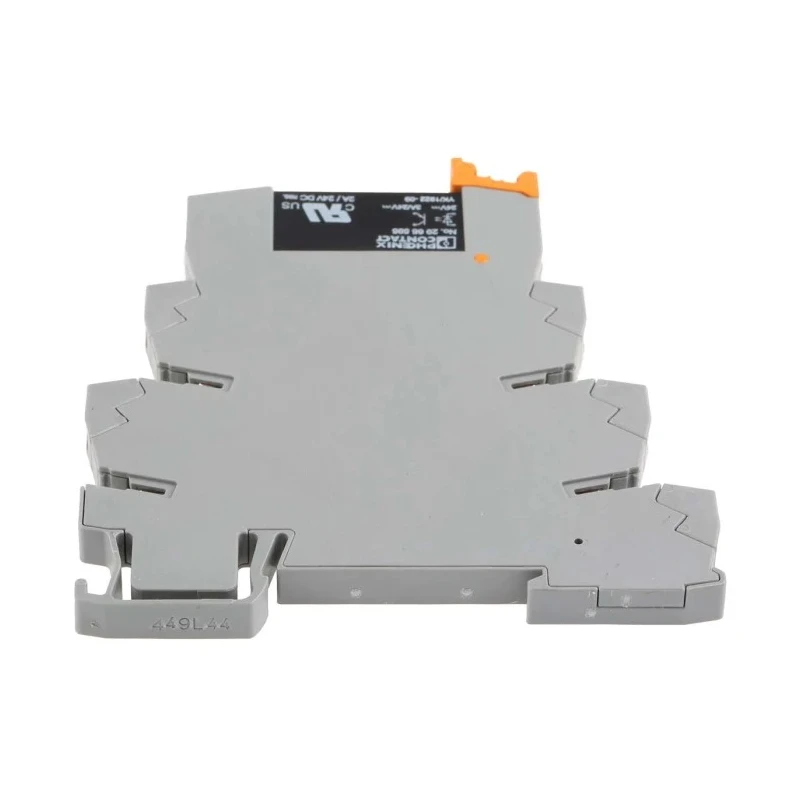

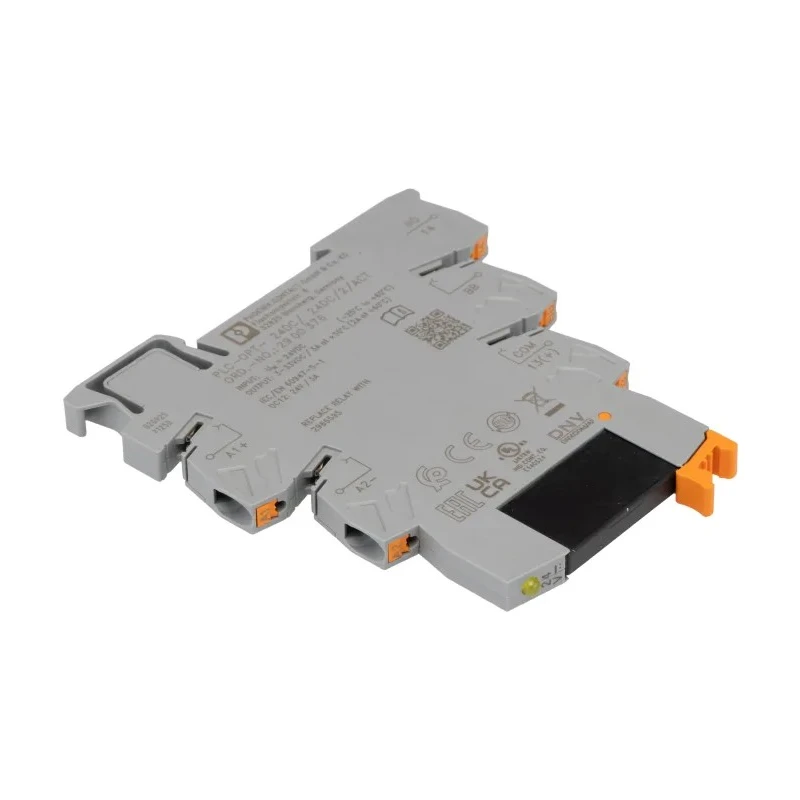

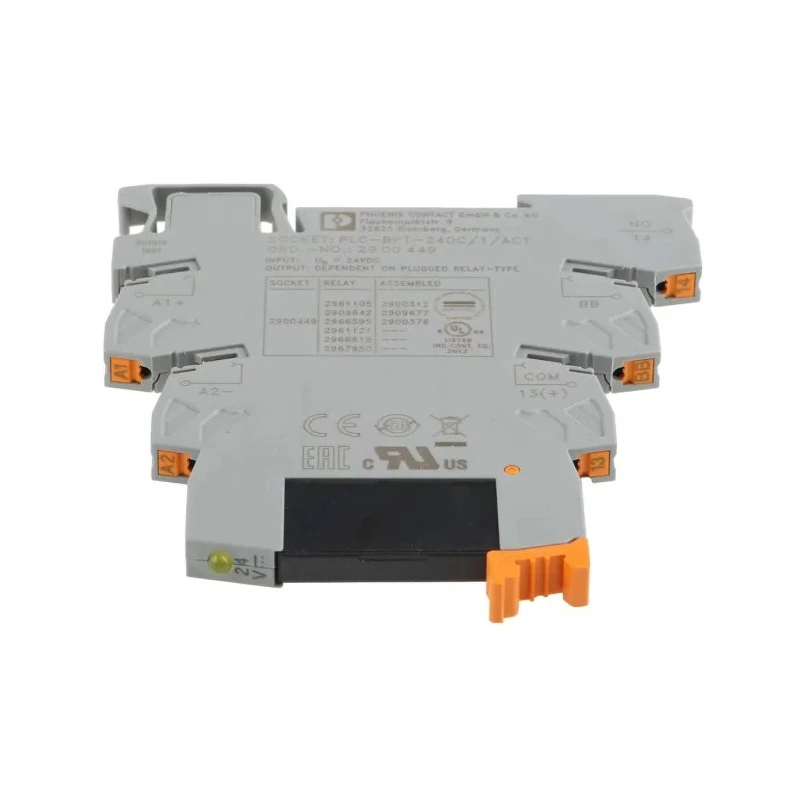

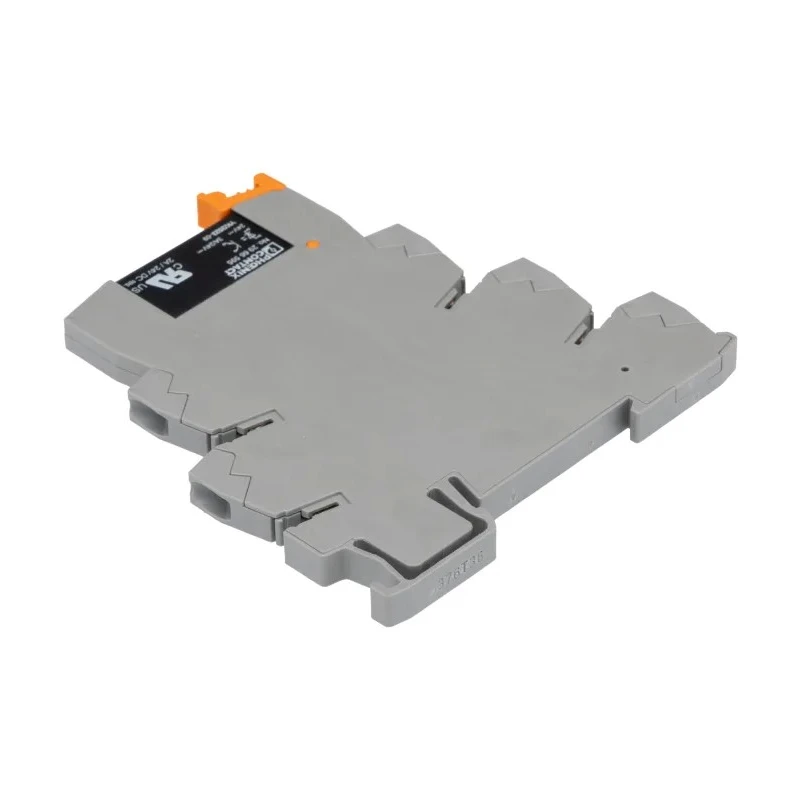

Phoenix Contact Solid State Interface Relay DIN Rail Push-in, SPST Contact, 8.5mA Input Current, Dimensions 94 x 6.2 2900376
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Phoenix Contact |
| Dimensions | 94 x 6.2 x 80mm |
| Height | 80mm |
| Operating Temperature Range | -25 → +60°C |
| Length | 94mm |
| Model | 2900376 |
| Depth | 94mm |
| Mounting Type | DIN Rail |
| Width | 6.2mm |
| Series | PLC-OPT- 24DC/ 24DC/2/ACT |
| Maximum Operating Temperature | +60°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Input current | 8.5mA |
| Terminal type | Push In |
| Number of Poles | 1 |
Key Features
- Mounts securely on DIN rail with compact dimensions of 94 x 6.2 x 80mm.
- SPST single-pole, single-throw contact type for reliable switching.
- Push-in terminal type simplifies wiring and installation.
- Operates efficiently at an input current of 8.5mA, reducing energy consumption.
- Wide ambient temperature range from -25°C to +60°C ensures durability in harsh environments.
- Safe isolation complying with DIN EN 50178 enhances operational safety.
- Rapid response time of approximately 20 microseconds for fast switching.
- Compact form factor saves installation space by up to 80%.
Product Description
The Phoenix Contact 2900376 Solid State Interface Relay is a DIN rail-mounted electronic relay designed for efficient and reliable output control in automation systems. This compact relay features a single-pole single-throw (SPST) contact configuration and utilizes a low 8.5mA input current, making it energy-efficient and ideal for various industrial settings.
Its push-in terminal design simplifies wiring and reduces installation complexity, eliminating the need for additional terminal blocks. The relay offers safe isolation between coil and contact in accordance with DIN EN 50178 standards, which ensures high operational safety and includes reverse polarity protection along with a built-in freewheeling diode.
With dimensions of 94 mm depth, 6.2 mm width, and 80 mm height, the relay’s compact size saves up to 80% of installation space compared to traditional devices. It is engineered to operate across a wide ambient temperature range from -25°C to +60°C, making it suitable for demanding industrial environments with varying conditions.
Typical response time is only about 20 microseconds at nominal voltage, enabling rapid switching to accommodate high-speed automation requirements. This relay is widely used in automation applications requiring space efficiency and reliable output control.
Mounting on DIN rail for convenient integration. SPST contact configuration for clear switching action. Push-in connection technology for quick and secure wiring. Low input current minimizes power consumption. Wide operating temperature adapts to harsh conditions.
Safe isolation complies with relevant standards. Compact design reduces required panel space. Fast response time supports precise control.
This product is made in Germany and backed by Phoenix Contact's reputation for quality and reliability. It is applicable in industrial automation, manufacturing systems, and other environments demanding efficient signal conditioning and interface relays. Discover more high-quality relays and interface solutions in the Relays & Contactors category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input current of this relay is 8.5mA, which contributes to its energy-efficient operation.
This model has dimensions of 94 mm in length, 6.2 mm in width, and 80 mm in height.
The relay features a single-pole single-throw (SPST) contact configuration for reliable switching.
It operates efficiently within a wide temperature range from -25°C to +60°C, making it suitable for harsh environments.
The push-in terminal design simplifies wiring and reduces installation complexity, eliminating the need for additional terminal blocks.
The typical response time is approximately 20 microseconds, enabling rapid switching for high-speed automation applications.
This relay is designed for mounting on DIN rail, allowing for convenient integration into automation systems.
It complies with DIN EN 50178 standards, ensuring safe isolation between coil and contact for operational safety.
It is widely used in industrial automation and manufacturing systems that require efficient signal conditioning and output control.
This solid state interface relay is made in Germany.
Its compact form factor saves up to 80% of installation space compared to traditional devices, allowing for more efficient use of panel space.
