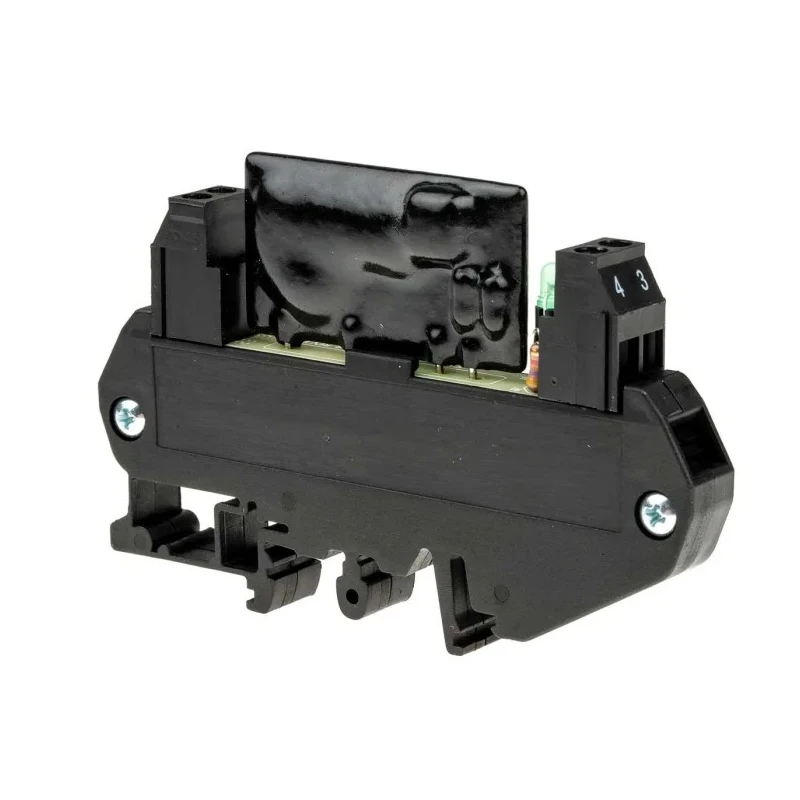

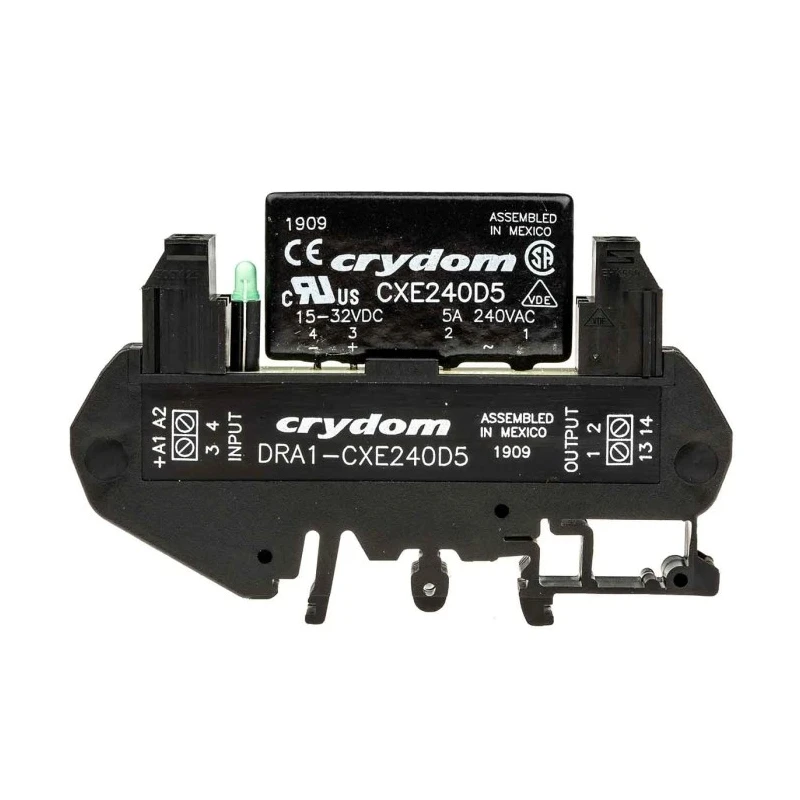

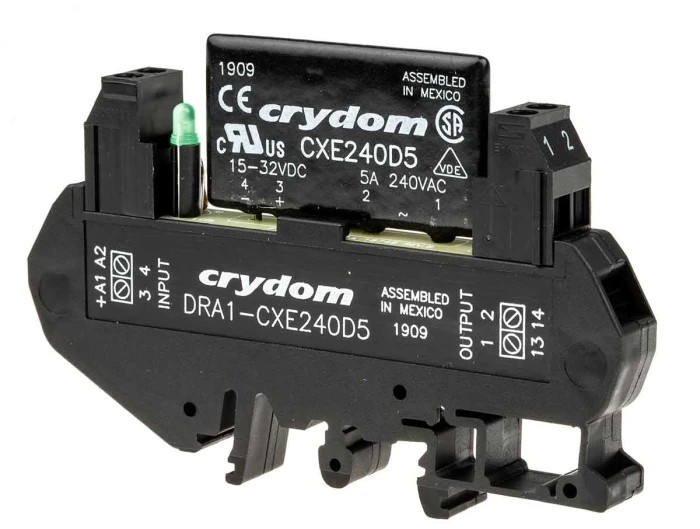

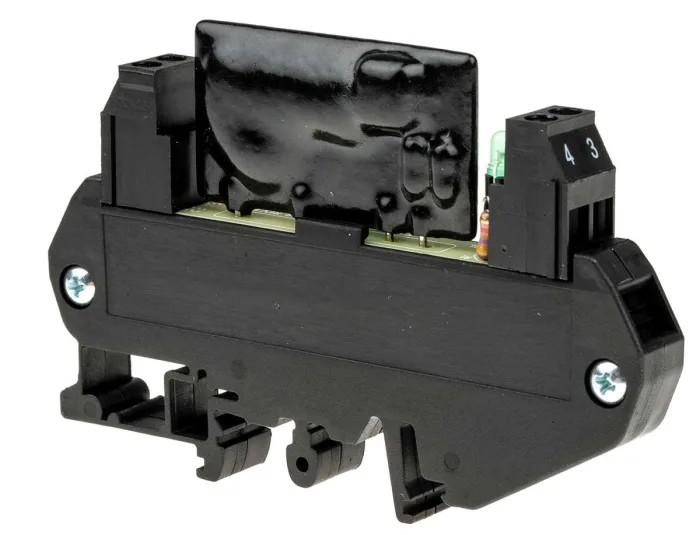

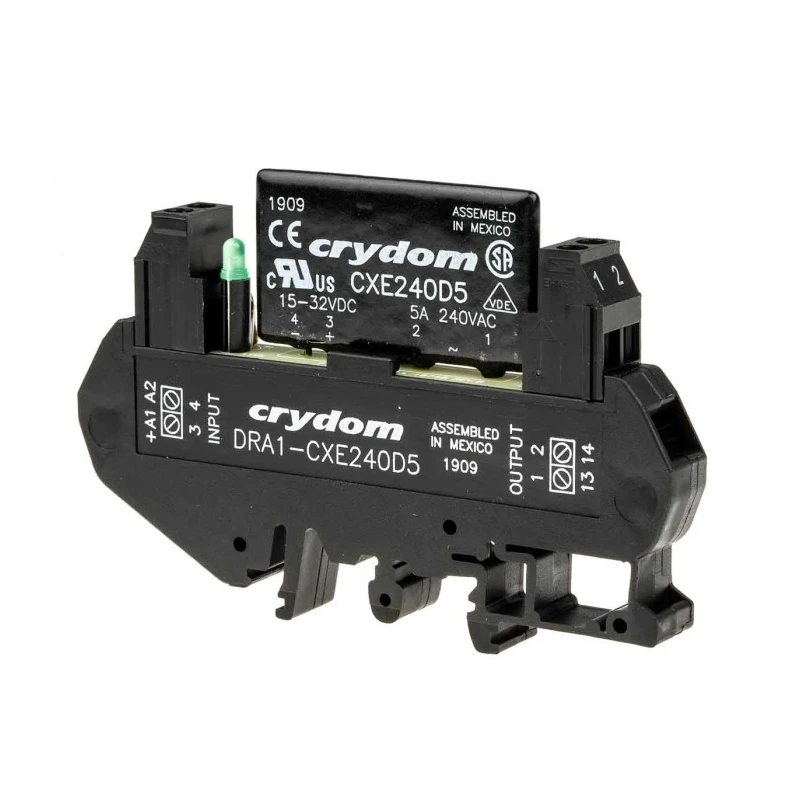

Sensata / Crydom Solid State Interface Relay 12-280V AC Zero Cross DIN Rail Mount 32V DC Control Voltage DRA1-CX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Sensata / Crydom |
| Model | DRA1-CX |
| Maximum Control Voltage | 32V dc |
| Sensata / Crydom DRA1-CX Solid State Interface Relay, Control | 32V dc DIN Rail Screw |
| Zero cross DIN rail SSR,5A 12-280VacBrand | Crydom |
| Sensata / Crydom DRA1-MCX Solid State Interface Relay, Control | 32V dc DIN Rail ScrewBrand: Crydom |
Key Features
- Compact dimensions measuring 89.6 mm (L) x 10 mm (W) x 61 mm (H) for space-saving installation.
- Operates over broad AC voltage range of 12 to 280 V AC suitable for low power loads.
- Features zero-cross switching technology to minimize electrical noise during switching.
- Dielectric strength rating of 4000 V provides superior insulation and personnel protection.
- Cage-style screw terminals enable easy and secure wiring connections.
- LED indicator facilitates simple monitoring of relay status.
- Wide operating temperature range from -30°C to +80°C supports harsh environmental conditions.
- Lightweight design at only 28.6 grams reduces mechanical strain on mounting equipment.
Product Description
Sensata / Crydom DRA1-CX Solid State Interface Relay is engineered for industrial, electrical, and automation applications requiring reliable electrical load switching. It accepts a control voltage of 32V DC and operates across a wide AC current range from 12 to 280V AC, making it suitable for low power lighting, heating, and signal conditioning systems.
The relay features a compact form factor with dimensions of 89.6 mm (length), 10 mm (width), and 61 mm (height), designed to fit within space-limited DIN rail assemblies. Its zero-cross switching technology reduces electrical noise and transient generation during load switching cycles, enhancing system stability.
With a dielectric strength of 4000 V, this component offers excellent insulation protection, safeguarding personnel from electrical shocks. The cage-style screw terminals simplify wiring tasks while the integrated LED indicator provides clear operational status feedback for easier maintenance and troubleshooting.
The device is rated for operation in harsh environments, sustaining temperatures from -30°C to +80°C, and weighs only 28.6 grams to minimize the load on supporting structures. The housing material is crafted from thermally conductive epoxy that effectively dissipates heat and maintains high insulation integrity.
Its DIN rail compatible mounting facilitates rapid and secure installation in electrical control panels, industrial machinery, or process control systems. This solid-state relay is suitable for use in industrial automation, laboratory equipment, HVAC controls, and manufacturing plants.
Compact size for tight space environments. Wide AC operating voltage range. Zero cross switching for noise reduction. High dielectric strength for safety. Easy cage-style screw wiring terminals. LED indicator for status monitoring.
Wide temperature operating range. Lightweight construction. Thermally conductive, heat resistant housing. Designed for DIN rail mounting ease. Explore the Electronics & Electricals category on EnvMart to discover more reliable relays and interface components from top brands like Sensata / Crydom.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates across a wide AC voltage range from 12 to 280V AC, making it suitable for various low power applications.
The DRA1-CX model accepts a control voltage of 32V DC.
Zero-cross switching technology minimizes electrical noise during switching, enhancing system stability and reducing transients.
This relay has compact dimensions of 89.6 mm (L) x 10 mm (W) x 61 mm (H), designed for space-saving installation.
It weighs only 28.6 grams, which helps reduce mechanical strain on mounting equipment.
The relay has a dielectric strength rating of 4000 V, providing excellent insulation and personnel protection.
It features cage-style screw terminals that allow for easy and secure wiring connections.
The DRA1-CX operates effectively within a wide temperature range from -30°C to +80°C, suitable for harsh environments.
It is suitable for industrial automation, laboratory equipment, HVAC controls, and manufacturing plants.
This solid state relay is designed for DIN rail mounting, facilitating rapid and secure installation in various control panels.
The housing is crafted from thermally conductive epoxy, which helps dissipate heat and maintain high insulation integrity.
An integrated LED indicator provides clear operational status feedback, making maintenance and troubleshooting easier.
