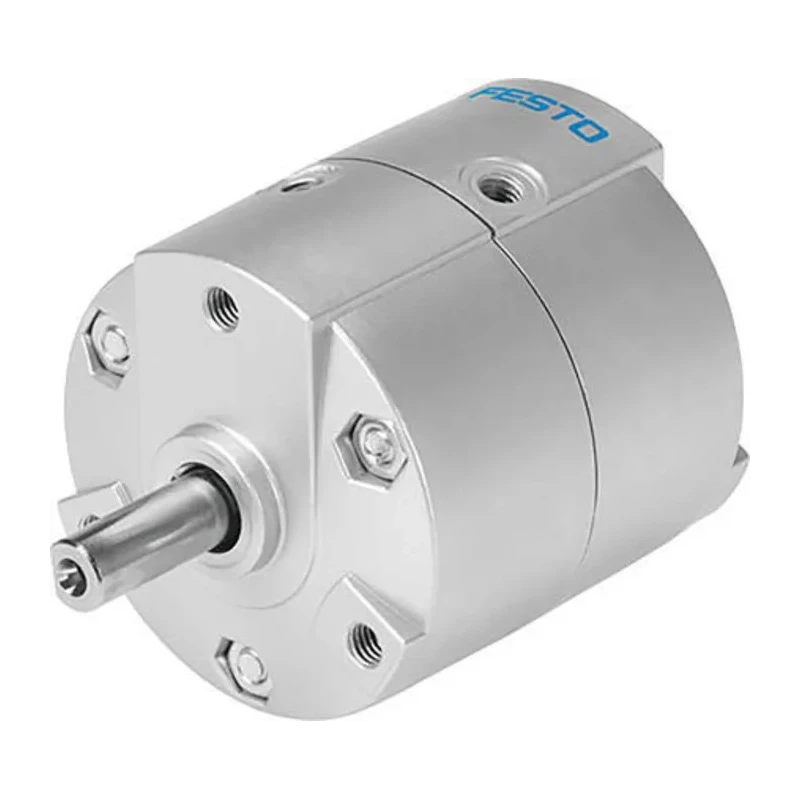

Festo Pneumatic Rotary Actuator Single Acting 8 bar 16mm Bore DRVS-16-90-P
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Maximum Operating Pressure | 8 bar |
| Model | DRVS-16-90-P |
| Gross Weight | 272g |
| Series | DRVS |
| Maximum Operating Temperature | 60°C |
| Sub Type | Rotary Vane |
| Minimum Operating Temperature | 0°C |
| Bore Diameter | 16mm |
| Action Type | Single Acting |
| Standards/Approvals | RoHS |
| Better World Claim | Repairable by the End User |
| Cushioning Type | Elastic |
| Port Thread Size | M5 |
| Maximum Radial Force | 30N |
| Maximum Torque Rating | 2Nm |
| Cushioning Angle | 0.5 ° |
| Lubricated Operation | Possible |
Key Features
- Single acting pneumatic rotary actuator delivers reliable 90° rotation.
- 16 mm bore diameter suitable for compact and precise installations.
- Maximum operating pressure of 8 bar supports robust industrial use.
- Elastic cushioning ensures smooth deceleration and reduces backpressure.
- Nickel-plated steel shaft enhances durability and corrosion resistance.
- Internal M5 thread provides easy mounting and pneumatic connection.
- Wide operating temperature range from 0°C to 60°C.
- Lightweight design at 272 g facilitates flexible integration.
Product Description
Festo DRVS-16-90-P is a single acting pneumatic rotary actuator engineered for precision rotational movement in industrial automation. Designed with a 16 mm bore, this actuator accommodates demanding tasks where compactness and reliability are essential. The actuator is capable of handling maximum operating pressure up to 8 bar, making it suitable for applications requiring robust and consistent performance.
Featuring elastic cushioning ring plates, the DRVS-16-90-P ensures quick deceleration, effective reduction of backpressure, and smooth motion transitions. Its internal pneumatic connection uses an M5 thread, supporting easy and secure integration into various automation setups. The drive shaft is constructed from nickel-plated steel, delivering high corrosion resistance and extended service life, ideal for exposure to harsh industrial environments.
Operational parameters include a temperature range from 0°C to 60°C, maximum torque rating of 2 Nm, and a maximum radial force of 30 N. The actuator supports a swivel angle between 0° and 90°, with a frequency up to 3 Hz at 6 bar. It weighs only 272 g, facilitating lightweight and flexible installation.
Its single-acting operation enables semi-rotary motion with rapid response, reducing cycle times in automated systems. The actuator’s design is repairable by the end user and meets RoHS compliance. Lubricated operation is possible and the actuator is protected against dust and water ingress due to robust construction.
Typical applications include the automation of valves, gates, assembly machines, packaging systems, and other industrial equipment requiring controlled rotation. Common sectors using the DRVS-16-90-P include manufacturing, process automation, material handling, and laboratory machinery.
This actuator offers flexible integration with compact footprints, high performance, and reliability for a wide variety of pneumatic automation tasks. Explore Pneumatic Rotary Actuators by Festo and related products in Hydraulic & Pneumatic Tools on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this actuator is 8 bar, making it suitable for robust industrial applications.
This model features a bore diameter of 16 mm, allowing for compact and precise installations.
The actuator weighs 272 grams, facilitating lightweight and flexible integration into various setups.
It operates within a temperature range of 0°C to 60°C, accommodating various environmental conditions.
The actuator features elastic cushioning, which ensures smooth deceleration and reduces backpressure during operation.
The maximum torque rating for this actuator is 2 Nm, providing effective rotational force for applications.
It has an internal M5 thread, which supports easy mounting and pneumatic connection.
Typical applications include automation of valves, gates, assembly machines, and packaging systems in industrial settings.
The actuator can handle a maximum radial force of 30 N, suitable for various operational demands.
Yes, lubricated operation is possible with this pneumatic rotary actuator, enhancing its performance.
This actuator meets RoHS compliance, ensuring it adheres to environmental safety standards.
Yes, the design allows for repair by the end user, contributing to its sustainability and longevity.
