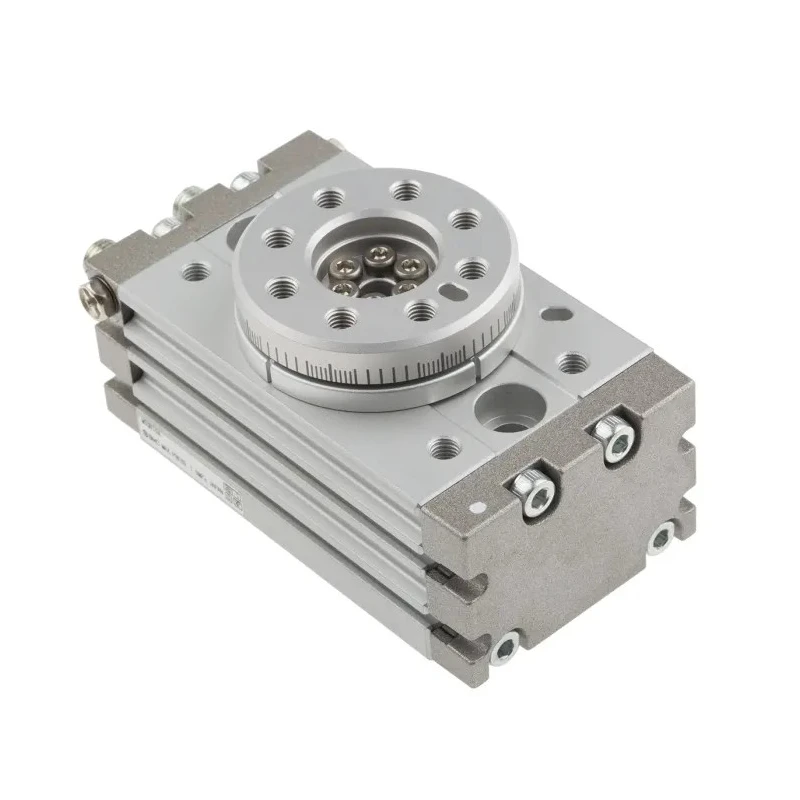

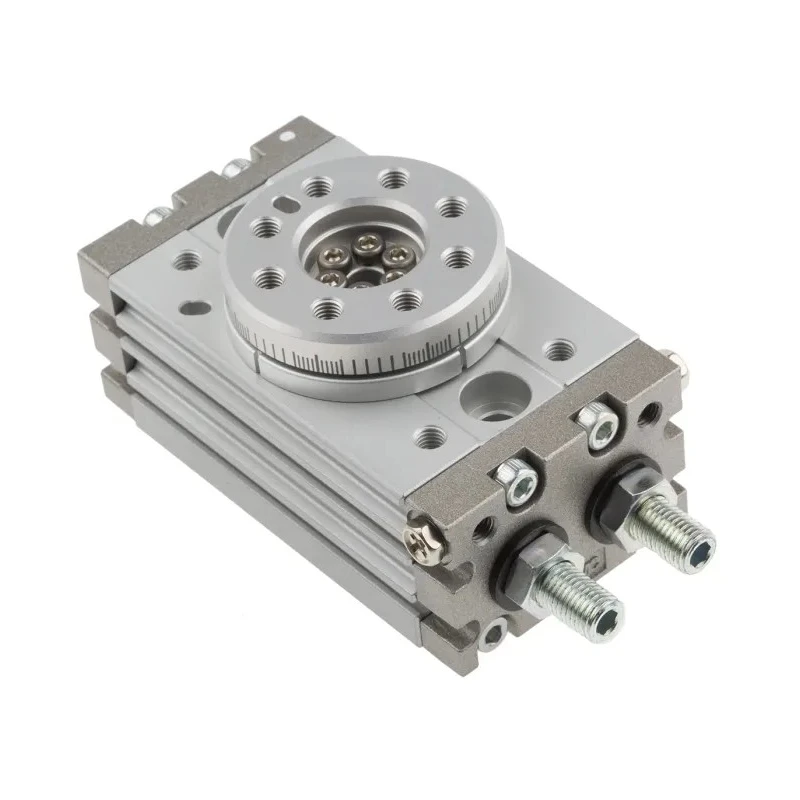

SMC Pneumatic Rotary Actuator 15mm Bore, 190° Rotation, Hollow Axis, 1.67Nm Torque, 1 Mpa Pressure, MSQB10A
Specifications
| Country of Origin | France |
|---|---|
| Brand | SMC |
| Maximum Operating Pressure | 1 Mpa |
| Height | 47mm |
| Length | 109.7mm |
| Model | MSQB10A |
| Gross Weight | 530g |
| Width | 55.4mm |
| Series | MSQ |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | 0°C |
| Bore Diameter | 15mm |
| Shaft Type | Hollow Axis |
| Standards/Approvals | REACH |
| Cushioning Type | Rubber |
| Port Thread Size | M5 x 0.8 |
| Maximum Torque Rating | 1.67Nm |
| Angle of Rotation | 190° |
Key Features
- Operates efficiently within 0 to 60°C temperature range.
- Rubber cushioning ensures shock absorption for quieter and smoother operation.
- Compact design with a length of 109.7mm and width of 55.4mm for easy integration.
- Hollow axis shaft type supports versatile mounting options and mechanical connection.
- Maximum torque rating of 1.67Nm for robust rotary performance.
- Port thread size M5 x 0.8 enables flexible system integration.
- Lightweight actuator weighing 530 grams supports handling and installation.
- Compliant with REACH standards for safety and environmental conformity.
Product Description
SMC MSQB10A Pneumatic Rotary Actuator is designed for industrial automation requiring precise rotary motion. The actuator features a 15mm bore and provides an extensive rotation angle of 190°, enabling controlled and efficient operation within pneumatic systems. It is engineered to operate smoothly under a maximum operating pressure of 1 Mpa (7 bar) and within a temperature range from 0°C to 60°C, suitable for diverse industrial environments.
The actuator utilizes a hollow axis shaft type, facilitating flexible integration into existing mechanical assemblies. Rubber cushioning technology absorbs shocks and vibrations, extending the product's lifespan and improving operational noise levels. The compact dimensions - length 109.7mm, width 55.4mm, height 47mm - and lightweight design at 530 grams ensure easy installation and minimal space usage.
Its maximum torque rating of 1.67Nm supports reliable operation in applications demanding precise positioning and robust force. The port connection size M5 x 0.8 allows seamless interfacing with pneumatic lines. Manufactured in France and compliant with REACH standards, this actuator meets global quality and environmental guidelines.
Widely used across industrial sectors, this pneumatic rotary actuator is suitable for automated assembly lines, robotics positioning, conveyor system integration, packaging machinery, and test equipment requiring accurate rotary motions. Its operational reliability and versatile mounting options make it a valuable component in fluid power automation.
Operates with a maximum pressure of 1 Mpa and rotation angle of 190° for effective automation. Rubber cushioning reduces wear and noise during high-load operations. Compact and lightweight design ensures easy installation and handling.
Hollow axis shaft facilitates versatile mounting and mounting orientations. Compliance with REACH standards enhances safety and environmental assurance. Robust torque rating of 1.67Nm for demanding industrial applications.
Port thread size M5 x 0.8 enables flexible pneumatic connections. Explore SMC Pneumatic Rotary Actuators and related automation solutions in the Industrial Tools & Equipment category at EnvMart for comprehensive fluid power systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this pneumatic rotary actuator is 1 Mpa (7 bar).
This model provides a rotation angle of 190°, allowing for extensive controlled movement.
The bore diameter of this actuator is 15mm, which is suitable for various pneumatic applications.

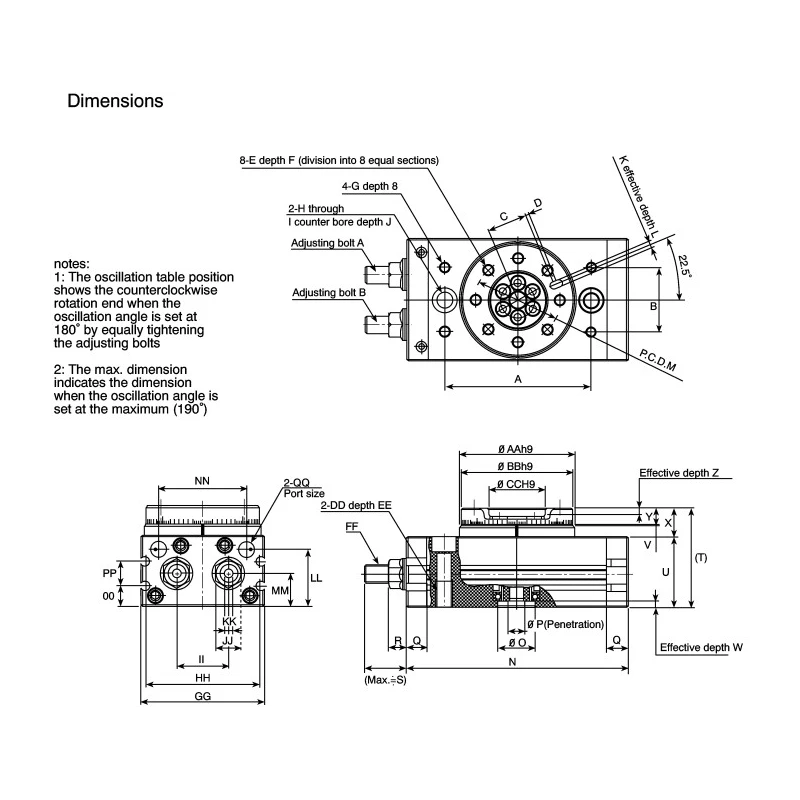

The actuator has compact dimensions: length 109.7mm, width 55.4mm, and height 47mm.
It features a hollow axis shaft type, which facilitates versatile mounting options.
The maximum torque rating of this actuator is 1.67Nm, providing reliable performance in demanding applications.
This unit weighs 530 grams, making it lightweight for easier handling and installation.
It operates efficiently within a temperature range of 0°C to 60°C, suitable for various industrial environments.
The actuator utilizes rubber cushioning to absorb shocks and vibrations, enhancing operational smoothness.
The port thread size is M5 x 0.8, allowing for flexible integration with pneumatic systems.
Yes, it is compliant with REACH standards, ensuring safety and environmental conformity.
It is widely used in automated assembly lines, robotics positioning, conveyor systems, and packaging machinery requiring precise rotary motion.
