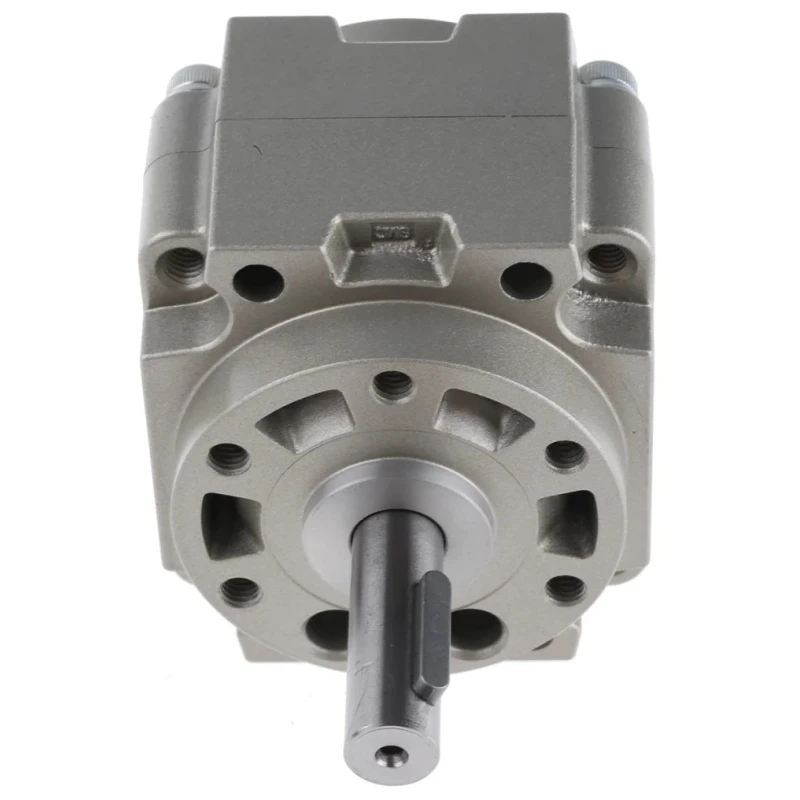

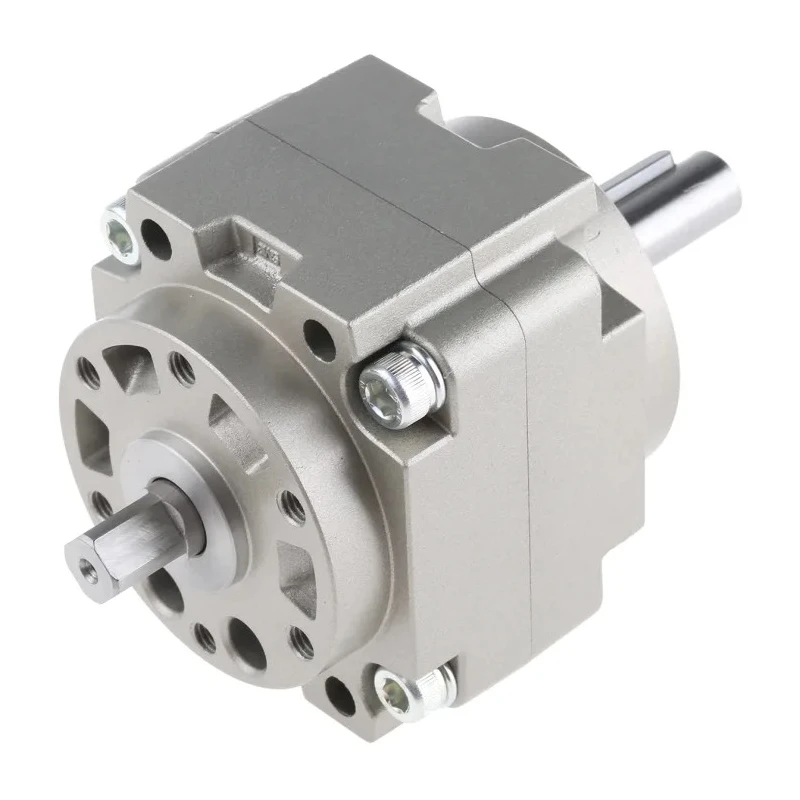

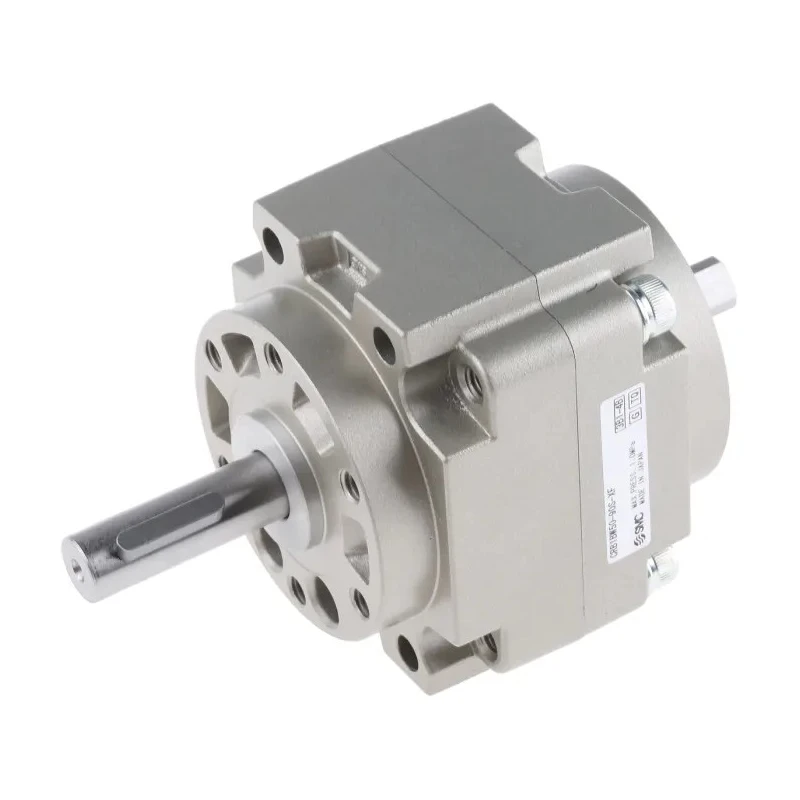

SMC Pneumatic Rotary Actuator 50mm Bore Double Shaft 1 Mpa Maximum Pressure CRB1

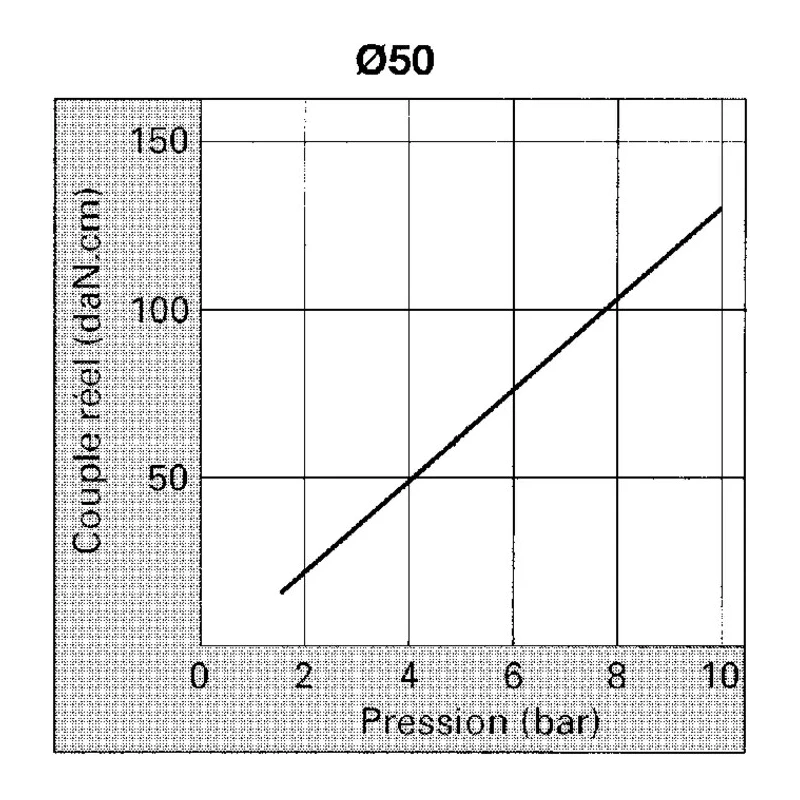

SMC CRB1BW50-90S-XF pneumatic rotary actuator from the CRB1 series features a 50 mm bore diameter and double shaft construction designed for reliable heavy-duty pneumatic rotary actuation. With a maximum operating pressure of 1 Mpa and a maximum torque rating of 2 Nm, this actuator is well suited for precise motion control in industrial automation, manufacturing, and fluid power applications.

The actuator is equipped with rubber cushioning to minimize impact and wear, ensuring longevity and smooth operation over extended use. It operates efficiently within a temperature range of 5°C to 60°C, making it suitable for diverse environmental conditions.

Mechanical performance is enhanced by the ability to withstand radial forces up to 245 N and axial forces up to 150 N, supported by robust bearings that maintain thrust and radial loads. The compact form factor includes a width of 66mm and length of 129mm, allowing installation in tight spaces while maintaining reliable operation.

This rotary actuator supports two rotation angles, 90° and 180°, providing versatility for various industrial tasks requiring controlled rotary movement. It complies with the REACH standard for safety and environmental considerations and is manufactured in France, assuring high-quality construction.

Key features include double shaft type, JIS connection thread standard, and port thread size of 1/8 inch G, facilitating integration with existing pneumatic systems. Its lightweight design with a gross weight of 810 grams supports ease of installation and maintenance.

The unit features a 50 mm bore diameter suitable for light to medium duty applications. Double shaft design improves reliability and facilitates direct mounting. Supports a maximum operating pressure of 1 Mpa for efficient pneumatic actuation.

Rubber cushioning ensures smooth operation with minimum wear. Wide temperature operating range from 5°C to 60°C enhances industrial usability. Maximum torque rating of 2 Nm is designed to handle moderate loads. Maximum radial and axial forces of 245N and 150N respectively provide robust mechanical performance.

Compact dimensions with a width of 66mm and length of 129mm for space-constrained installations. Port thread size 1/8 inch G with JIS connection standard ensures compatibility in pneumatic systems. Made in France maintaining high quality manufacturing standards and REACH compliance.

This pneumatic rotary actuator is widely used in industrial automation, manufacturing, fluid power, and pneumatic cylinder applications. It offers precise rotary motion control for actuating valves, dampers, and other rotary mechanisms in hydraulic and pneumatic systems. Explore the comprehensive range of Pneumatic Rotary Actuators on EnvMart to meet your industrial tool and automation needs.
