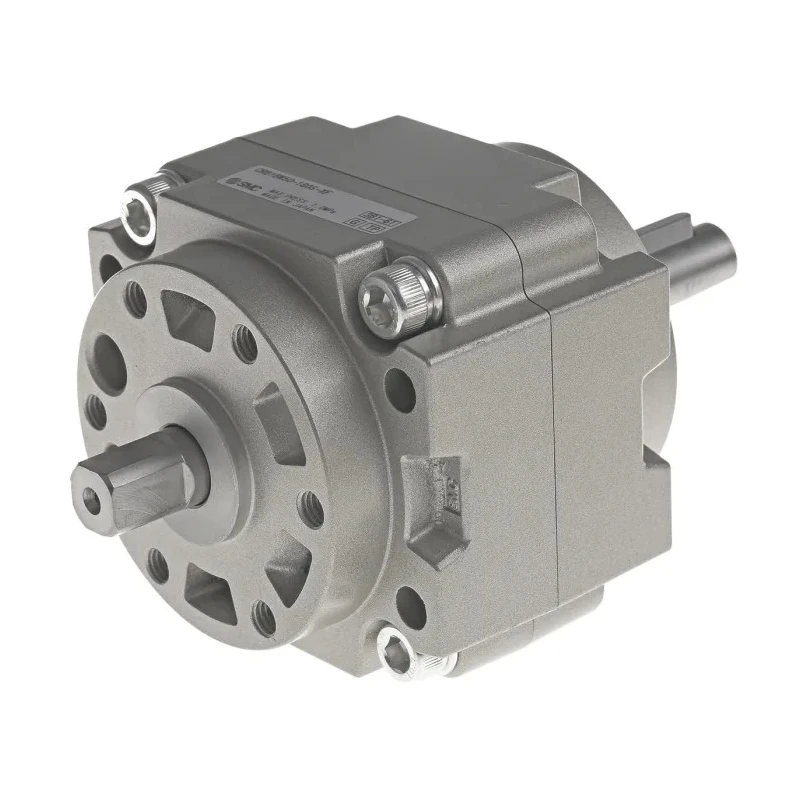

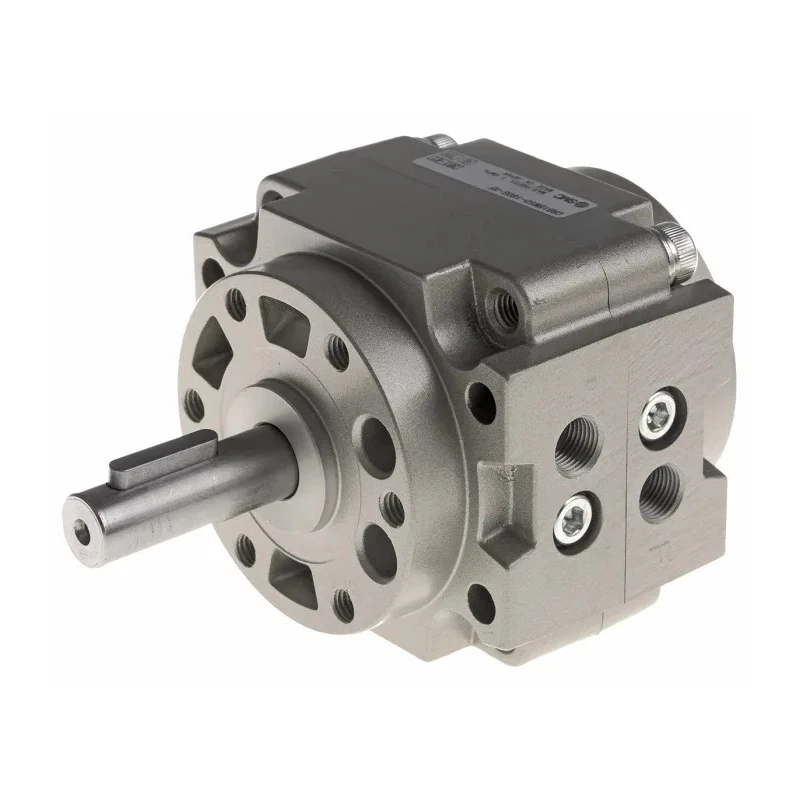

SMC Pneumatic Rotary Actuator CRB1 Series Double Shaft 50mm Bore 1 Mpa Pressure Rubber Cushioning

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Rotary Actuator CRB1 Series Double Shaft 50mm Bore 1 Mpa Pressure Rubber Cushioning



Category Pneumatic Rotary Actuator Brand SMC Condition New

Specifications

Country of Origin	Japan
Brand	SMC
Maximum Operating Pressure	1 Mpa
Length	129mm
Model	CRB1
Gross Weight	790g
Width	66mm
Series	CRB1
Maximum Operating Temperature	60°C
Sub Type	Single Vane
Minimum Operating Temperature	5°C
Bore Diameter	50mm
Shaft Type	Double Shaft
Standards/Approvals	REACH
Connection Thread Standard	JIS
Cushioning Type	Rubber
Port Thread Size	1/8 in G
Maximum Radial Force	245N
Maximum Torque Rating	1.6Nm
Choice of two rotation angles	90°and 180°

Key Features

Equipped with a double shaft for versatile rotary applications.
Features a bore diameter of 50mm suitable for precise control.
Operates reliably up to a maximum pressure of 1 Mpa.
Rubber cushioning ensures smooth operation and reduces wear.
Designed to work effectively in temperatures from 5°C to 60°C.
Capable of torque output up to 1.6 Nm for moderate load requirements.
Constructed with standards conforming to REACH for safety compliance.
Compact dimensions with length 129mm and width 66mm for easy integration.

Product Description

The SMC CRB1BW50-180S-XF Pneumatic Rotary Actuator from the CRB1 Series is engineered for industrial pneumatic applications requiring precise rotary motion. Featuring a double shaft design and a 50mm bore diameter, this actuator efficiently converts pneumatic pressure into rotary torque up to 1.6 Nm under maximum operating pressure of 1 Mpa. Rubber cushioning enhances durability by absorbing shocks and reducing noise during operation.

This actuator is suited for use in industrial, manufacturing, automation, hydraulics, and pneumatic systems where compact size with rugged performance is required. Operating within a temperature range of 5°C to 60°C, the device is ideal for controlled rotary positioning in constrained spaces.

With a compact length of 129mm and width of 66mm, the CRB1BW50-180S-XF allows for direct mounting and easy integration. The design includes JIS standard connection thread and a 1/8 in G port thread size for compatibility with standard pneumatic fittings.

Manufactured in Japan, the actuator meets REACH standards, ensuring compliance with international safety and environmental regulations. The product supports two rotation angle options, 90° and 180°, suitable for varying industrial automation needs.

Equipped with a double shaft for versatile rotary applications. 50mm bore diameter provides reliable force transmission. Maximum operating pressure rated at 1 Mpa for robust performance. Rubber cushioning type for smooth operation and extended service life.

Compact dimensions facilitate installation in tight spaces. Meets REACH environmental compliance standards. Operating temperature range from 5°C to 60°C. Maximum radial force of 245 N supports load demands. Port thread size of 1/8 in G enables standard pneumatic connections.

Choice of rotation angles: 90° and 180° for application flexibility.

This SMC pneumatic rotary actuator is ideal for hydraulic and pneumatic tools usage in manufacturing, industrial automation, and fluid power systems. Browsing other Pneumatic Rotary Actuators or SMC brand products on EnvMart can provide complementary components and tools.
