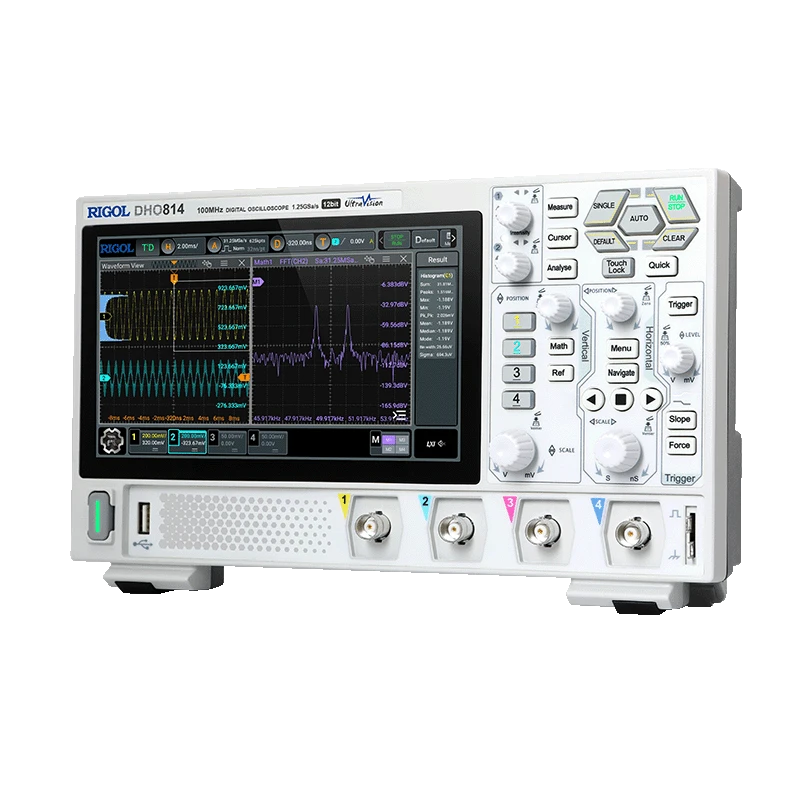

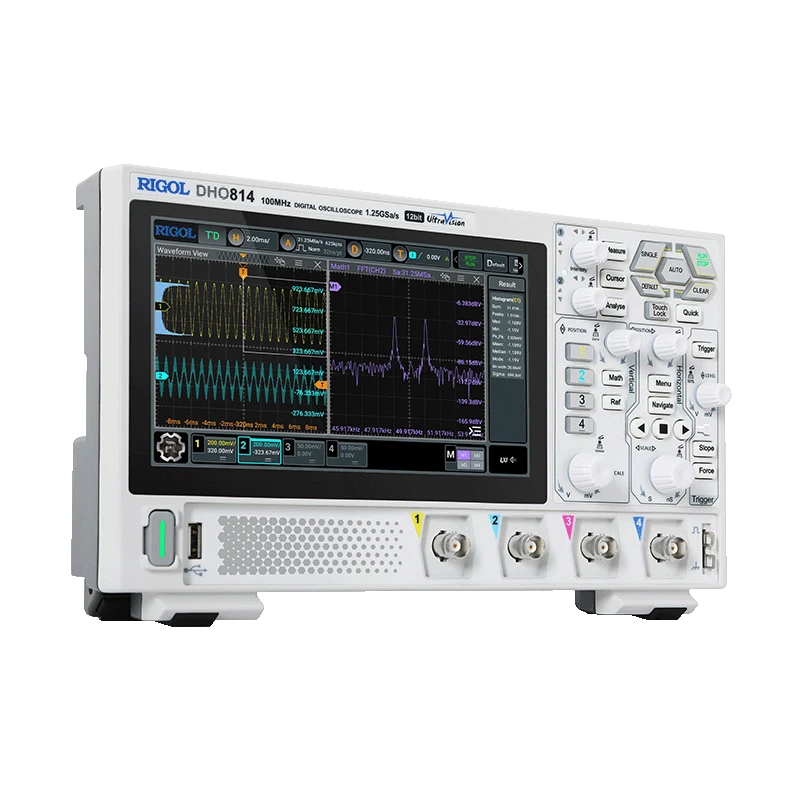

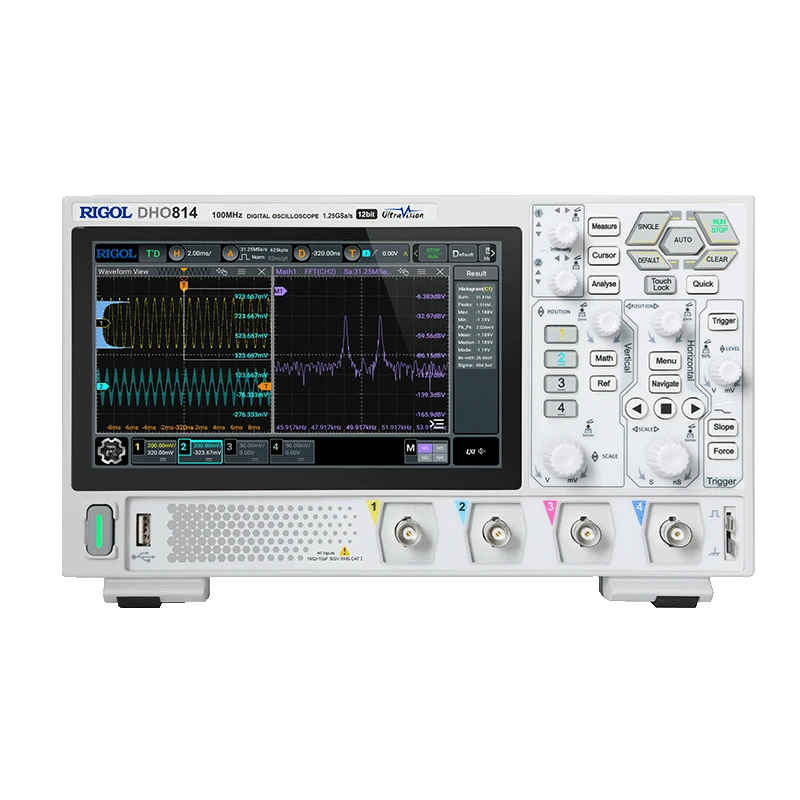

RIGOL DHO800 Series High-Resolution Digital Oscilloscope | DHO802 | DHO804 | DHO812 | DHO814
Model
Analog Bandwidth
Analog Channels
Specifications
| Country of Origin | India |
|---|---|
| Power Consumption | 45 W (max) |
| Display Type | 7-inch capacitive multi-touch, 256-level intensity grading |
| Brand | Rigol |
| Power Supply | USB Type-C, DC 15 V / 3 A |
| Applications | Embedded system development, electronics debugging, power electronics testing, educational laboratories, field service |
| Operating Temperature | 0°C to +50°C |

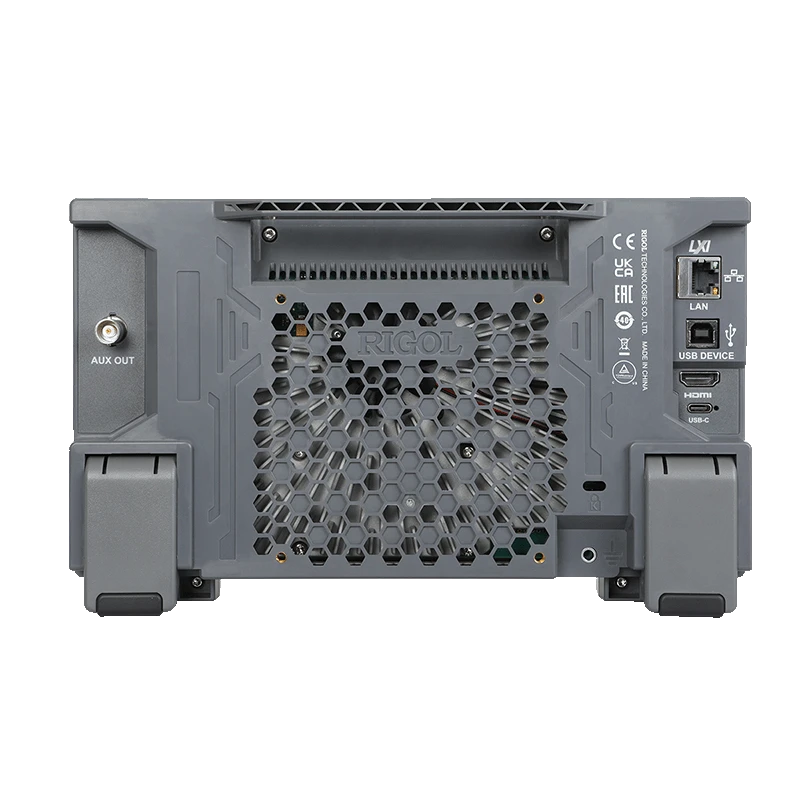

| Connectivity | USB Host/Device, LAN, HDMI |
| Operating System | Android |
| Processor | Cortex-A72, up to 1.8 GHz, 6-core |
| Series | DHO800 Series |
| Display Resolution | 1024 × 600 |
| Analog bandwidth | Up to 100 MHz |
| Waveform Capture Rate | 1,000,000 wfms/s (UltraAcquire) |
| Number Of Channels | 2 or 4 |
| External Trigger | Supported (2CH and 4CH) |
| Vertical Resolution | 12 bits |
| Trigger Types | Edge, Pulse, Slope, Video, Pattern, Duration, Timeout, Runt, Window, Delay, Setup/Hold, Nth Edge |
| Vertical Sensitivity | 500 µV/div to 10 V/div |
| Product Condition | New |
| Recommended Calibration Interval | 18 months |
| Maximum Sample Rate (real-time) | 1.25 GSa/s |
| Memory Depth (single/dual/full channel) | 25/10/5 Mpts |
| FFT Length | Up to 1 Mpts |
| Package Dimensions (L x W x H) | 265.35 x 161.75 x 77.38 mm |
| Weight (without package) | 1.78 kg |
Key Features
RIGOL DHO800 Series High-Resolution Digital Oscilloscope is a compact, advanced instrument suitable for embedded, power, and general electronics test applications.
- Provides 12-bit high vertical resolution with ultra-low noise performance.
- Supports analog bandwidth up to 100 MHz for high fidelity signal capture.
- Offers up to 1.25 GSa/s real-time sampling rate and 25 Mpts deep memory.
- Available in 2 or 4 channel configurations with external trigger option.
- Features a 1,000,000 wfms/s capture rate in UltraAcquire mode.
- Includes digital phosphor display with 256-level intensity grading.
- Touchscreen 7-inch 1024 × 600 capacitive multi-touch interface for user-friendly operation.
- Supports USB Host/Device, LAN, and HDMI connectivity as standard.
- Compact, lightweight, and economical design with robust build quality.
- Essential for industrial, laboratory, educational, and field service test environments.
Product Description
The RIGOL DHO800 Series High-Resolution Digital Oscilloscope, available in DHO802, DHO804, DHO812, and DHO814 models, delivers accurate signal measurement with true 12-bit vertical resolution, ultra-low noise, and memory depth up to 25 Mpts. Designed for embedded-system development, circuit debugging, and general-purpose testing, the series is suitable for industrial, laboratory, educational, and field-service applications.
The DHO800 Series offers bandwidth options up to 100 MHz, two- and four-channel configurations, and real-time sampling rates up to 1.25 GSa/s. Its fast UltraAcquire mode captures up to 1,000,000 waveforms per second, helping users detect rare events and analyse complex signals efficiently.
- True 12-bit vertical resolution
- Bandwidth options of 70 MHz and 100 MHz
- Two- and four-channel configurations
- Real-time sampling rate up to 1.25 GSa/s
- Memory depth up to 25 Mpts
- Vertical sensitivity from 500 µV/div to 10 V/div
- UltraAcquire capture rate up to 1,000,000 waveforms per second
- Edge, pulse, slope, video, pattern, duration, timeout, runt, window, delay, setup/hold, and Nth-edge triggering
- Protocol analysis for RS232/UART, I2C, SPI, and CAN
- Automatic measurement of up to 41 parameters
- Mathematical functions and FFT spectrum analysis
- Integrated frequency counter and digital voltmeter
- Seven-inch capacitive multi-touch HD display with 1024 × 600 resolution
- USB, LAN, and HDMI connectivity
- Three-year mainframe warranty
The DHO802 provides 70 MHz bandwidth with two channels, while the DHO804 provides 70 MHz bandwidth with four channels. The DHO812 offers 100 MHz bandwidth with two channels, and the DHO814 offers 100 MHz bandwidth with four channels. Typical applications include electronics manufacturing, power-electronics R&D, industrial automation, education, equipment maintenance, and embedded-system debugging.
Available Models: DHO802 | DHO804 | DHO812 | DHO814
