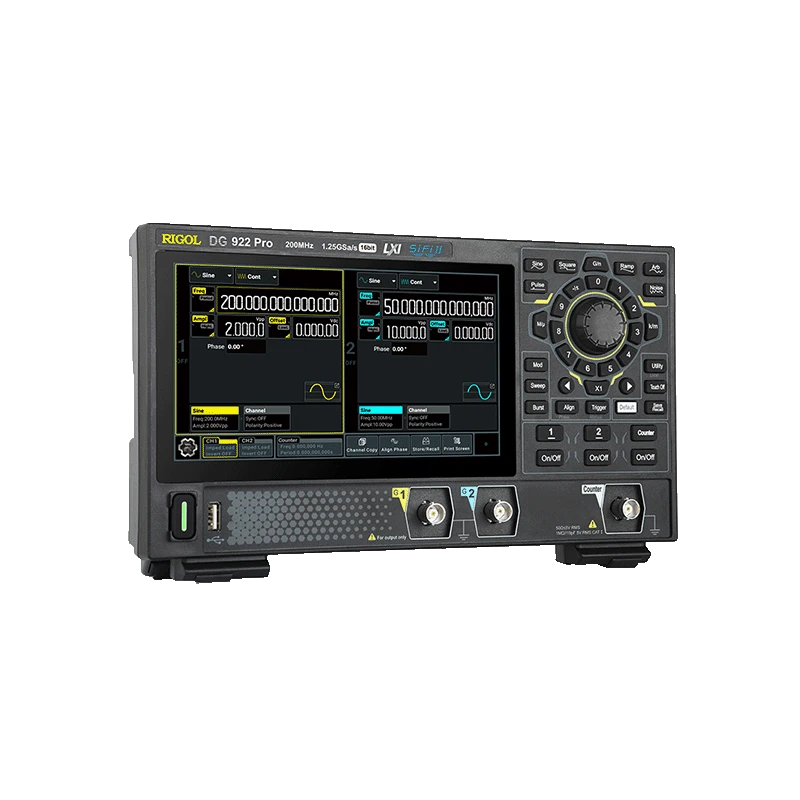

RIGOL DG900 Pro Series Function/Arbitrary Waveform Generator | DG902 Pro | DG912 Pro | DG922 Pro

The RIGOL DG900 Pro Series Function/Arbitrary Waveform Generator, available in DG902 Pro, DG912 Pro, and DG922 Pro models, is a high-performance dual-channel signal generator designed for R&D laboratories, electronic design validation, engineering education, manufacturing quality control, and advanced testing environments. Its compact design, high-frequency output, deep waveform memory, and flexible connectivity make it suitable for both benchtop and portable applications.

The RIGOL DG900 Pro Series offers model-specific output frequencies up to 200 MHz, a sampling rate up to 1.25 GSa/s, and 16-bit vertical resolution. These capabilities enable precise, stable, and high-fidelity waveform generation for circuit development, component testing, sensor simulation, communication-system experiments, and electronic product validation.

Two output channels allow users to generate independent or synchronised signals for complex test configurations. With waveform memory of 16 Mpts per channel, expandable to 32 Mpts, the series supports detailed arbitrary waveforms and advanced sequence generation for simulating real-world electronic signals.

• Model-specific output frequencies up to 200 MHz
• Two independent or synchronised output channels
• Sampling rate up to 1.25 GSa/s
• High 16-bit vertical resolution
• Waveform memory of 16 Mpts per channel
• Expandable memory up to 32 Mpts per channel
• Continuous, modulation, sweep, burst, arbitrary, and sequence modes
• AM, FM, PM, ASK, FSK, PSK, and PWM modulation
• Linear, logarithmic, and step sweep functions
• Integrated frequency counter up to 1 GHz
• Measurement of frequency, period, pulse width, and duty cycle
• Output amplitude as low as 1 mVpp
• Seven-inch capacitive touchscreen with 1024 × 600 resolution
• USB Type-C power input rated at 15 V and 3 A
• LAN connectivity with LXI-C compatibility
• Web-control support for remote operation
• Integrated 32 GB internal storage
• Compact design for benchtop and field testing

The built-in modulation functions enable users to reproduce complex test signals for receiver testing, communication experiments, circuit troubleshooting, and product verification. Sweep and burst modes provide additional flexibility for frequency-response testing, transient analysis, filter evaluation, and component characterisation.

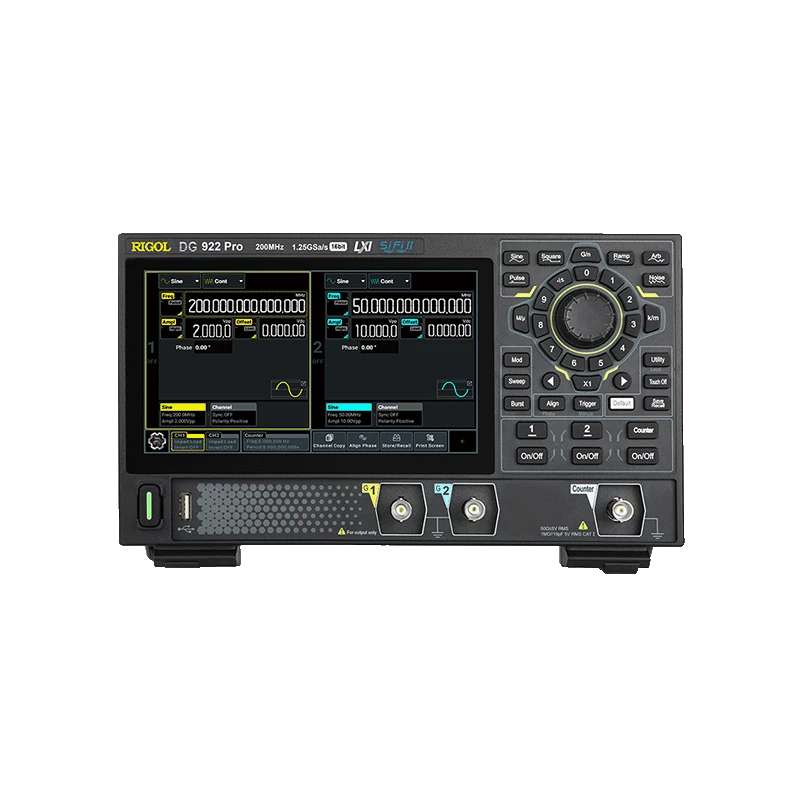

Its integrated 1 GHz frequency counter supports accurate measurement of frequency, period, pulse width, and duty cycle. The seven-inch capacitive touchscreen provides clear waveform visualisation and convenient access to frequency, amplitude, phase, modulation, sequence, sweep, burst, and channel settings.

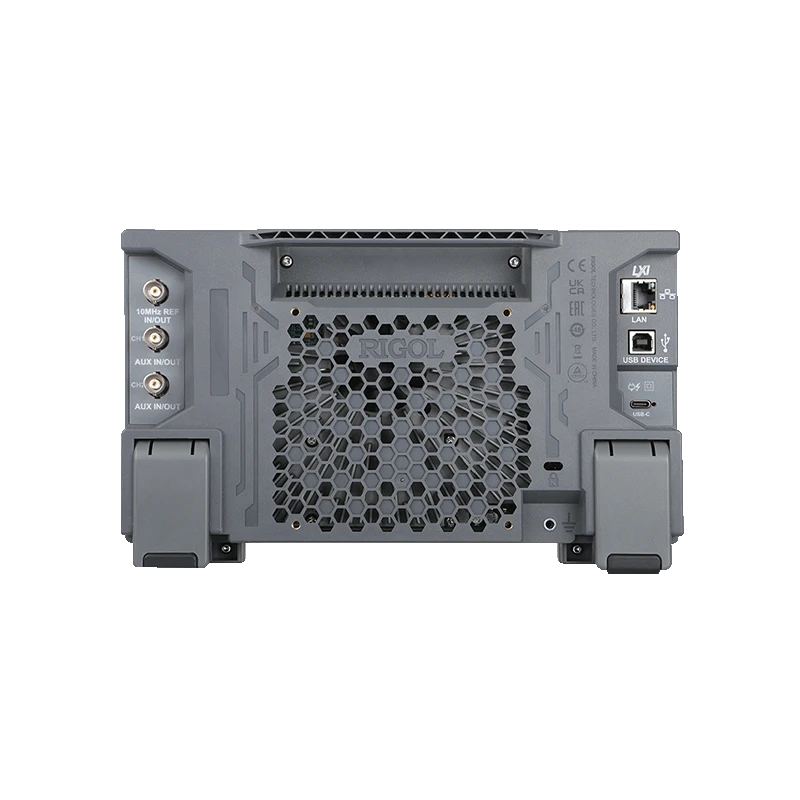

USB Type-C power support makes the DG900 Pro Series suitable for flexible laboratory setups and portable field applications. LAN connectivity, LXI-C compatibility, and web-based control allow convenient integration with computers, automated test systems, educational laboratories, and industrial production environments.

Typical applications include electronic circuit development, semiconductor testing, communication-system validation, sensor simulation, waveform analysis, manufacturing QA, equipment maintenance, field service, academic demonstrations, and advanced laboratory research.

Available Models: DG902 Pro | DG912 Pro | DG922 Pro
