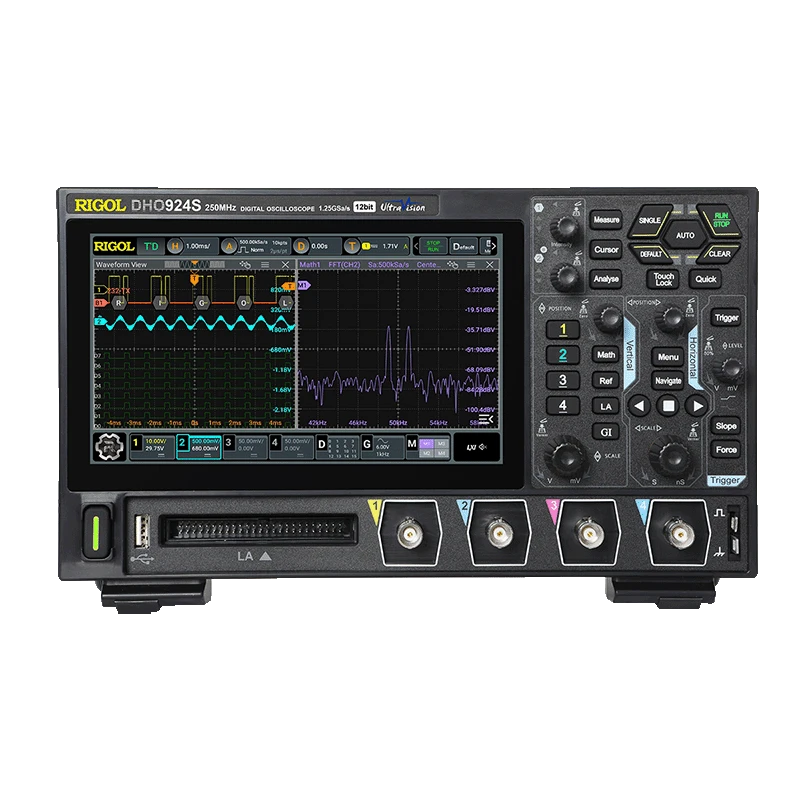

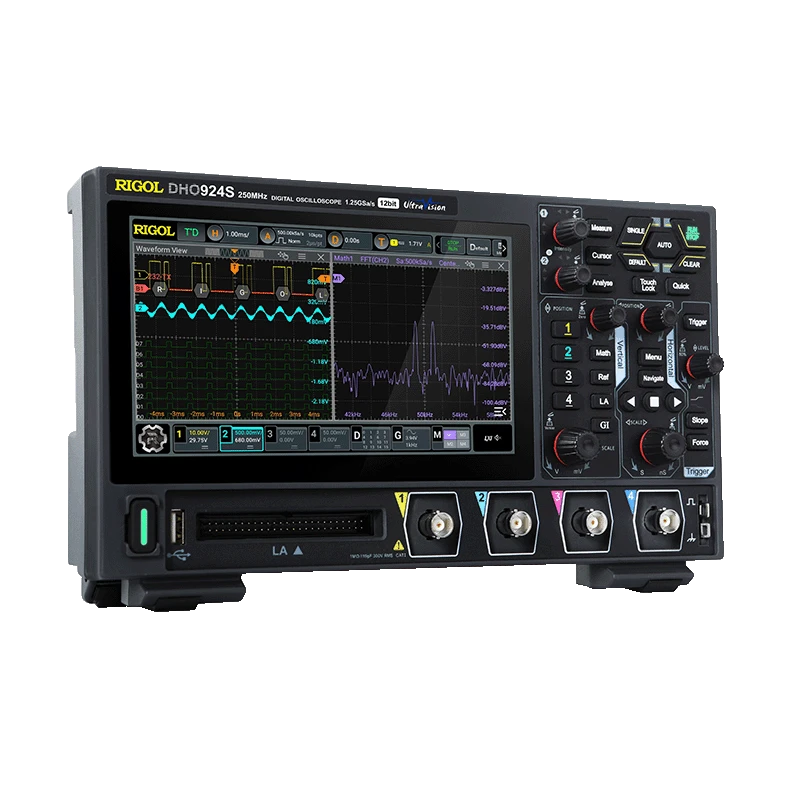

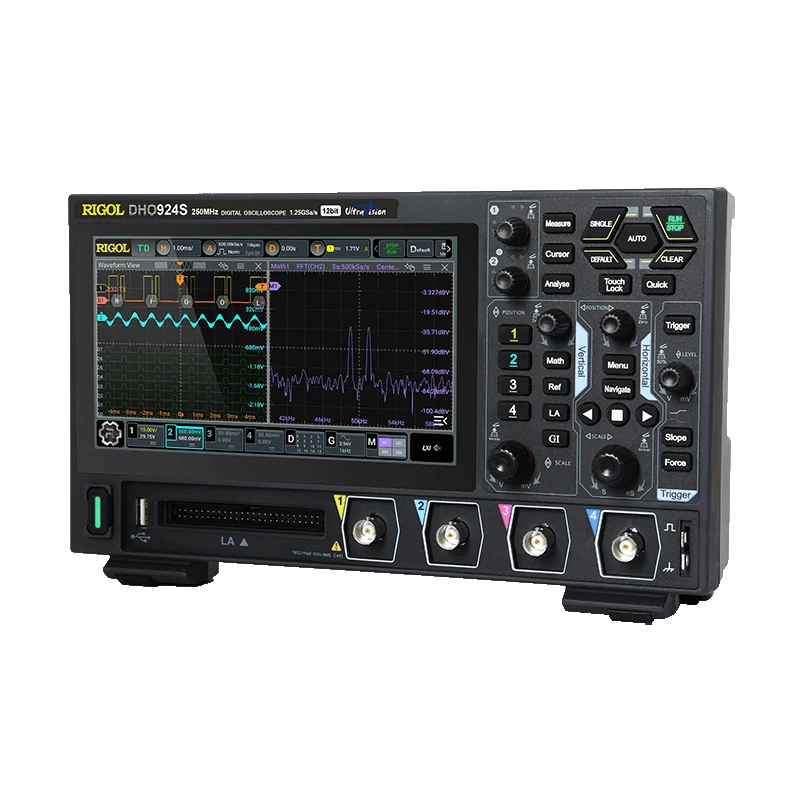

RIGOL High-Resolution Digital Oscilloscope DHO900 Series
Model
Analog Bandwidth
Max Sample Rate
Digital Channels
Analog Channels
Max Memory Depth
Specifications
| Country of Origin | China |
|---|---|
| Power Consumption | Max. 45 W |
| Display | 7-inch capacitive multi-touch, 1024×600 |
| Brand | Rigol |
| Power Supply | USB Type-C, DC 15 V / 3 A |
| Dimensions | 265.35 × 161.75 × 77.38 mm |
| Calibration Interval | 18 months (recommended) |
| Operating Temperature Range | 0°C to +50°C |

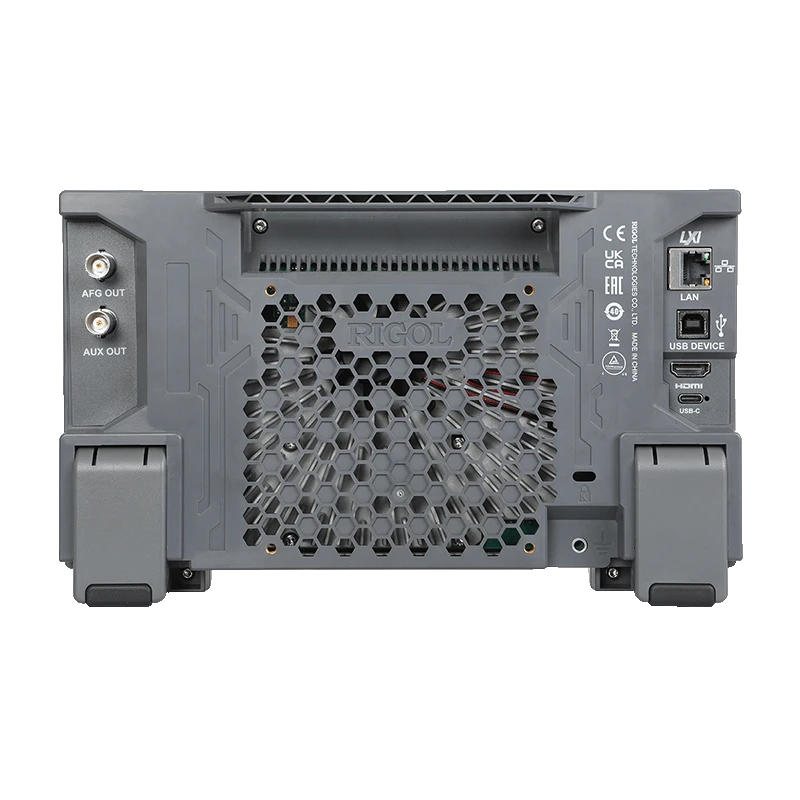

| Connectivity | USB, LAN, HDMI 1.4, Web Control |
| Model | DHO900 Series |
| Weight | 1.78 kg |
| Bandwidth | Up to 250 MHz |
| Sampling rate | 1.25 GSa/s (single); 625 MSa/s (dual); 312.5 MSa/s (quad) |
| Input Impedance | 1 MΩ ±1% |
| Waveform Capture Rate | 1,000,000 wfms/s (UltraAcquire mode) |
| Vertical Resolution | 12 bits |
| Maximum Input Voltage | CAT I 300 Vrms (analog), ±40 V peak (digital) |
| Memory Depth | Up to 50 Mpts |
| Product Condition | New |
| Analog Channels | 4 |
| Digital Channels | 16 |
| Minimum Vertical Sensitivity | 200 µV/div |
| Input Capacitance | 15 pF ±3 pF |
Key Features
Rigol DHO900 Series High-Resolution Digital Oscilloscope designed for embedded systems and precision signal analysis.
- 12-bit vertical resolution provides superior accuracy for detailed signal analysis.
- Offers 4 analog and 16 digital channels, suitable for mixed-signal debugging.
- Bandwidth options up to 250 MHz support high-speed applications.
- Ultra-fast sample rate of up to 1.25 GSa/s enables precise signal capture.
- Deep memory up to 50 Mpts allows for extensive data acquisition and review.
- Minimum vertical sensitivity of 200 µV/div ideal for low-amplitude signal measurements.
- Standard interfaces include USB, LAN, HDMI, and web-based remote control.
- Features advanced trigger modes and serial protocol decoding as standard.
- Optional Bode plot and arbitrary function generator enhance capability (S models).
- Compact, portable footprint with a 7-inch capacitive multi-touch display.
Product Description
Rigol DHO900 Series High-Resolution Digital Oscilloscope delivers advanced mixed-signal debugging for embedded development, power electronics, and R&D applications. With true 12-bit vertical resolution, analog bandwidth up to 250 MHz, and standard 4+16 channel configuration (4 analog channels and 16 digital with logic probe), it provides engineers with detailed waveform insight and versatility in both industrial and laboratory environments.
The DHO900 Series features an ultra-low noise front end for small-signal acquisition, a deep memory of up to 50 Mpts, and real-time sampling rates as high as 1.25 GSa/s. With advanced trigger modes, comprehensive measurement and analysis tools, and protocol decoding (I2C, SPI, UART, CAN, LIN), the DHO900 series supports high-performance troubleshooting and test workflows.
- 4 analog channels (125/250 MHz), 16 digital channels (logic probe required).
- True 12-bit vertical resolution on all models.
- Maximum sample rate up to 1.25 GSa/s (single channel).
- Memory depth up to 50 Mpts per channel for long data capture.
- Waveform capture rate up to 1,000,000 wfms/s (UltraAcquire mode).
- Standard protocol decoding and advanced triggering capabilities.
- Optional arbitrary function generator (1 channel, 25 MHz, 14-bit) and Bode plot (S models only).
- Integrated USB host/device, LAN, HDMI 1.4 video output, and web-based remote control.
- Compact portable design (Dimensions: 265.35 × 161.75 × 77.38 mm).
- Lightweight for bench-top and mobile applications (Weight: 1.78 kg).
- 3-year warranty (mainframe only) with recommended calibration interval of 18 months.
Typical industrial and laboratory use cases include embedded system debugging, mixed-signal analysis, power electronics validation, R&D lab measurements, and automotive/industrial electronics.
For more expert laboratory, electronics, and instrumentation solutions, browse EnvMart’s extensive range of oscilloscopes and Rigol test equipment.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Rigol DHO900 Series oscilloscope offers a maximum bandwidth of up to 250 MHz, suitable for high-speed applications.
The DHO900 Series features 4 analog channels and 16 digital channels, allowing for versatile mixed-signal debugging.
The oscilloscope has a true vertical resolution of 12 bits, providing enhanced accuracy for detailed signal analysis.
The maximum sample rate is 1.25 GSa/s for a single channel, with lower rates for dual and quad channel configurations.
The oscilloscope features a memory depth of up to 50 Mpts, allowing for extensive data acquisition and review.
The DHO900 Series includes USB, LAN, HDMI 1.4, and web-based remote control for versatile connectivity.
The minimum vertical sensitivity is 200 µV/div, making it suitable for low-amplitude signal measurements.
The oscilloscope weighs 1.78 kg and has dimensions of 265.35 × 161.75 × 77.38 mm, making it compact and portable.
The recommended calibration interval for the DHO900 Series oscilloscope is 18 months to ensure optimal performance.
Yes, the DHO900 Series comes with a 3-year warranty for the mainframe, providing peace of mind for your purchase.
