Chauvin Arnoux Handheld Digital Multimeter CA 5233 True RMS 600V CAT IV, 320g P01196733

Chauvin Arnoux CA 5233 handheld digital multimeter True RMS (Model: CA 5233, MPN: P01196733) is engineered for electrical maintenance professionals requiring reliable measurements of AC/DC voltages, currents, resistance, capacitance, temperature, and frequency. It supports testing in industrial, laboratory, HVAC, manufacturing, and electrical service applications with precise readings and robust protection.

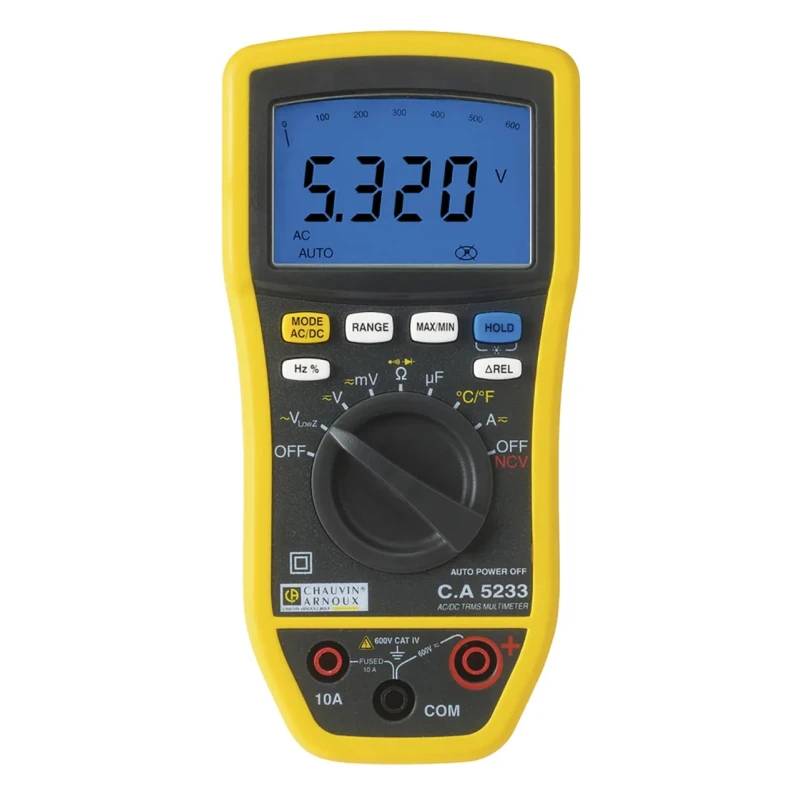

The instrument features a high-visibility 6,000-count backlit digital display with a 61-segment bar graph for comprehensive monitoring of signals and parameters. Its compact IP54-rated case provides integrated shock protection and excellent grip, enabling durable field use and safety.

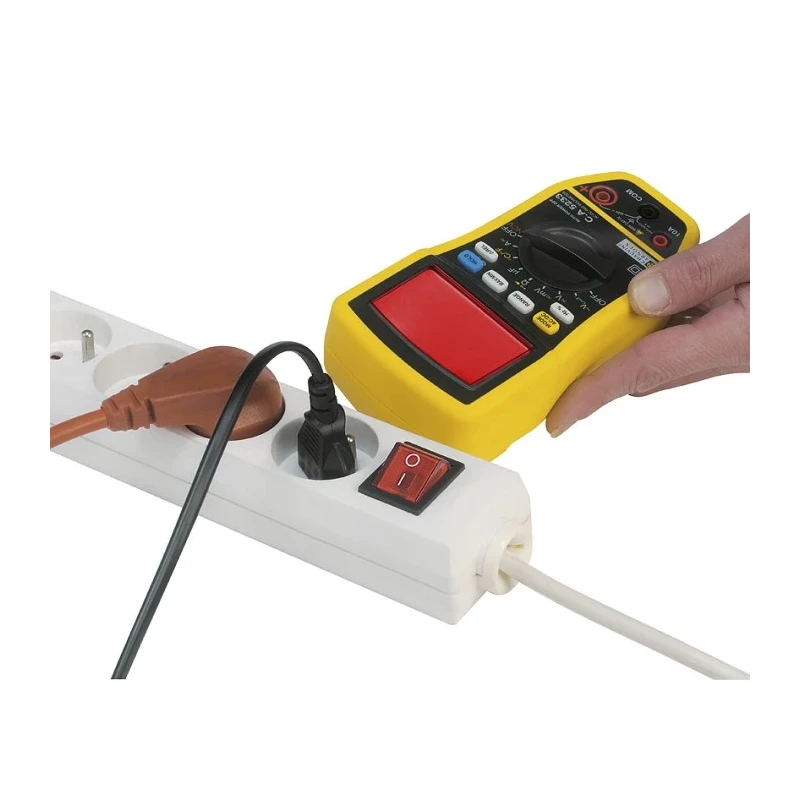

This model includes key capabilities such as true RMS measurement for accuracy under non-linear loads, non-contact voltage detection for safe voltage presence identification, and low impedance mode to prevent ghost voltage interference. Additional functions include relative and Min/Max modes facilitating detailed signal analysis and diagnostics.

Safety is paramount with the CA 5233, featuring CAT III and CAT IV safety categories rated up to 600 volts DC/AC, ensuring reliable operation in electrical installations and high-energy environments. The multimeter supports frequency measurement up to 1 kHz, capacitance measurements from 0.01 nF to 1000 µF, diode and continuity tests, and temperature readings via the supplied K-type thermocouple adapter.

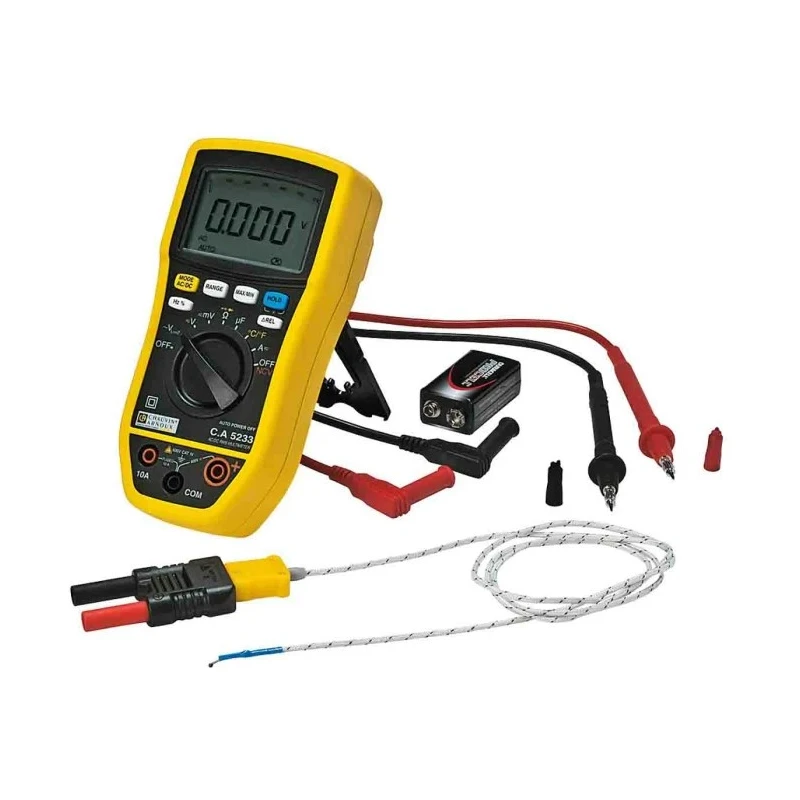

The product is supplied with a complete accessory set: one pair of red/black test probes, a TC-K adapter, a K-wire thermocouple, and a 9 V IEC 6LR61 battery, ready for immediate deployment. The lightweight design (320 g) and dimensions (155 mm length, 75 mm width and height) provide excellent portability and ease of use.

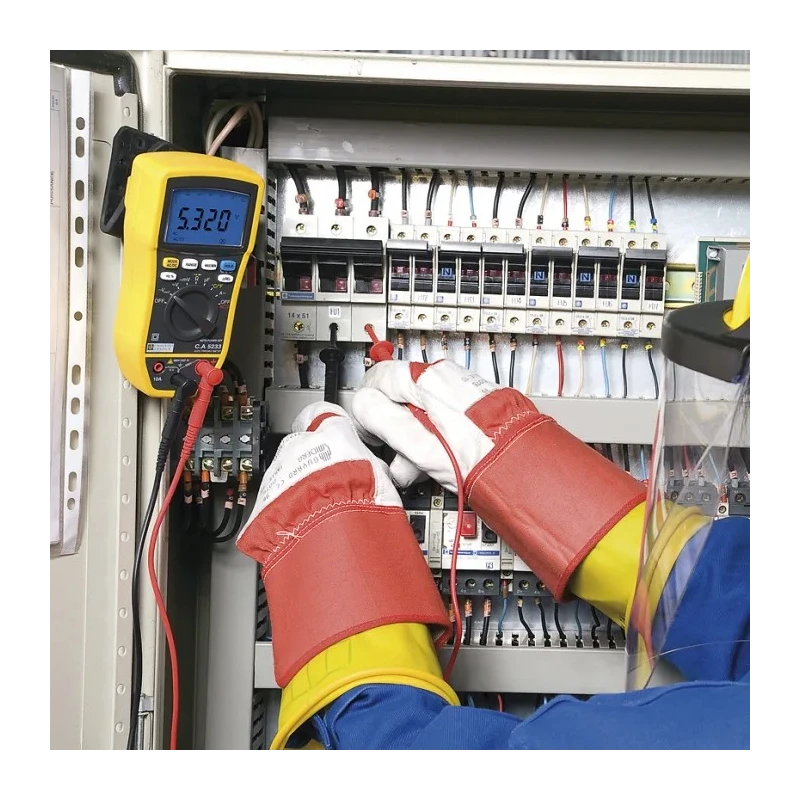

Typical applications encompass industrial electrical maintenance, troubleshooting of electrical equipment, HVAC system checks, laboratory measurements, and general electrical installation testing requiring high safety standards and measurement precision.

Measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, temperature, and continuity accurately. Large 6,000-count backlit display with bar graph for clear visibility. Non-contact voltage detection (NCV) with visual status indication.

Ergonomic IP54-rated shock-resistant compact enclosure. Relative and Min/Max measurement modes for comprehensive diagnostics. Delivered with complete test leads, thermocouple adapter, and battery included. CAT III and CAT IV 600 V safety ratings for industrial compliance.

Lightweight 320 g and compact dimensions for hand portability. Operating temperature range from 0°C to 50°C. Explore a wide range of Multimeters and test equipment in the Measuring & Testing Instruments category at EnvMart for all your electrical measurement needs.
