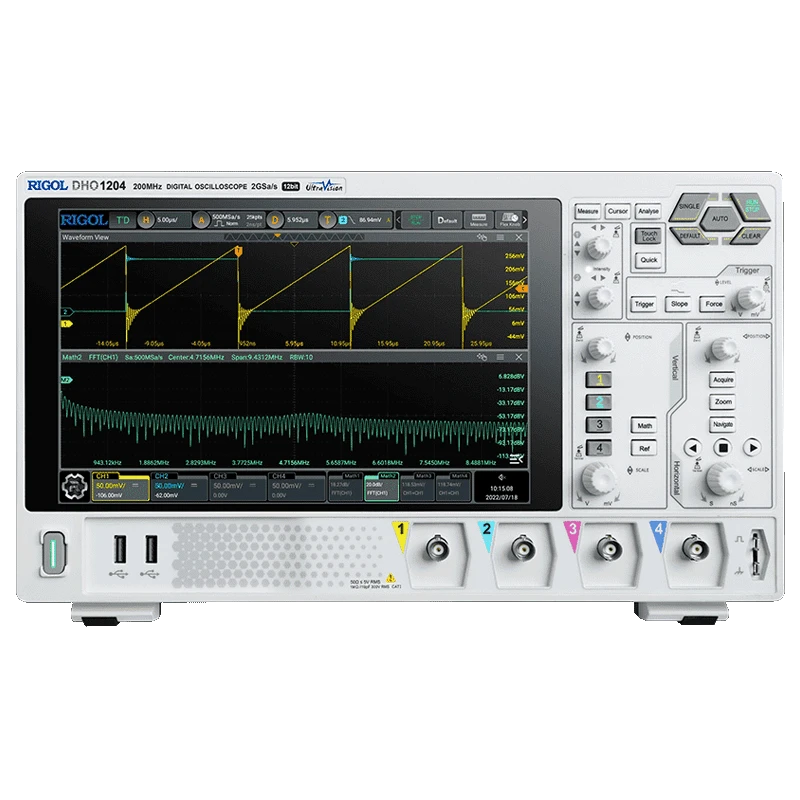

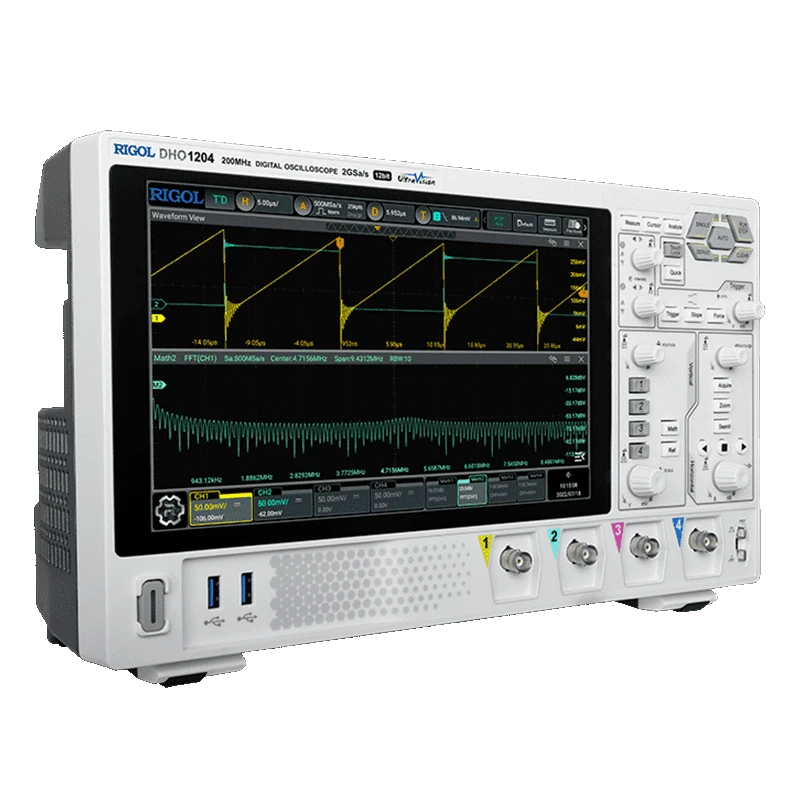

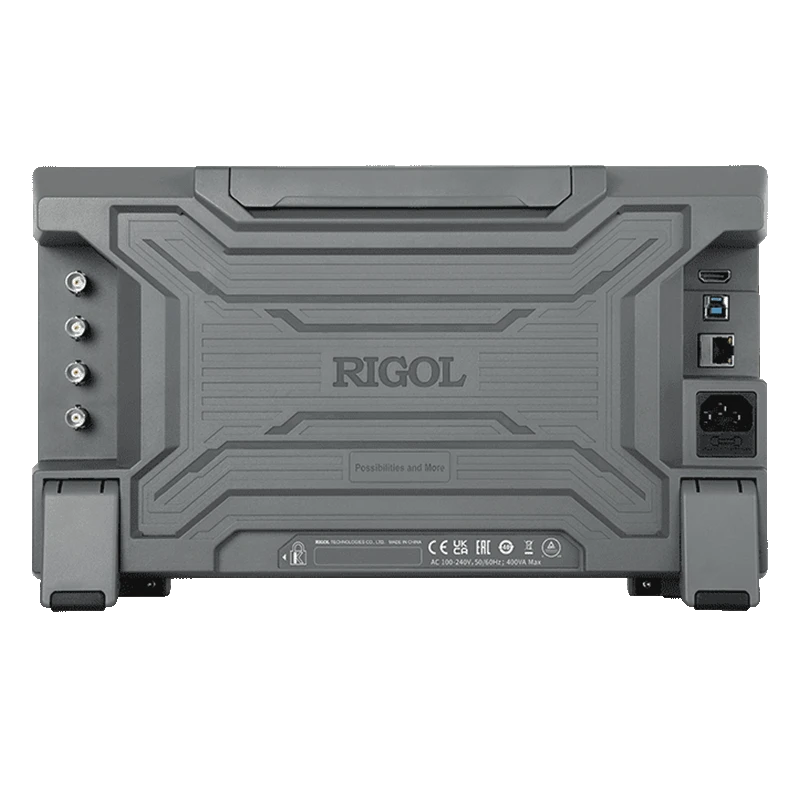

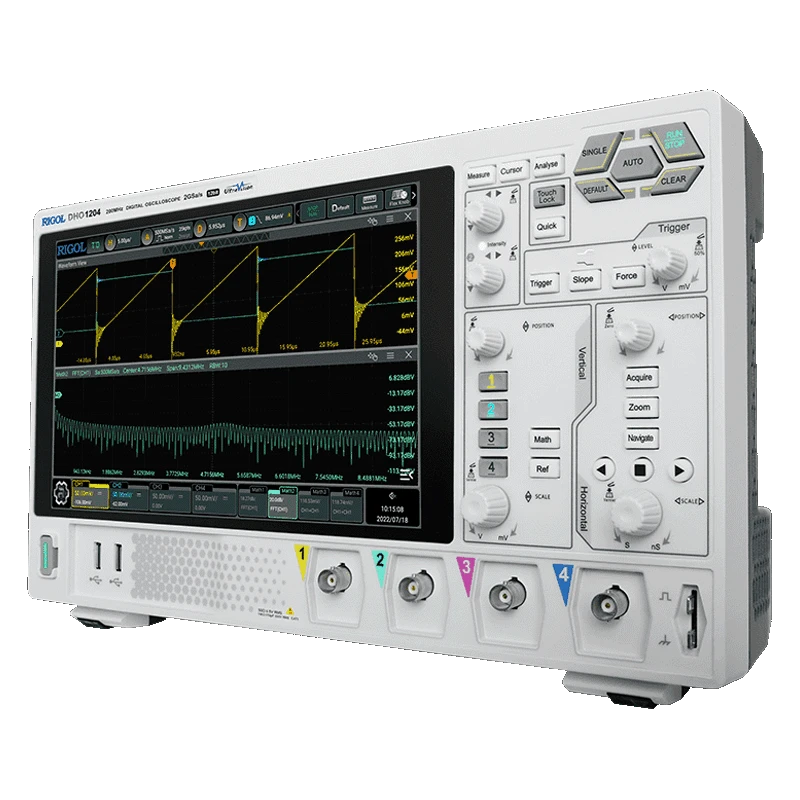

RIGOL DHO1000 Series Digital Oscilloscope | DHO1072 | DHO1074 | DHO1102 | DHO1104 | DHO1202 | DHO1202U | DHO1204 | DHO1204U
Model
Analog Bandwidth
Analog Channels
Max Memory Depth
Specifications
| Country of Origin | China |
|---|---|
| Power Consumption | Max 400 VA |
| Display | 10.1-inch 1280 x 800 capacitive multi-touch |
| Max. Input Voltage | CAT I 300 Vrms, 400 Vpk |
| Brand | Rigol |
| Power Supply | AC 100–240 V, 50–60 Hz |
| Dimensions | 358.14 × 214.72 × 120.62 mm |
| Model | DHO1000 Series |
| Operating System | Android |
| Weight | 3.8 kg |
| Bandwidth | Up to 200 MHz |
| Input Impedance | 1 MΩ ±1% |
| Sample Rate | 2 GSa/s (single channel) |
| Interfaces | USB 3.0 Host/Device, LAN, HDMI 1.4, AUX OUT, Trigger Out, Pass/Fail out |
| Channels | 2 or 4 Analog Channels + 1 EXT TRIG |
| Waveform Capture Rate | Up to 1,500,000 wfms/s (UltraAcquire mode) |
| Vertical Resolution | True 12 bits |
| Memory Depth | Standard: up to 50 Mpts, Optional: up to 100 Mpts |
| Timebase Range | From 2 ns/div up to 1 ks/div |
| Vertical Sensitivity | 500 µV/div to 10 V/div |
| Typical Applications | Embedded system design, debugging, power electronics, automotive, education labs |
| Product Condition | New |
| MPN | DHO1000 Series |
| Input Capacitance | 19 pF ±3 pF |
Key Features
Rigol DHO1000 Series High-Resolution Digital Oscilloscope provides engineers and laboratories with superior signal clarity and high-precision measurement for advanced diagnostics.
- True 12-bit vertical resolution for high-precision waveform capture.
- Supports bandwidths up to 200 MHz and a maximum real-time sampling rate of 2 GSa/s.
- Offers up to 4 analog channels and external trigger input for versatile signal analysis.
- Ultra-low noise front end enhances accurate small-signal measurements.
- Equipped with a 10.1-inch HD capacitive touch display and intuitive UI.
- Standard serial trigger and decode for embedded and power electronics.
- Memory depth up to 100 Mpts with fast UltraAcquire mode (1,500,000 wfms/s).
- Vertical sensitivity down to 500 µV/div for detailed signal visualization.
- Integrated spectrum analyzer (FFT), digital voltmeter, and comprehensive math functions.
- Standard USB, LAN, and HDMI interfaces for connectivity and remote control.
Product Description
The RIGOL DHO1000 Series Digital Oscilloscope, available in DHO1072, DHO1074, DHO1102, DHO1104, DHO1202, DHO1202U, DHO1204, and DHO1204U models, delivers true 12-bit resolution, bandwidth options up to 200 MHz, and real-time sampling rates up to 2 GSa/s. Designed for circuit design, debugging, and advanced laboratory measurements, the series provides ultra-low-noise performance with two- and four-channel configurations.
With memory depth up to 100 Mpts, waveform capture rates up to 1,500,000 waveforms per second, and hardware-based waveform recording up to 500,000 frames, the RIGOL DHO1000 Series captures fine signal details for embedded systems, power electronics, automotive testing, and industrial electronics.
- True 12-bit vertical resolution for high-precision waveform capture
- Bandwidth options up to 200 MHz
- Two- and four-channel model configurations
- Real-time sampling rate up to 2 GSa/s
- Memory depth up to 100 Mpts
- UltraAcquire capture rate up to 1,500,000 waveforms per second
- Ultra-low-noise front end for small-signal measurements
- Vertical sensitivity down to 500 µV/div
- Serial triggering and protocol decoding
- Integrated FFT spectrum analysis and digital voltmeter
- Advanced triggering, waveform search, navigation, and mathematical functions
- Mask-based pass/fail hardware testing
- USB, LAN, and HDMI connectivity for data transfer and remote operation
The package may include the main oscilloscope unit, probes, power cable, USB cable, and user manual, depending on the selected model. Typical applications include embedded-system design, power-electronics testing, automotive and industrial electronics, education, manufacturing, and R&D laboratory measurements.
Available Models: DHO1072 | DHO1074 | DHO1102 | DHO1104 | DHO1202 | DHO1202U | DHO1204 | DHO1204U
Browse more laboratory and electronic measuring instruments from RIGOL and compare the DHO1000 Series on EnvMart.
