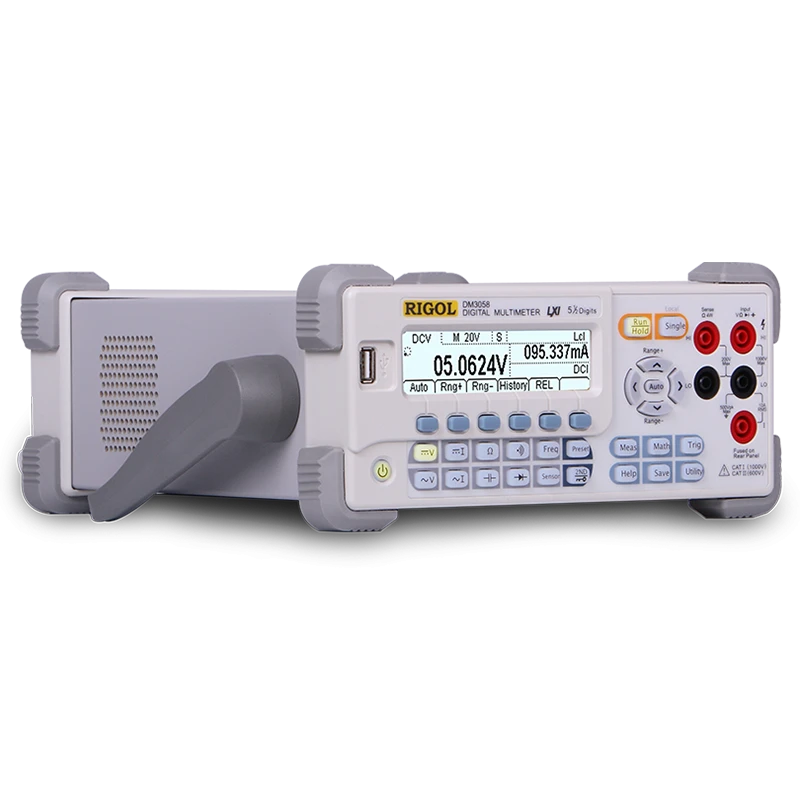

RIGOL Digital Multimeter DM3058E Series
Model
Accuracy
DCV Yearly Accuracy
Fastest Measurement Speed
Connectivity
Specifications
| Country of Origin | China |
|---|---|
| DC Voltage Range | 200 mV to 1000 V |
| AC Voltage Range | 200 mV to 750 V |
| Capacitance Range | 2 nF to 10000 μF |
| Power Consumption | 20 VA peak |
| Resistance Range | 200 Ω to 100 MΩ (2-wire/4-wire) |
| Diode Test Range | Fixed at 2.0 V |
| Brand | Rigol |
| Power Supply | AC 100–120 V / 200–240 V, 45 Hz–440 Hz |
| Operating Temperature | 0℃ to 50℃ |
| Dimensions | 107 × 231.6 × 290.5 mm |
| Storage Temperature | -20℃ to 70℃ |
| Humidity | 80% RH @ 40℃ non-condensing |
| Altitude | Up to 3000 m |
| Memory | 10 groups configuration, 2000 readings/group |
| Model | DM3058E |
| Weight | 2.5 Kg |
| Safety | IEC61010-1 |
| Display Resolution | 5½ digit, 240000 counts |
| DC Voltage Accuracy | Up to ±0.015% + 0.003% |
| LCD Display | 256 × 64 pixels, bilingual menu |
| DC Current range | 200 μA to 10 A |
| AC Current range | 20 mA to 10 A |
| DC Current Accuracy | Up to ±0.055% + 0.005% |
| Measurement Speed | Up to 123 readings per second |
| Measurement Category | CAT I 1000 V / CAT II 600 V |
| Continuity Range | Fixed at 2000 Ω |
| Fuse Protection | 10 A (rear), 12 A (internal), 250 V |
| Frequency Measurement Range | 20 Hz to 1 MHz |
| Product Condition | New |
| MPN | DM3058E |
| Dual Display Capability | Yes |
| True RMS Measurement | AC voltage and current |
| Input Resistance (DCV) | 10 MΩ (2 V to 1000 V ranges) |
| Input Protection (DCV) | 1000 V on all ranges |
| Shunt Resistor | 1 Ω (20/200 mA), 0.008 Ω (2/10 A) |
| AC Voltage Frequency Range | 20 Hz to 100 kHz |
| AC Current Frequency Range | 20 Hz to 10 kHz |
| Thermocouple Input | Built-in cold junction compensation |
| SCPI Command Compatible | Yes |
Key Features
Rigol DM3058E is a high-precision 5½ digit digital bench multimeter suitable for laboratory, R&D, and industrial applications.
- Features 240000 counts resolution and dual display capability.
- Measurement speed up to 123 readings per second for fast data acquisition.
- Supports True-RMS AC voltage and current measurements for accurate results.
- Wide voltage range from 200 mV to 1000 V and current range up to 10 A.
- Advanced math functions including Max, Min, Average, Std Dev, dBm, and more.
- Offers multiple interfaces: USB Host/Device and RS-232 for flexible connectivity.
- Equipped with built-in thermocouple cold junction compensation.
- Supports pass/fail testing and sensor measurements (DCV, DCI, frequency, 2-wire/4-wire resistance).
- 10 groups of preset and sensor configuration storage for quick recall.
- Robust input protection up to 1000 V and CAT I 1000 V/CAT II 600 V measurement categories.
Product Description
Rigol DM3058E is a 5½ digit high-precision digital bench multimeter designed for demanding laboratory testing, research and development, calibration, quality control, and automated production environments. Equipped with a 240000 counts display and dual display capability, this instrument provides exceptional accuracy and performance for a wide range of electrical measurements, including DC/AC voltage, DC/AC current, resistance (2-wire/4-wire), frequency, period, capacitance, continuity, and diode test.
- Resolution: 5½ digits, 240000 counts for superior measurement detail.
- Dual display capability for simultaneous measurements.
- Measurement speed up to 123 readings per second for high-throughput testing.
- True-RMS AC voltage and current measurement supporting frequencies up to 100 kHz and 10 kHz, respectively.
- Voltage measurement range: 200 mV to 1000 V and current range: 200 μA to 10 A with robust shunt resistor and fuse protection.
- Advanced statistical math: Max, Min, Average, Std Dev, dBm, dB, REL, Histogram functions for measurement analytics.
- Memory: Supports 10 groups of preset configurations, storage of 2000 readings per group, and history/sensor/instrument settings memory.
- Interfaces: USB Host/Device for data export, and RS-232C for remote control and integration; supports SCPI commands for automated systems.
- Built-in thermocouple cold junction compensation, wide compatibility with sensor measurements including temperature and 2-/4-wire resistance.
- Enclosure: Compact design with overall dimensions 107 mm × 231.6 mm × 290.5 mm and weight of 2.5 kg for benchtop stability.
- Safety: IEC61010-1 certified, measurement category CAT I 1000 V/CAT II 600 V.
This multimeter is ideal for laboratory, manufacturing line, quality inspection, educational, and calibration applications — perfect for electrical and electronic component testing in the industrial, R&D, and instrumentation sectors. Images reflect the actual instrument and its display interfaces.
Explore more laboratory and industrial measuring instruments from Rigol and leading brands in the Digital Multimeter category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Rigol DM3058E features a resolution of 5½ digits with 240,000 counts for superior measurement detail.
The DM3058E can measure DC/AC voltage, DC/AC current, resistance (2-wire/4-wire), frequency, capacitance, continuity, and diode tests.
The DM3058E can perform measurements at a speed of up to 123 readings per second, allowing for high-throughput testing.
Yes, the DM3058E supports True-RMS AC voltage and current measurements for accurate results across varying waveforms.
The voltage measurement range is from 200 mV to 1000 V, and the current range is from 200 μA to 10 A.
The DM3058E is IEC61010-1 certified and has measurement categories CAT I 1000 V and CAT II 600 V for safe operation.
Yes, the DM3058E features USB Host/Device and RS-232 interfaces for flexible connectivity and data export.
The DM3058E weighs 2.5 kg and has dimensions of 107 mm × 231.6 mm × 290.5 mm, making it compact for benchtop use.
Yes, the DM3058E supports 10 groups of preset configurations, with storage for 2000 readings per group.
The operating temperature range for the DM3058E is from 0℃ to 50℃, ensuring reliable performance in various environments.
