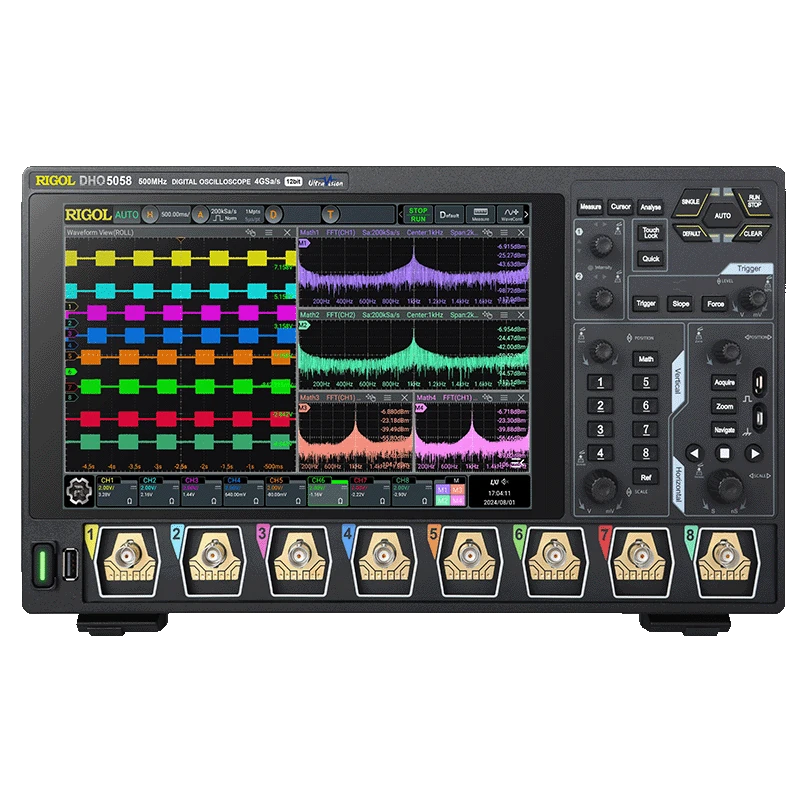

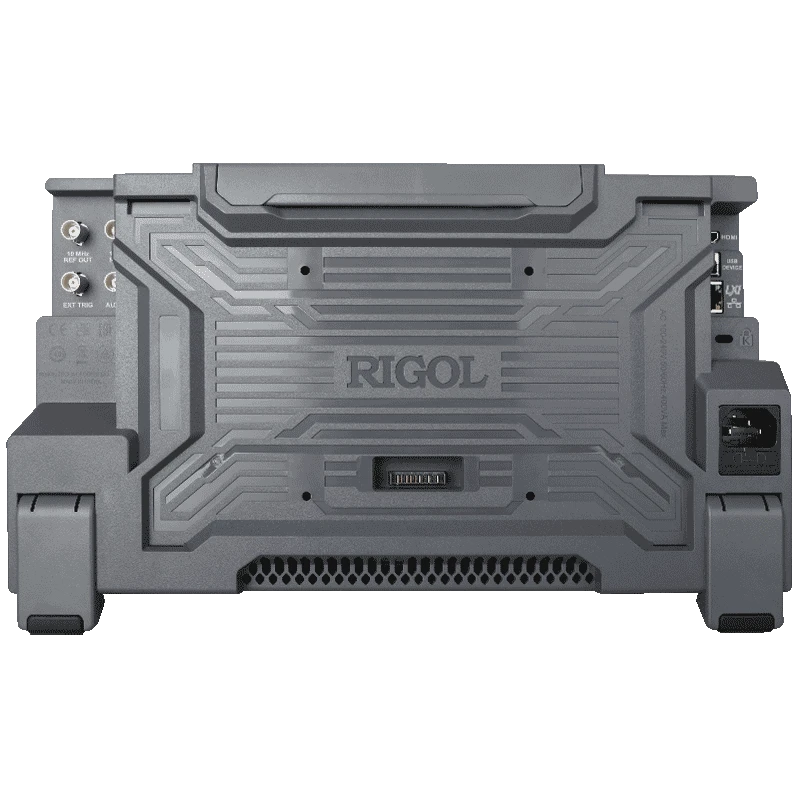

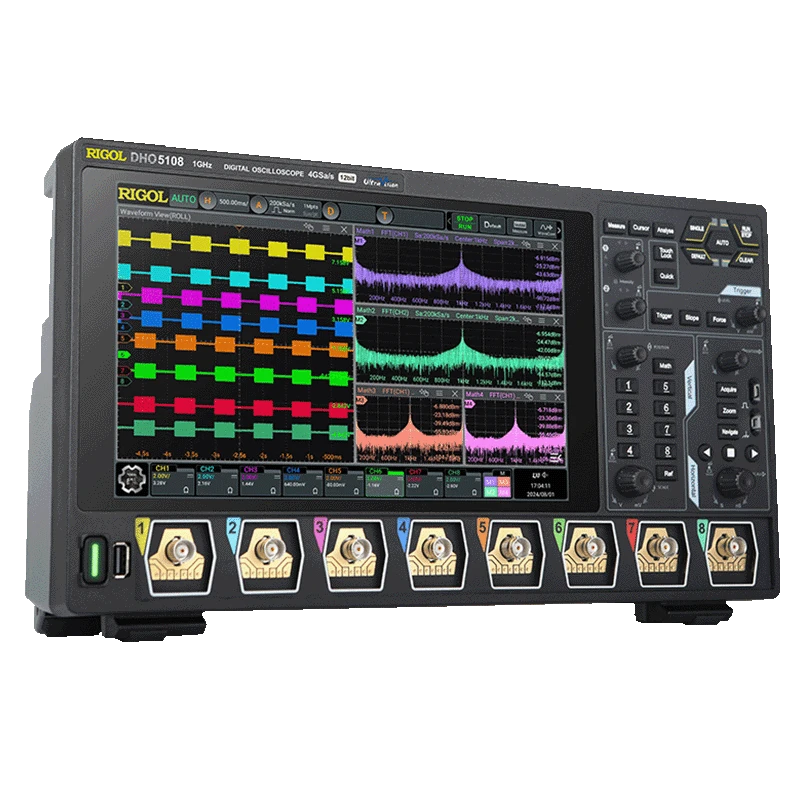

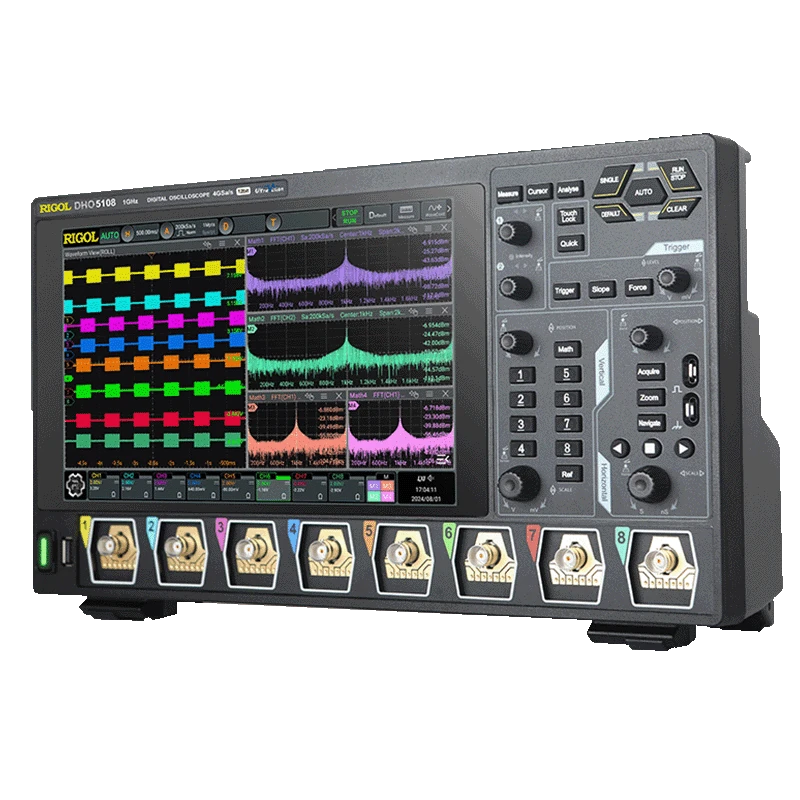

RIGOL DHO5000 Series Digital Oscilloscope | DHO5054 | DHO5058 | DHO5104 | DHO5108
Model
Analog Bandwidth
Max Sample Rate
Analog Channels
Max Memory Depth
Specifications
| Country of Origin | China |
|---|---|
| Power Consumption | Max. 400 VA |
| Display | 10.1-inch capacitive multi-touch |
| Brand | Rigol |
| Power Supply | AC 100–240 V, 50–60 Hz |
| Dimensions | 335 × 235 × 154 mm |
| Model | DHO5000 Series |
| Operating System | Android |
| Weight | 5.3 Kg |
| Sampling rate | Up to 4 GSa/s (single & half-channel), 2 GSa/s (8-CH full-channel) |
| Processor | Cortex-A72 + Cortex-A53, 6-core |
| Display Resolution | 1280 × 800 pixels |
| Input Impedance | 1 MΩ ±1%, 50 Ω ±1% |
| Interfaces | USB 3.0 Host/Device, LAN (10/100/1000 Base-T, LXI-C), HDMI 1.4 |
| Analog bandwidth | 500 MHz / 1 GHz |
| Waveform Capture Rate | 1,000,000 wfms/s (Record mode), 200,000 wfms/s (Vector mode) |
| Number Of Analog Channels | 4, 6, or 8 |
| Vertical Resolution | 12-bit (up to 16-bit High-Resolution mode) |
| Maximum Input Voltage | 1 MΩ: CAT I 300 Vrms/400 Vpk; 50 Ω: 5 Vrms |
| Memory Depth | 500 Mpts (single & half-channel), 250 Mpts (full-channel) |
| Timebase Range | 200 ps/div to 500 s/div |
| Bandwidth Limit | 20 MHz / 250 MHz / Full (selectable) |
| Product Condition | New |
| MPN | DHO5000 Series |
| Oscilloscope Type | Digital, High-Resolution |
| RAM | 4 GB |
| Timebase Accuracy | ±1.5 ppm (±1 ppm/year) |
| Timebase Resolution | 20 ps |
| Waveform Recording | Up to 500,000 frames |
| Recommended Calibration Interval | 18 months |
| Number of Digital Channels | 16 (MHO models, logic probe required) |
| Minimum Vertical Sensitivity | 100 µV/div |
| Input Capacitance | 19 pF ±3 pF |
| External Trigger Bandwidth | 200 MHz |
Key Features
Rigol DHO5000 Series High-Resolution Digital Oscilloscope for advanced validation, debugging, and test applications.
- True 12-bit vertical resolution, expandable to 16-bit in High-Resolution mode.
- Analog bandwidth options up to 1 GHz supporting 4, 6, or 8 analog channels.
- Maximum real-time sampling rate of up to 4 GSa/s and deep memory depth of 500 Mpts per channel.
- Waveform capture rate up to 1,000,000 wfms/s for capturing complex, low-noise signal events.
- Minimum vertical sensitivity of 100 µV/div for high-precision measurements.
- 10.1-inch capacitive multi-touch display with 1280 × 800 resolution for intuitive operation.
- Advanced trigger, search, and navigation functions with event table and time navigation support.
- Integrated FFT, digital voltmeter, frequency counter, and optional dual-channel 50 MHz AFG.
- Portable testing supported by battery-powered design and versatile USB, LAN, HDMI connectivity.
- Supplied with 3-year mainframe warranty and recommended 18-month calibration interval.
Product Description
The RIGOL DHO5000 Series High-Resolution Digital Oscilloscope, available in DHO5054, DHO5058, DHO5104, and DHO5108 models, provides precise signal analysis for advanced electronics testing, design validation, and debugging in laboratory and industrial environments. It features true 12-bit vertical resolution, expandable to 16-bit in High-Resolution mode, enabling accurate, low-noise measurements for power electronics, semiconductor research, and embedded-system development.
The series supports bandwidths up to 1 GHz, up to 8 analog channels, and optional 16 digital channels for detailed analysis of complex signals. With real-time sampling rates up to 4 GSa/s and memory depth up to 500 Mpts per channel, it can capture long waveform sequences for comprehensive investigation. Its waveform capture rate of up to 1,000,000 waveforms per second helps identify rare signal events quickly.
A 10.1-inch capacitive multi-touch display provides clear visualization and convenient operation. Advanced triggering, protocol decoding, USB, LAN, and HDMI connectivity make these oscilloscopes suitable for R&D, quality testing, manufacturing, and educational laboratories.
Available Models: DHO5054 | DHO5058 | DHO5104 | DHO5108
