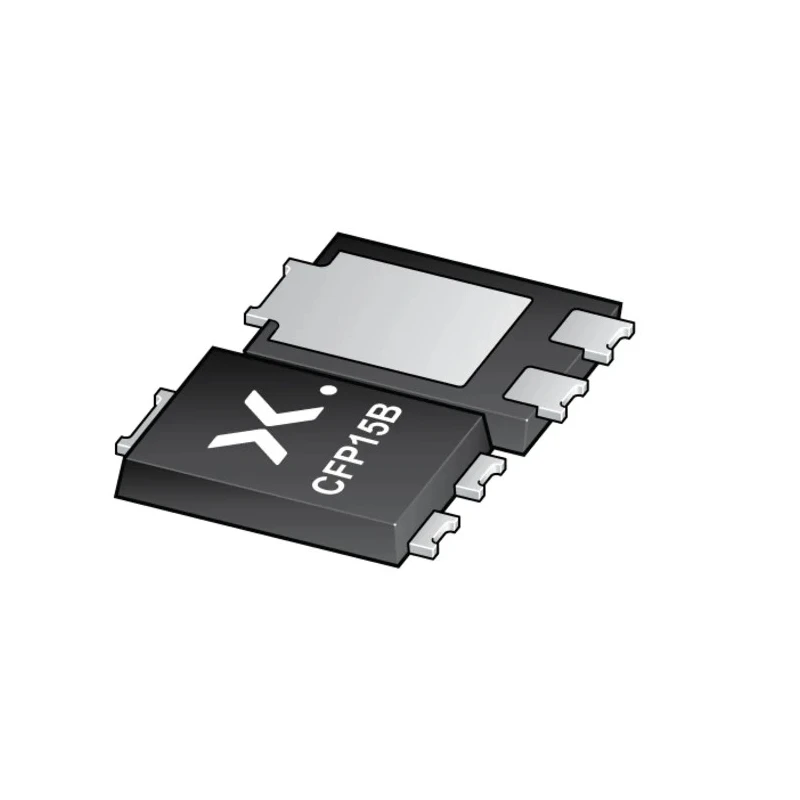

Nexperia Schottky Barrier Surface-Mount Diode 60 V 2 A Low Forward Voltage CFP15B
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | CFP15B |
| Mount Type | Surface |
| Series | PMEG060T040CLPE |
| Maximum Operating Temperature | 175°C |
| Package Type | CFP15B |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Peak Non-Repetitive Forward Surge Current Ifsm | 110A |
| Maximum Forward Voltage Vf | 620mV |
Key Features
- Dual Schottky barrier rectifier in common cathode configuration for efficient switching.
- Low forward voltage of 620 mV reduces power loss during conduction.
- Maximum continuous forward current of 2 A per diode supports moderate current applications.
- Wide operating temperature range from -55°C to 175°C ensures reliability in harsh environments.
- Supplied as a surface-mount device (SMD) in a compact CFP15B plastic package with typical height of 0.95 mm.
- Utilizes Trench MEGA Schottky technology for low leakage and enhanced efficiency.
- High surge current capability of 110 A peak non-repetitive forward surge.
- Compliance with RoHS standards and automotive-grade AEC-Q101 qualification.
Product Description
Nexperia PMEG060T040CLPEZ is a dual Schottky barrier rectifier diode designed for surface-mount applications, encapsulated in a CFP15B (SOT1289B) package. It features a common cathode configuration and is engineered for maximum efficiency with Trench MEGA technology.
This diode provides a maximum continuous forward current of 2 A per diode and supports a peak reverse repetitive voltage of 60 V, making it suitable for various power management and rectification tasks.
The device operates reliably across a broad temperature range from -55°C up to 175°C, ensuring stability in demanding industrial, automotive, and electronic environments.
Its low forward voltage drop at 620 mV minimizes conduction losses and improves overall circuit efficiency. The diode also boasts a high surge current capacity of up to 110 A for transient conditions.
The CFP15B plastic package is compact with a typical height of 0.95 mm, optimized for automated PCB assembly processes and space-constrained designs. Nexperia's PMEG060T040CLPEZ meets RoHS environmental standards and automotive AEC-Q101 quality requirements, endorsing its quality and reliability for automotive electronics.
Dual Schottky barrier rectifier in a surface-mount package. Maximum forward current 2 A per diode. Peak reverse voltage 60 V. Low forward voltage of 620 mV. Operating temperature from -55°C to 175°C. High surge current 110 A peak.
RoHS compliant and automotive AEC-Q101 certified. Compact CFP15B package with flat leads.
This diode is ideal for power supplies, rectifiers, and automotive electronics where low forward voltage and efficiency are critical. Designers can benefit from the advanced Trench MEGA Schottky technology to reduce power dissipation and improve thermal performance.
Explore the full range of Schottky diodes on EnvMart for high-quality semiconductor components tailored to industrial and commercial electronics.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this diode is 2 A per diode.
This model has a peak reverse repetitive voltage rating of 60 V.
The maximum forward voltage drop of this diode is 620 mV.
The diode operates reliably within a temperature range from -55°C to 175°C.
It has a high surge current capability of up to 110 A peak non-repetitive forward surge.
This diode is supplied in a compact CFP15B plastic package.
Yes, this model is RoHS compliant and meets AEC-Q101 automotive standards.
This diode is designed for surface mount applications.
It utilizes Trench MEGA Schottky technology for low leakage and enhanced efficiency.
This model is suitable for power management and rectification tasks in automotive and industrial electronics.
The country of origin for this diode is India.
This diode is part of the PMEG060T040CLPE series.
