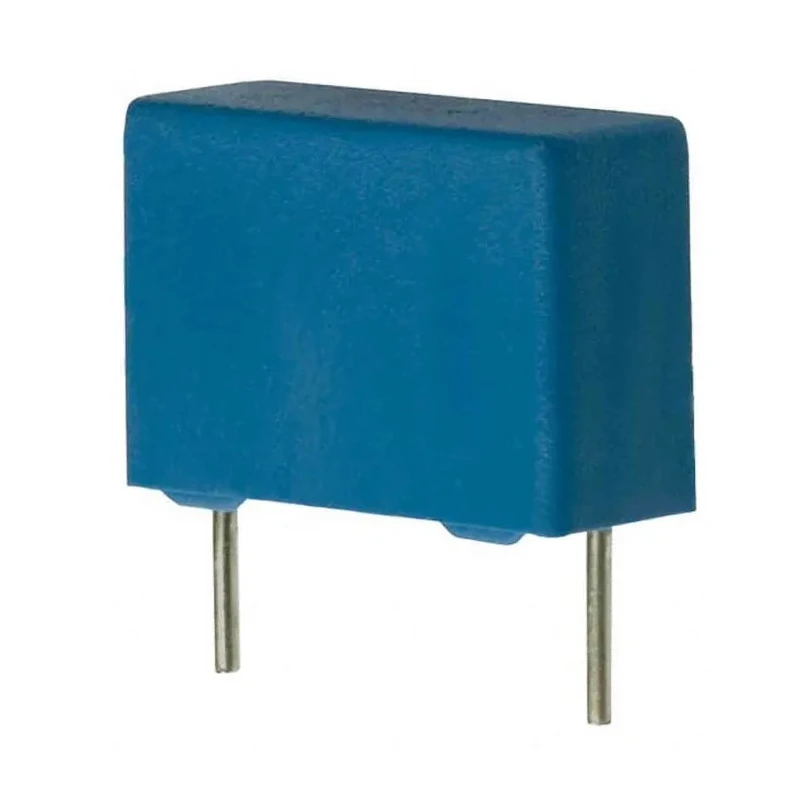

TDK Film Capacitor 100 nF 1.6kV AC 1.6 kV DC Through Hole Mount B32654A1104J000

Free Delivery in India | Lowest Global Shipping Charges

TDK Film Capacitor 100 nF 1.6kV AC 1.6 kV DC Through Hole Mount B32654A1104J000



Category Film Capacitor Brand TDK Condition New

Specifications

Country of Origin	China
Brand	TDK
Height	24.5mm
Length	31.5mm
Model	B32654A1104J000
Width	14mm
Mount Type	Through Hole
Series	B32654
Maximum Operating Temperature	110°C
Capacitance	100nF
Standards/Approvals	RoHS, UL
Pin Count	2
Rated AC Voltage	1.6kV ac
Rated DC Voltage	1.6kV dc
Lead Pitch	27.5mm
Lead Diameter	0.8mm
Automotive Standard	AEC-Q200 Rev D

Key Features

Capacitance value of 100 nF suitable for high voltage applications.
Rated for both 1.6 kV AC and 1.6 kV DC operation.
Through hole mount type with 27.5 mm lead pitch for PCB assembly.
Constructed with polypropylene film for low inductance and high pulse strength.
Complies with automotive standard AEC-Q200 Rev D for reliability in automotive systems.
Maximum operating temperature of 110°C for thermal stability.
Lead diameter of 0.8 mm with pin count of 2 for secure connection.
Compact dimensions with length 31.5 mm, width 14 mm, and height 24.5 mm.

Product Description

TDK B32654A1104J000 is a polypropylene Film Capacitor featuring a capacitance of 100 nF and a rated AC and DC voltage of 1.6 kV each. It uses through hole mounting with a standard 27.5 mm lead pitch for easy PCB integration. Designed for high pulse strength and low inductance, this capacitor ensures reliable performance in demanding applications such as electronic ballasts and switch-mode power supplies.

The capacitor is certified to meet automotive standard AEC-Q200 Rev D, making it suitable for automotive electronic systems requiring robust and durable components. It operates reliably up to 110°C, providing strong thermal stability for extended lifespan and operational safety.

With 2 pins and a lead diameter of 0.8 mm, its compact dimensions of 31.5 mm length, 14 mm width, and 24.5 mm height allow versatile use in space-constrained assemblies. The product is RoHS and UL compliant, ensuring adherence to environmental and safety standards. Halogen-free versions are available on request to support environmentally sensitive designs.

Manufactured in China, this capacitor is ideal for industrial, electronic, automotive, and manufacturing use cases, especially where high voltage and pulse resistance are critical. Its polypropylene film dielectric offers excellent electrical properties and durability.

Capacitance of 100 nF for precision energy storage. Rated AC and DC voltage of 1.6kV for versatile application. Through hole mount for secure PCB installation. High pulse strength and low inductance for reliable circuit performance.

Compliance with automotive AEC-Q200 Rev D standard. Maximum operating temperature of 110°C ensures thermal tolerance. RoHS and UL compliant for safety and environmental requirements. Compact physical dimensions for flexible design integration.

Halogen-free option available for green design needs. Manufactured in China ensuring quality and consistency. Explore more high-quality electronic components and capacitors from TDK at EnvMart to meet your industrial and commercial design requirements.
