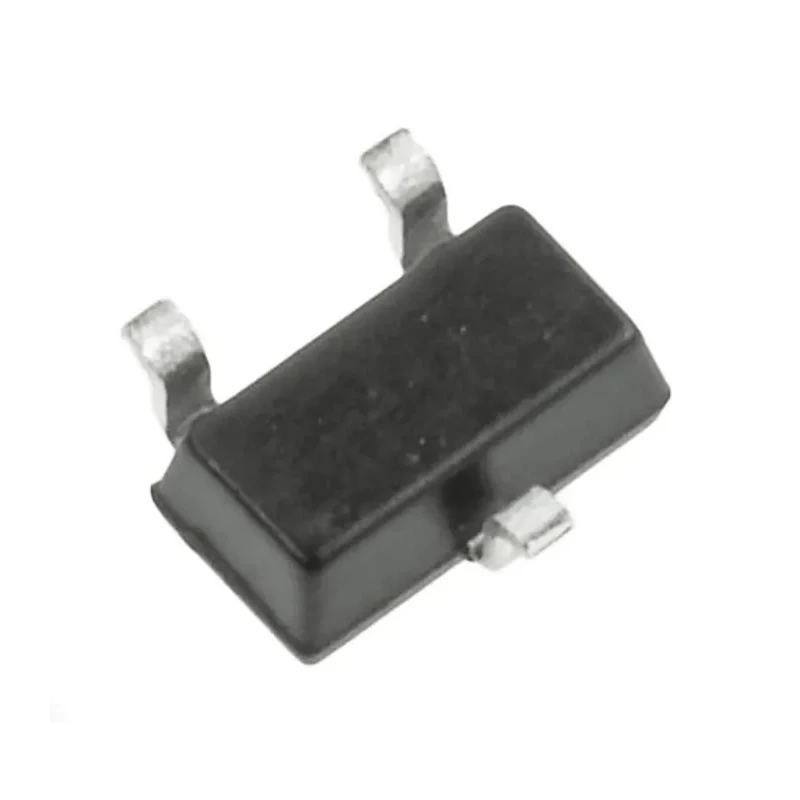

DiodesZetex DMP Type P-Channel MOSFET, 1.5 A, 20 V, Enhancement Mode, 3-Pin SC-70 Package DMP2240UW-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1mm |
| Length | 2.2mm |
| Model | DMP2240UW-7 |
| Width | 1.35mm |
| Mount Type | Surface |
| Series | DMP |
| Maximum Operating Temperature | 150°C |
| Package Type | SC-70 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Channel Type | Type P |
| Maximum Continuous Drain Current Id | 1.5A |
| Maximum Drain Source Voltage Vds | 20V |
| Maximum Drain Source Resistance Rds | 240mΩ |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 250mW |
| Maximum Gate Source Voltage Vgs | 12V |
| Forward Voltage Vf | -0.9V |
Key Features
- Handles a continuous drain current of up to 1.5 Amps reliably.
- Maximum drain-source voltage rating is 20 Volts for safe operation.
- Utilizes enhancement mode operation for switching applications.
- Packaged in a small 3-pin SC-70 surface mount footprint for PCB space savings.
- Features low on-resistance of 240 milliohms for efficient conduction.
- Supports operating temperatures from -55°C to 150°C for versatility.
- Maximum power dissipation rating of 250 milliwatts.
- Designed to meet automotive AEC-Q101 standard for quality assurance.
Product Description
The DiodesZetex DMP2240UW-7 is a P-Channel MOSFET transistor engineered for reliable switching and amplification in compact electronic applications. Operating with a maximum continuous drain current of 1.5 A and a drain-source voltage rating of 20 V, this device suits low voltage power control circuits and signal processing.
Incorporating enhancement mode channel operation, this MOSFET features a surface mount 3-pin SC-70 package ideal for space-critical PCB designs. Its low maximum drain-source resistance of 240 mΩ ensures energy-efficient conduction.
The package dimensions are 2.2 mm length, 1.35 mm width, and 1 mm height, making it well-suited for dense circuit board layouts.
The device supports a wide temperature range from -55°C up to 150°C, allowing use in demanding industrial and automotive environments. Compliance with the AEC-Q101 automotive standard further certifies its robustness.
Continuous drain current rating of 1.5 Amps. Drain-source voltage of 20 Volts maximum. Enhancement channel mode for reliable switching. Packaged in compact 3-pin SC-70 form factor. Low on-resistance rated at 240 mΩ. Wide operating temperature from -55°C to 150°C.
Maximum power dissipation of 250 mW. Automotive standard AEC-Q101 qualified.
This P-Channel MOSFET is extensively used in electronics manufacturing, automotive control systems, power management circuits, and various industrial electronic applications requiring efficient low-voltage switching.
Explore more semiconductor components and MOSFET devices on EnvMart to complete your design and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current for the DMP2240UW-7 is 1.5 Amps.
This model has a maximum drain-source voltage rating of 20 Volts.
The DMP2240UW-7 features a low maximum drain-source resistance of 240 milliohms.
It supports an operating temperature range from -55°C to 150°C.
This device is packaged in a compact 3-pin SC-70 surface mount package.
The maximum power dissipation rating is 250 milliwatts.
It is designed to meet the AEC-Q101 automotive standard for quality assurance.
The forward voltage for the DMP2240UW-7 is -0.9 Volts.
The height of the SC-70 package is 1 mm.
The width is 1.35 mm and the length is 2.2 mm.
This model has a pin count of 3.
It utilizes an enhancement mode channel for reliable switching applications.
