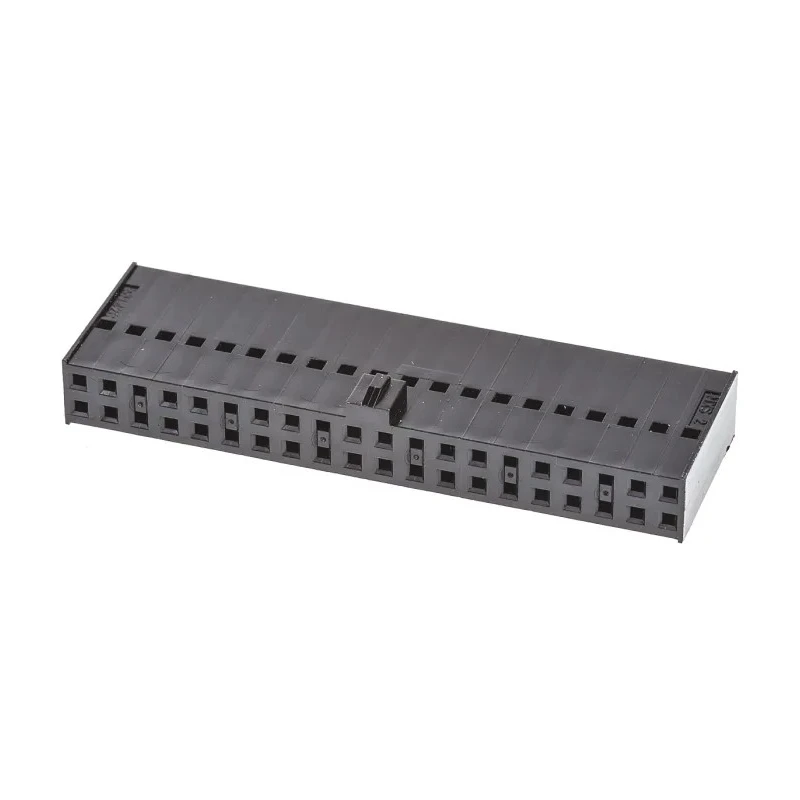

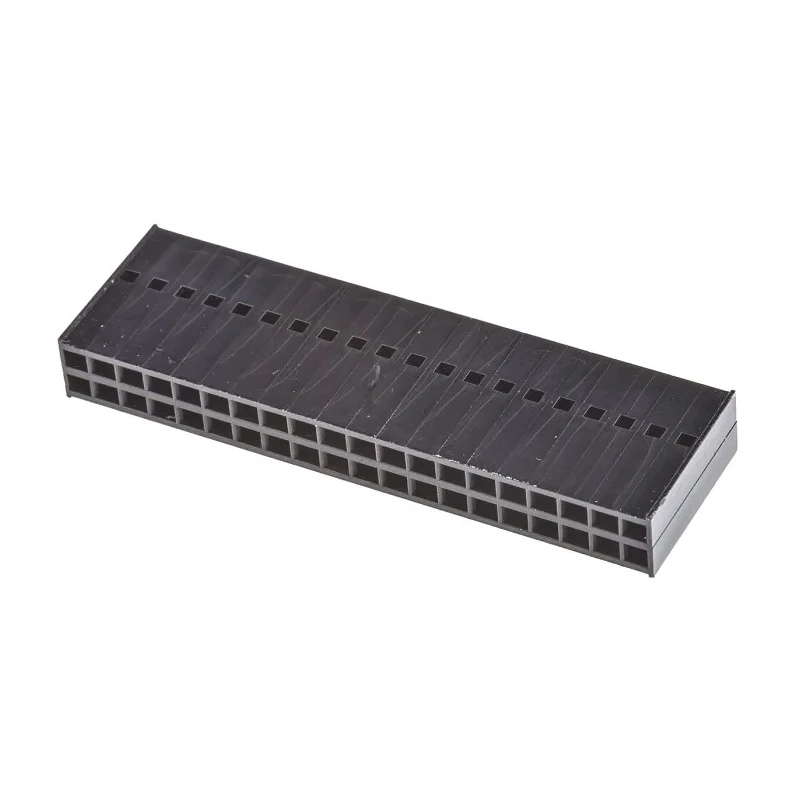

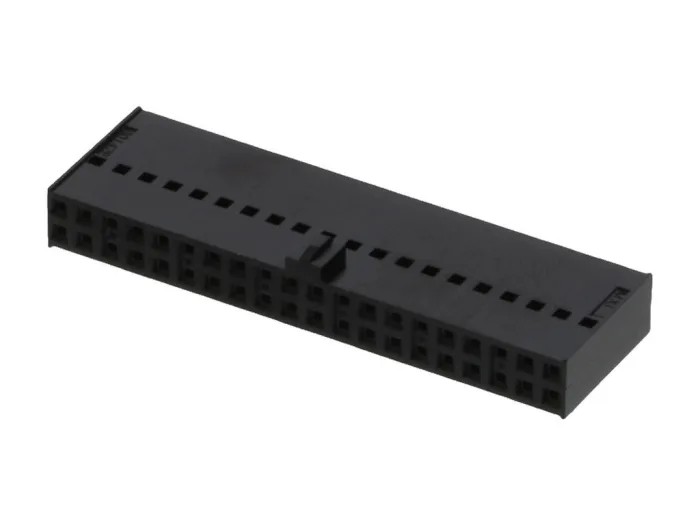

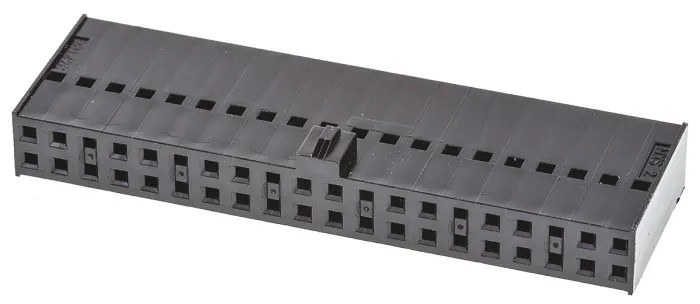

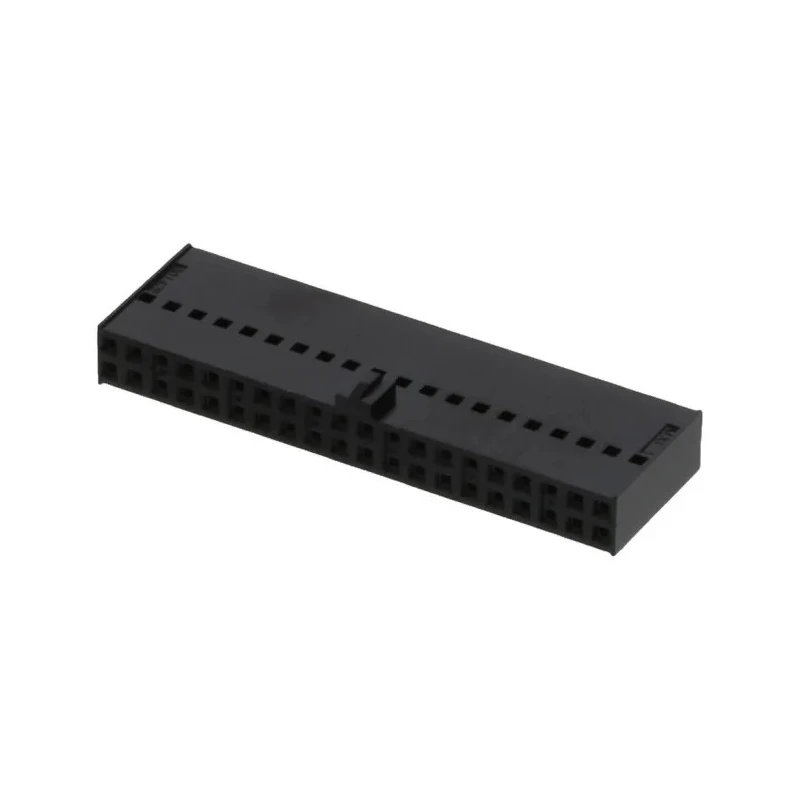

Molex C-Grid III Female Connector Housing 2.54 mm Pitch 40 Way 2 Row Straight 90142-0040
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 50.8mm |
| Width | 7.72mm |
| Mount Type | Cable |
| Housing Material | PBT |
| Series | C-Grid III |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| For Use With | C-Grid III Connector |
| Number of Contacts | 40 |
| Connector Gender | Female |
Key Features
- Features a polarised-to-mating design to prevent incorrect alignment.
- Constructed with PBT housing material for insulation and durability.
- Compact dimensions 50.8 mm length by 7.72 mm width and 15.24 mm depth for space-efficient installations.
- Accommodates up to 40 contacts in a dual-row configuration for extensive wiring needs.
- Suitable for use with C-Grid III connector systems and cable mounting.
- Provides a lock-to-mating feature for steady and secure connections.
- Ideal for control panels, robotics systems, and aerospace engineering applications.
Product Description
Molex 90142-0040 is a female connector housing from the C-Grid III series, featuring a 2.54 mm pitch with a 40-way, 2-row straight design. This connector housing is tailored for professional electronic and industrial applications where secure and precise cable connections are essential.
The housing is manufactured from durable PBT material offering excellent insulation properties to reduce electrical shock risks. Its compact external dimensions of 50.8 mm length, 7.72 mm width, and 15.24 mm depth enable it to fit neatly into complex control panel setups or instrumentation modules. The dual-row configuration allows accommodation of 40 contacts, ensuring ample wiring capacity for sophisticated circuitry.
Designed to mate with the C-Grid III crimp terminal range, this connector housing includes a polarised-to-mating feature that prevents incorrect alignment during installation, enhancing reliability. Its lock-to-mating mechanism secures connections, reducing the risk of disconnection in vibration-prone environments.
Applications span industrial control systems, robotics, and aerospace engineering where compact, reliable interconnections are critical. The precision 2.54 mm pitch supports efficient installation of small conductors while maintaining signal integrity.
Polarised-to-mating feature prevents misalignment. Robust PBT material housing insulates and protects contacts. Compact form factor to fit tight spaces. Supports up to 40 contacts in dual-row arrangement. Compatible with C-Grid III connector systems for flexible use.
Lock-to-mating design ensures steady connections. Ideal for industrial, aerospace, and robotics applications.
This Molex connector housing is part of a comprehensive interconnection system providing modularity and extensive application possibilities in electronic manufacturing and assembly. For additional design and integration resources, consult Molex technical documentation or design tools compatible with the C-Grid III system.
Explore a wide range of Connector Housings and components to suit your electronic and power distribution needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 2.54 mm.
It can accommodate up to 40 contacts in a dual-row configuration.
The external dimensions are 50.8 mm in length, 7.72 mm in width, and 15.24 mm in depth.
The housing is constructed from PBT material, which provides insulation and durability.
It is suitable for applications in industrial control systems, robotics, and aerospace engineering.
It features a polarised-to-mating design that prevents misalignment during installation.
It includes a lock-to-mating mechanism that ensures steady and secure connections, reducing the risk of disconnection.
The orientation of this connector housing is straight.
The mounting type for this connector housing is cable.
Yes, it is designed for use with C-Grid III connector systems.
The country of origin for this connector housing is India.
This connector housing has 2 rows.
