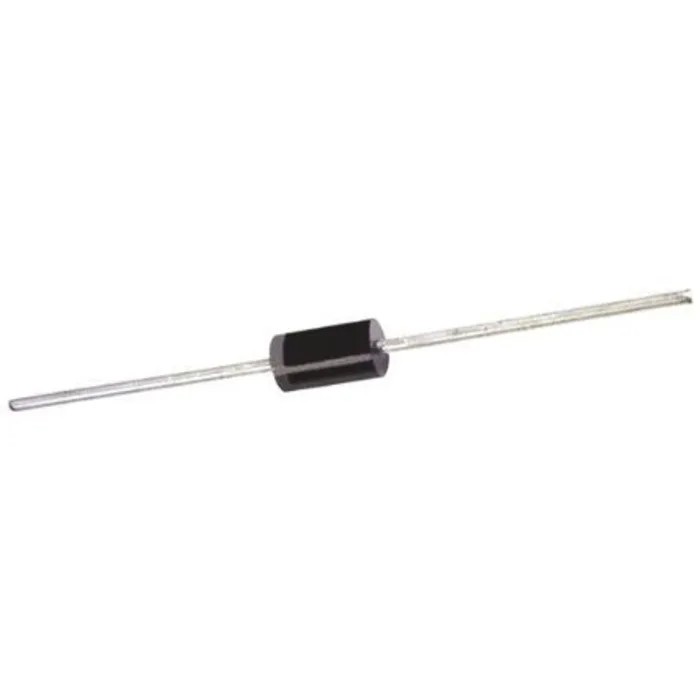

Vishay 50 V 3 A Schottky Diode 2-Pin DO-201AD SB350-E3/54

Vishay SB350-E3/54 Schottky Diode is a high performance semiconductor device designed to provide efficient rectification with low forward voltage and fast switching capabilities. Featuring a through-hole mount with a robust DO-201AD package, it is engineered for reliable operation in industrial, electronic, and power management applications requiring 50 V maximum reverse voltage and 3 A continuous forward current.

With an operating temperature range from -65°C to 150°C, this diode delivers durability and stability even under extreme environmental conditions. The diode exhibits a low maximum forward voltage drop of 680 mV which reduces power loss and heat generation, making it suitable for circuits demanding energy efficiency and reliability.

This Vishay Schottky diode also includes a peak non-repetitive forward surge current rating of 120 A to handle transient surge conditions. It is a single diode package with 2 pins and compact dimensions of 9.5 mm length and 5.3 mm diameter, facilitating installation in dense electronic assemblies.

Ideal applications for the SB350-E3/54 diode include power supplies, voltage clamping circuits, high frequency rectifiers, and automotive electronics. The ultrafast reverse recovery time characteristic of Schottky diodes ensures minimal switching losses, perfect for high-speed switching environments.

High performance Schottky rectifier suitable for fast switching and low power loss. Package type DO-201AD with through-hole mounting for easy PCB integration. Maximum continuous forward current of 3A with low forward voltage drop of 680 mV.

Operating temperature range from -65°C up to 150°C ensuring durability in harsh conditions. Peak reverse repetitive voltage of 50 V and peak forward surge current of 120 A. Compact diode with dimensions length 9.5 mm and diameter 5.3 mm for space-sensitive electronic circuits.

Single diode configuration with 2 pins, optimized for efficient rectification tasks.

Compatible with various industrial, commercial, and laboratory electronic systems, the Vishay SB350-E3/54 ensures reliable performance and quality manufacturing from a trusted semiconductor leader. Explore more Vishay semiconductor products on EnvMart for your electronic design and manufacturing needs.
