| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 0.7mm |
| Length | 1.3mm |
| Model | BAT54XV2T5G |
| Width | 0.8mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Package Type | SOD-523 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 2μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 600mA |
| Maximum Forward Voltage Vf | 800mV |
| Peak Reverse Recovery Time trr | 5ns |

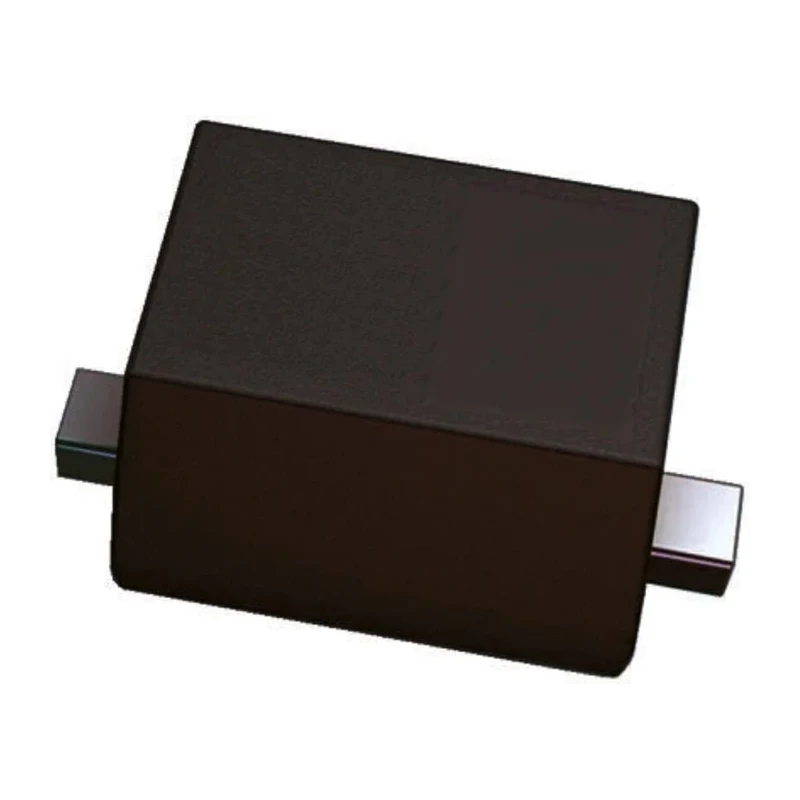

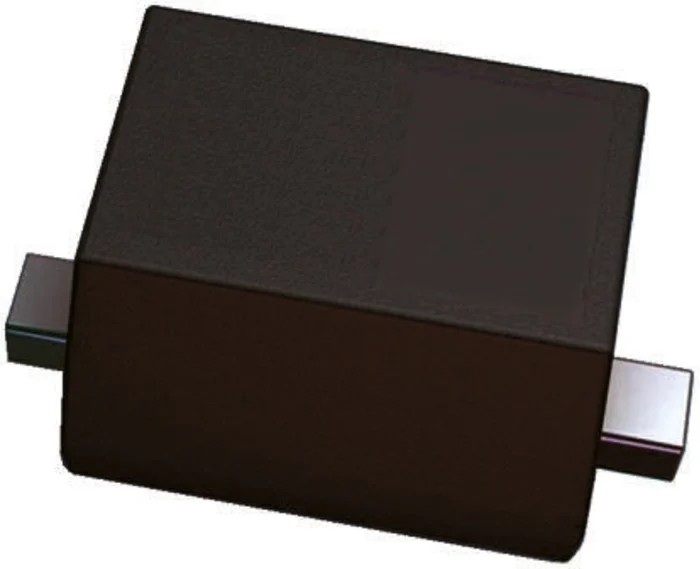

onsemi BAT54XV2T5G is a Schottky diode designed for use in electronic circuits requiring low-voltage, high-frequency rectification and polarity protection. This 2-pin diode features a compact SOD-523 surface mount package with dimensions 1.3 mm length, 0.8 mm width, and 0.7 mm height, offering space-saving integration on PCB assemblies.
Rated for a maximum continuous forward current of 200 mA and a peak reverse voltage of 30 V, the BAT54XV2T5G provides efficient rectification with a low forward voltage drop of 800 mV. Its peak non-repetitive forward surge current capability of 600 mA enhances its robustness for transient events. The ultra-fast peak reverse recovery time of 5 ns enables usage in high-speed switching power applications.
The diode is designed to operate reliably across a wide temperature range from -55°C to 125°C, suitable for industrial, consumer electronics, and automotive-related environments. The device is epoxy moulded for mechanical protection and lightweight packaging (approximately 11.7 mg), suitable for automated manufacturing processes.
Although not automotive qualified (AEC-Q101), onsemi designs this diode with industrial standards in mind. It is lead-free and Pb-free to meet current environmental regulations. This diode is ideal for compact rectification, freewheeling, polarity protection, and low-voltage power conversion applications in industrial, laboratory, and commercial electronics.
Surface mount SOD-523 package suitable for compact PCB layouts. Maximum continuous forward current is 200 mA for reliable low-current applications. Peak reverse repetitive voltage rating of 30 V ensures protection in low voltage circuits.
Low forward voltage drop of 800 mV improves power efficiency. Extremely fast recovery time of 5 ns supports high-frequency switching applications. Wide operating temperature range from -55°C to 125°C for diverse environments.
Lightweight and epoxy moulded case ensures durability and ease of automated assembly. Lead-free and RoHS compliant, suitable for environmentally responsible designs.
Explore onsemi Schottky diodes and other semiconductor components in the Electronics & Electricals category at EnvMart for industrial power electronics and circuit design solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
