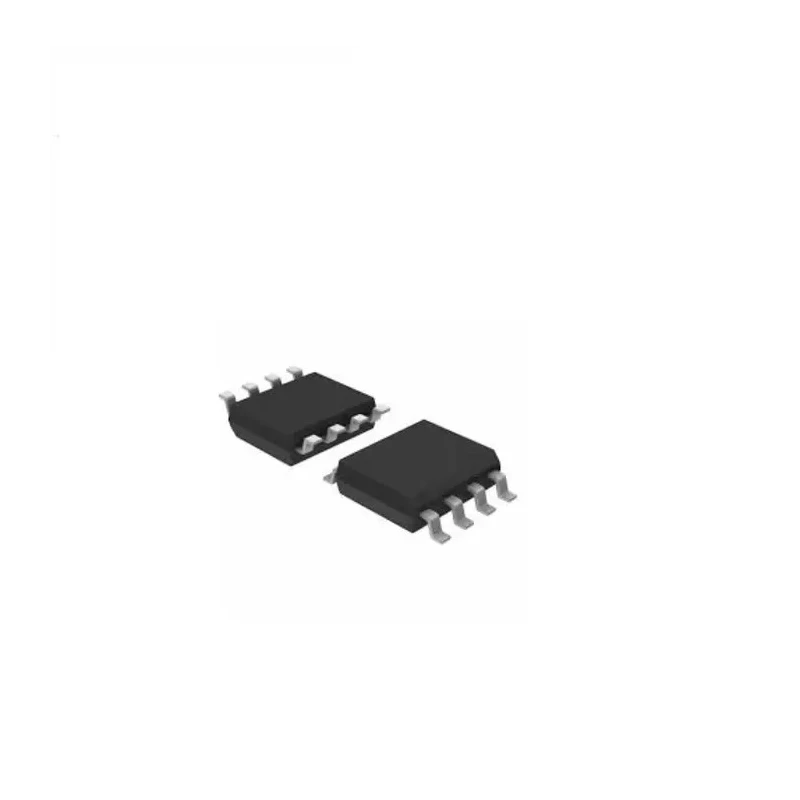

Microchip MOSFET Gate Driver 6A Output Current 8-Pin SOIC Package 18V TC4420COA
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | TC4420COA |
| Series | TC4420 |
| Output Current | 6A |
| Maximum Operating Temperature | 70°C |
| Package Type | SOIC |
| Minimum Operating Temperature | 0°C |
| Rise Time | 35ns |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Minimum Supply Voltage | 18V |
| Number of Drivers | 1 |
| Fall Time | 25ns |
| Driver Type | MOSFET |
Key Features
- Non-inverting MOSFET driver fabricated in CMOS technology for low power consumption and high efficiency.
- Supports TTL/CMOS compatible inputs that tolerate input voltages from - 5 V to VDD + 0.3 V without damage.
- Rail-to-rail output swing ensures optimal drive voltage margin during power-up and power-down sequences.
- Fast propagation delay of 55 ns typical with rise and fall times of 35 ns and 25 ns respectively.
- Latch-up protected and capable of withstanding over 1.5A reverse output current for robust operation.
- ESD protected up to 4 kV and matched rise/fall times of 25 ns enhance reliability.
- Wide input supply voltage range from 4.5 V to 18 V and high capacitive load drive capability up to 10,000 pF.
- Operational temperature range from 0°C to 70°C suitable for industrial and commercial use.
Product Description
Microchip TC4420COA is a high-performance MOSFET gate driver designed to deliver a peak output current of 6A through a single output in an 8-Pin SOIC package, operating at a supply voltage of 18V. This non-inverting driver uses CMOS fabrication technology to achieve lower power consumption and enhanced efficiency compared to bipolar drivers. It is equipped with TTL/CMOS compatible inputs capable of handling input voltages ranging from - 5 V to VDD + 0.3 V, eliminating the need for external level shifting circuitry.
The output stage delivers rail-to-rail voltage swing, providing enhanced drive voltage margin during power sequencing phases. The propagation delay time is typically 55 ns, with output rise and fall times of 35 ns and 25 ns respectively into a 2500 pF load, allowing for fast switching performance.
Designed for robustness, the TC4420COA is latch-up protected and can withstand reverse output currents exceeding 1.5 amperes. It features an ESD protection level of 4 kV, ensuring reliable operation in environments prone to electrostatic discharge. The driver is capable of handling capacitive loads up to 10,000 pF, suitable for driving large MOSFET gates.
This gate driver operates reliably within a temperature range of 0°C to 70°C and complies with RoHS environmental standards. Typical applications include industrial power management, motor control, and switching power supplies within electronic and electrical systems.
Non-inverting CMOS MOSFET gate driver with 6A peak output current. TTL/CMOS tolerant inputs covering wide input voltage range. Rail-to-rail output voltage for enhanced drive margin. Fast switching with 55 ns propagation delay and matched rise/fall times.
Latch-up protected and ESD protected to 4 kV. High capacitive load driving capability suitable for power MOSFETs. Wide operating temperature range and RoHS compliant.
This product is ideal for industrial, commercial, and power electronics applications requiring reliable gate driving with efficient power handling. Explore more MOSFET Gate Drivers and related components on EnvMart for comprehensive solutions tailored to your electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TC4420COA has a peak output current of 6A.
This model operates within a temperature range of 0°C to 70°C.
The rise time is 35 ns and the fall time is 25 ns.
It operates with a minimum supply voltage of 4.5V and a maximum of 18V.
This model is packaged in an 8-Pin SOIC format.
Yes, the TC4420COA complies with RoHS environmental standards.
It supports TTL/CMOS compatible inputs that tolerate input voltages from -5V to VDD + 0.3V without damage.
The typical propagation delay is 55 ns.
It is capable of driving capacitive loads up to 10,000 pF.
It is latch-up protected and ESD protected up to 4 kV, ensuring robust operation.
This model includes one driver.
The output stage has matched rise and fall times of 35 ns and 25 ns respectively.
